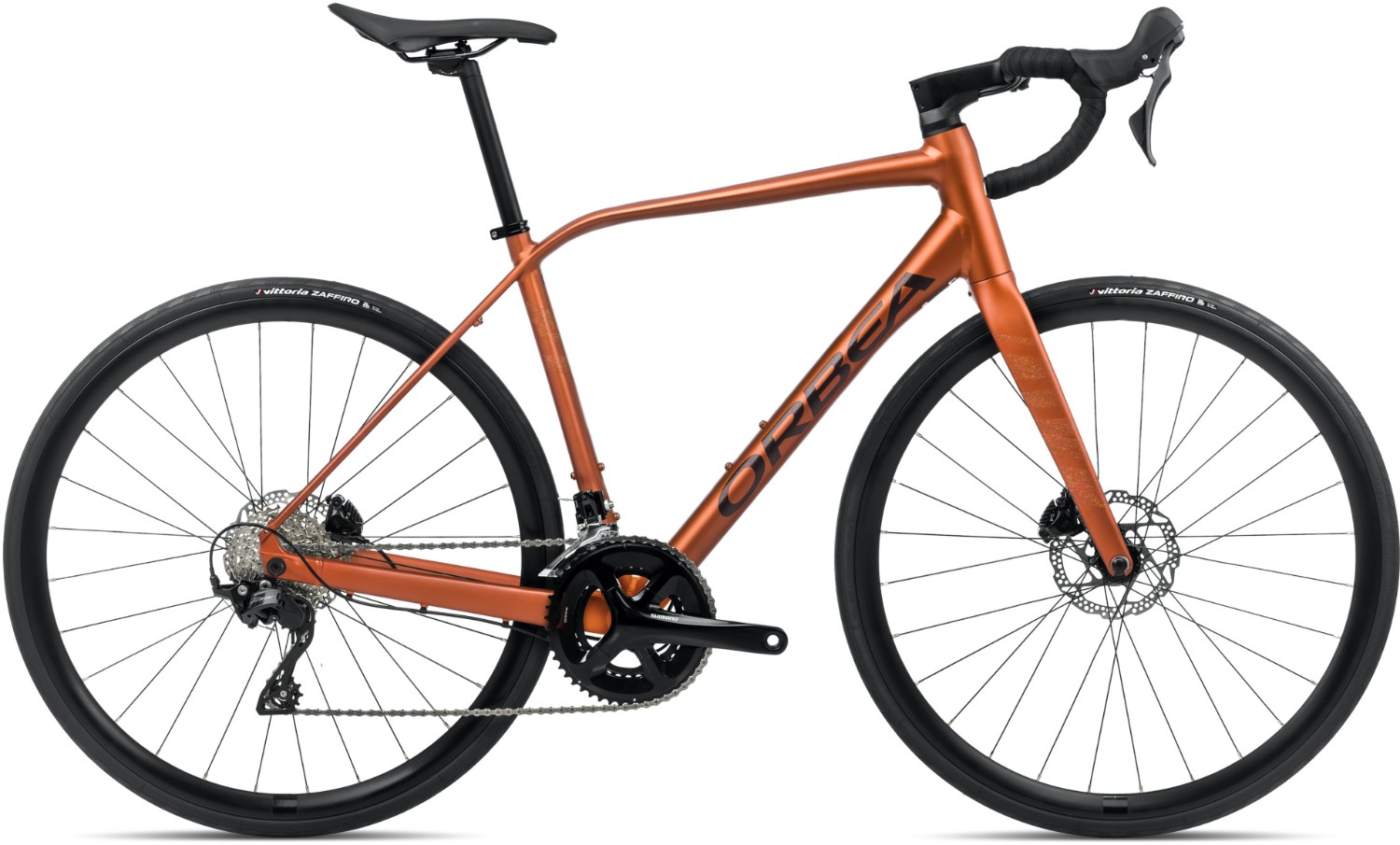

Orbea Avant H30 2024 - Road Bike
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.
The new Avant receives the same level of design attention as our carbon frames - The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system. |
| Fork | Orbea carbon 2021, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | OC Road Performance RP21, -6º |
| Bars | OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125 |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Front Mech | Shimano 105 R7100 |
| Rear Mech | Shimano 105 R7100 |
| Shifters | Shimano R7120 |
| Speed | 12 |
| Rims | Alloy, Tubeless, 700c, 19c, 28H |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Solid |
| Front Tyre | Vittoria Zafiro V Rigid bead 700x28c |
| Rear Tyre | Vittoria Zafiro V Rigid bead 700x28c |
| Seat Post | Alloy, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chainset | Shimano RS520 34x50t |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
Orbea Avant Size Chart
| Size | Height cm | Height feet & inches |
|---|---|---|
| 47 | 155-160 | 5'1"-5'3" |
| 49 | 160-166 | 5'3"-5'5" |
| 51 | 167-172 | 5'5"-5'7" |
| 53 | 173-179 | 5'8"-5'10" |
| 55 | 180-185 | 5'10"-6'0" |
| 57 | 186-191 | 6'1"-6'3" |
| 60 | 192-207 | 6'4"-6'9" |
Read our bike size guide for more information on sizing.
