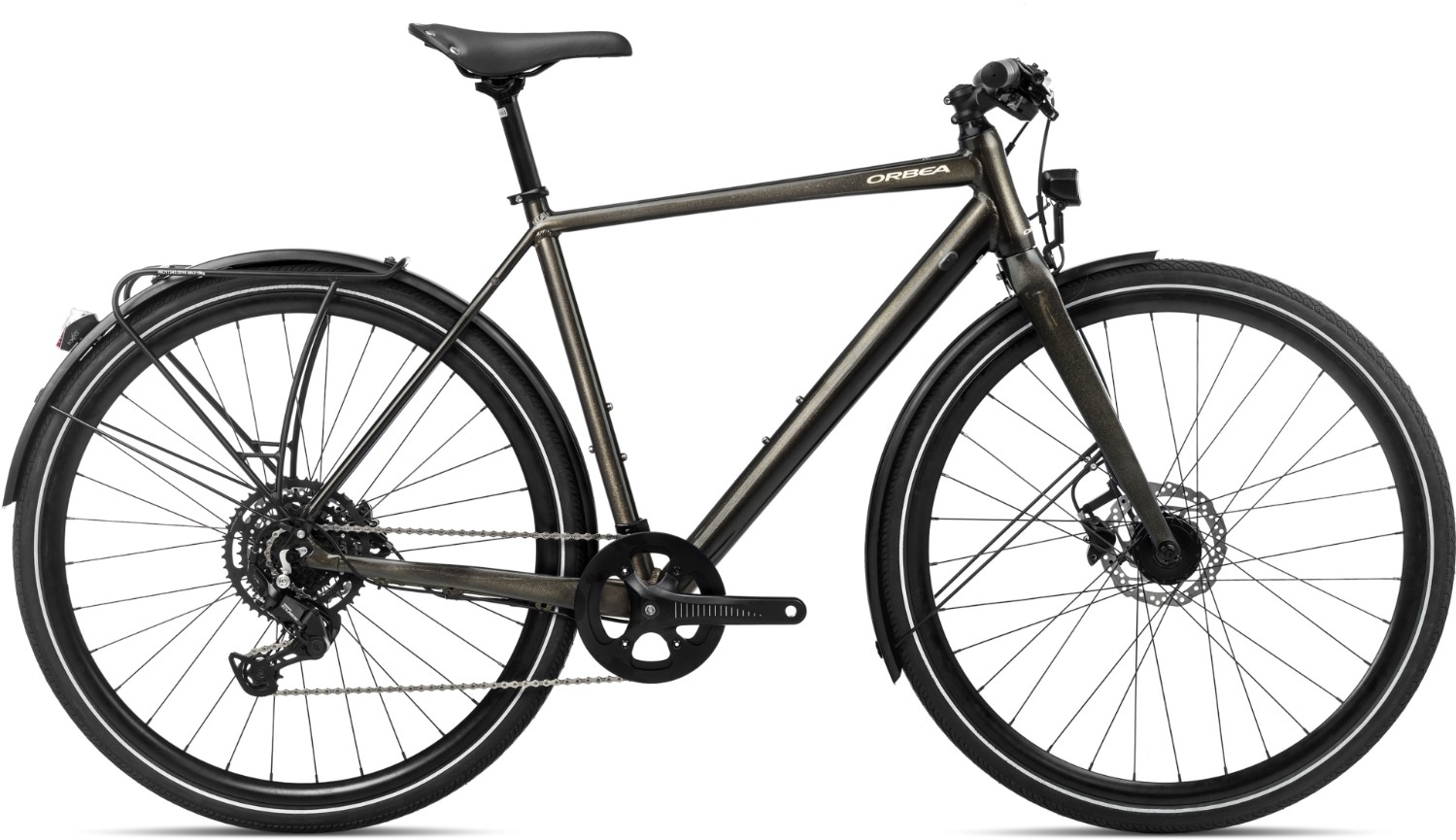

Orbea Carpe 15 2024 - Hybrid Sports Bike
SEIZE THE DAY, ANY DAY.
There is a beauty to the handlebars, the smoothness of a gear change, and the parts working in harmony. You'll like your city streets even more while moving over them on two wheels. Carpe delivers the freedom you've been waiting for. Throw a leg over and enjoy.
Carpe is Quality
- Disc brakes
- Orbea lifetime warranty
- High quality groupsets
- Lightweight alloy frame and fork
- Lightweight aluminium or carbon fork
Carpe is Fun
- Colourful frames and rims
- Balanced sport geometry
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
Fork | Speed 400mm Alloy Flat mount |
Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
Front Brake | Shimano MT200 Hydraulic Disc |
Rear Brake | Shimano MT200 Hydraulic Disc |
Rear Mech | Shimano Cues U4000 GS Shadow |
Shifters | Shimano Cues SL-U4000 |
Speed | 9 |
Rims | Alloy, Tubeless, 700c, 21c, 32H |
Seat Post | Alloy, 27.2mm, Setback 0 |
Saddle | Fortune QF-3094 |
Pedals | VP-229 Black with reflectors |
Orbea Carpe Size Chart
Size |
Height (cm) |
Height (in) |
XS |
150 - 160 |
4' 11" - 5' 3" |
S |
160 - 170 |
5' 3" - 5' 7" |
M |
170 - 180 |
5' 7" - 5' 11" |
L |
180 - 190 |
5' 11" - 6' 3" |
XL |
190 - 200 |
6' 3" - 6' 7" |
What size frame do I need if I am between sizes? - read here
Orbea Carpe Geometry Chart
Size |
XS |
S |
M |
L |
XL |
Seat Tube Length (mm) |
430 |
480 |
525 |
555 |
580 |
Top Tube Length (mm) |
521 |
546 |
559 |
580 |
601 |
Head Tube Length (mm) |
109 |
127 |
150 |
170 |
200 |
Chainstay Length (mm) |
435 |
435 |
435 |
435 |
435 |
Bottom Bracket Height (mm) |
281 |
281 |
283 |
283 |
285 |
Bottom Bracket Drop (mm) |
70 |
70 |
68 |
68 |
66 |
Wheelbase (mm) |
1021 |
1037 |
1052 |
1063 |
1075 |
Head Angle |
71° |
71° |
71° |
71.5° |
72° |
Seat Angle |
75° |
74° |
74° |
73.5° |
73° |
Standover (mm) |
738 |
768 |
800 |
824 |
852 |
Reach (mm) |
378 |
388 |
395 |
405 |
410 |
Stack (mm) |
535 |
552 |
571 |
592 |
625 |
Fork Length (mm) |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
