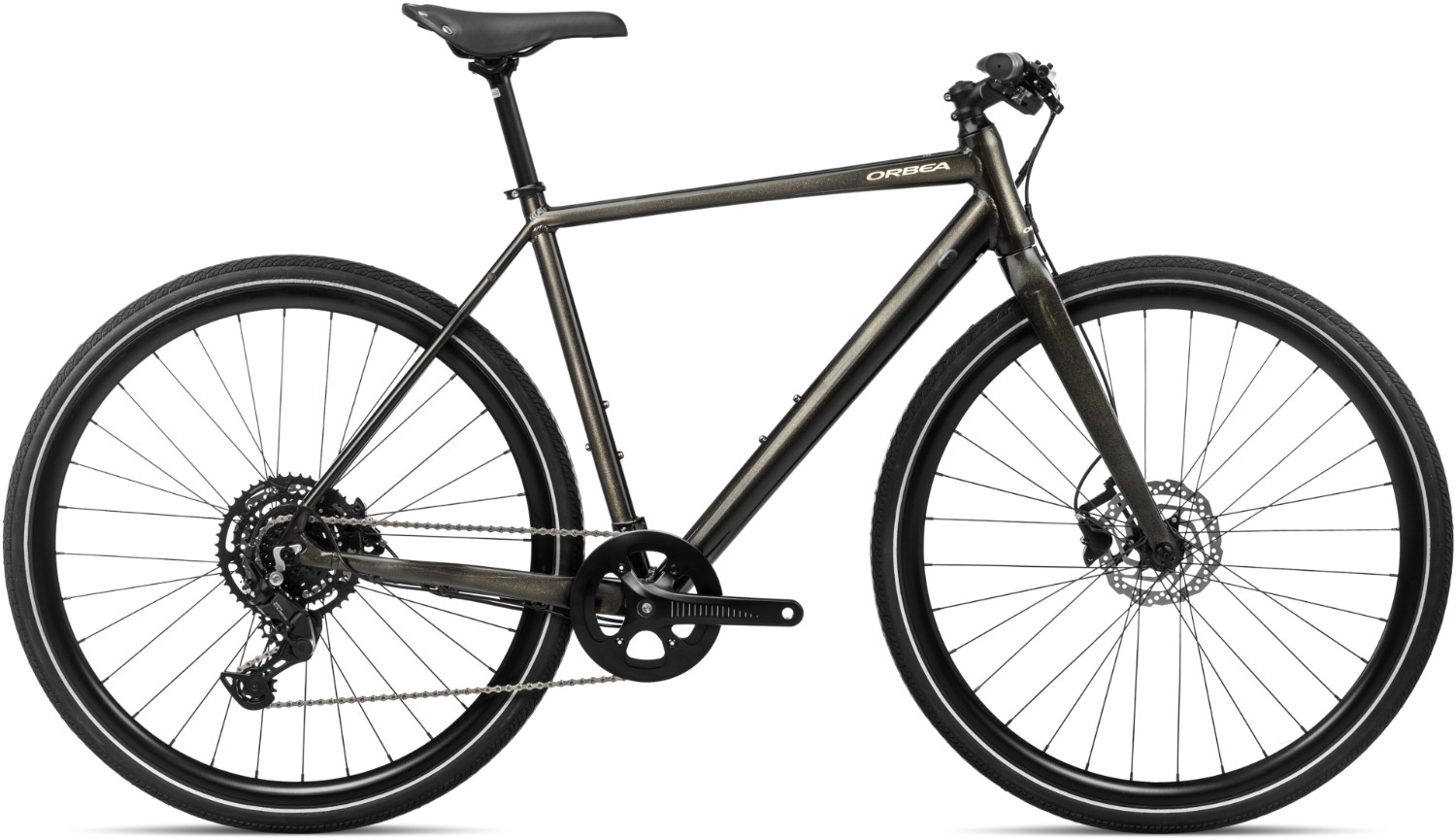

Orbea Carpe 20 2024 - Hybrid Sports Bike
With its lightweight aluminum frame and reliable disc brakes, the Carpe 20 provides the freedom and confidence you need to navigate bustling city streets with ease.
Key Features:
- Frame: Orbea Urban Speed aluminum 6000 frame with flat-mount disc brakes, carrier, and mudguard compatibility for versatile urban riding.
- Front Fork: Speed 400mm alloy fork with flat-mount disc brake for responsive and agile handling.
- Drivetrain: Shimano Cues U4000 rear derailleur and Shimano Cues SL-U4000 shifters for reliable and efficient gear changes.
- Brakes: Shimano MT200 hydraulic disc brakes offer powerful and consistent braking performance in all weather conditions.
- Wheels and Tyres: Alloy rims with 700c diameter, 21c width, and Fortune QF-3094 tyres for a smooth and stable ride.
- Other Standout Feature: Safety lock on the rear hub provides added security when parking in urban areas.
- Available with 0% APR finance.
The Orbea Carpe 20 is your ticket to enjoyable and hassle-free city cycling. Whether you're commuting to work, running errands, or simply exploring your urban environment, this bike delivers the quality, comfort, and style you need to make every ride a pleasure.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
Fork | Speed 400mm Alloy Flat mount |
Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
Front Brake | Shimano MT200 Hydraulic Disc |
Rear Brake | Shimano MT200 Hydraulic Disc |
Rear Mech | Shimano Cues U4000 GS Shadow |
Shifters | Shimano Cues SL-U4000 |
Speed | 9 |
Rims | Alloy, Tubeless, 700c, 21c, 32H |
Rear Hub | Safety Lock |
Seat Post | Alloy, 27.2mm, Setback 0 |
Saddle | Fortune QF-3094 |
Pedals | VP-229 Black with reflectors |
Orbea Carpe Size Chart
Size |
Height (cm) |
Height (in) |
XS |
150 - 160 |
4' 11" - 5' 3" |
S |
160 - 170 |
5' 3" - 5' 7" |
M |
170 - 180 |
5' 7" - 5' 11" |
L |
180 - 190 |
5' 11" - 6' 3" |
XL |
190 - 200 |
6' 3" - 6' 7" |
What size frame do I need if I am between sizes? - read here
Orbea Carpe Geometry Chart
Size |
XS |
S |
M |
L |
XL |
Seat Tube Length (mm) |
430 |
480 |
525 |
555 |
580 |
Top Tube Length (mm) |
521 |
546 |
559 |
580 |
601 |
Head Tube Length (mm) |
109 |
127 |
150 |
170 |
200 |
Chainstay Length (mm) |
435 |
435 |
435 |
435 |
435 |
Bottom Bracket Height (mm) |
281 |
281 |
283 |
283 |
285 |
Bottom Bracket Drop (mm) |
70 |
70 |
68 |
68 |
66 |
Wheelbase (mm) |
1021 |
1037 |
1052 |
1063 |
1075 |
Head Angle |
71° |
71° |
71° |
71.5° |
72° |
Seat Angle |
75° |
74° |
74° |
73.5° |
73° |
Standover (mm) |
738 |
768 |
800 |
824 |
852 |
Reach (mm) |
378 |
388 |
395 |
405 |
410 |
Stack (mm) |
535 |
552 |
571 |
592 |
625 |
Fork Length (mm) |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
