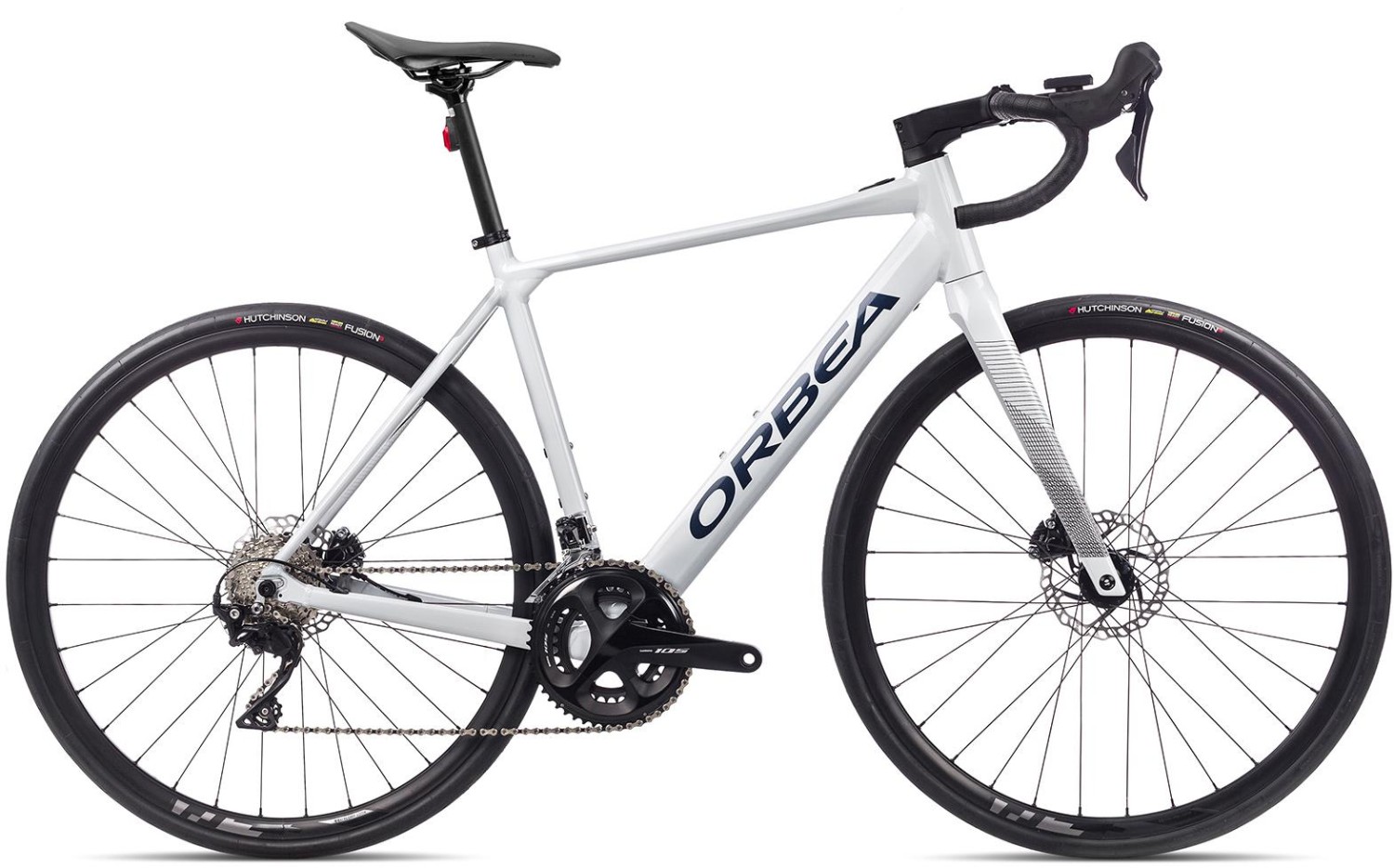

Orbea Gain D30 2022 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. |
Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC1 31.8mm interface -6º |
Bars | OC2 Road, reach 80mm, drop 125mm |
Front Brake | Shimano R7070 Hydraulic Disc |
Rear Brake | Shimano R7070 Hydraulic Disc |
Front Mech | Shimano 105 R7000 |
Rear Mech | Shimano 105 R7000 GS |
Shifters | Shimano ST-7020 |
Speed | 22 |
Rims | Ready GR |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
Front Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Rear Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Seat Post | OC 27.2 Offset 0, for integrated light |
Saddle | Fizik Aliante R5 |
Chainset | Shimano 105 R7000 34x50t |
Chain | KMC X11 |
Cassette | Shimano 105 R7000 11-32t 11-Speed |
Battery Size (WH) | Ebikemotion 36V/6.9A 248Wh ANT+ |
Motor | Ebikemotion X35 Plus 25kmh |
User Interface | OC monochrome ANT+ LEV |
Orbea Gain 2022 Size Chart
SIZE |
HEIGHT ( CM ) |
HEIGHT ( IN ) |
XS |
150 - 160 |
59.1" - 63.0" |
S |
160 - 170 |
63.0" - 66.9" |
M |
170 - 180 |
66.9" - 70.9" |
L |
180 - 190 |
70.9" - 74.8" |
XL |
190 - 200 |
74.8" - 78.7" |
Orbea Gain D Series 2022 Size Chart
SIZE |
XS |
S |
M |
L |
XL |
SEAT TUBE (C-T) |
460 |
485 |
515 |
545 |
575 |
TOP TUBE (EFF) |
507 |
530 |
547 |
571 |
589 |
HEAD TUBE |
97 |
122 |
146 |
172 |
196 |
CHAINSTAY |
420 |
||||
BB HEIGHT |
267 |
||||
BB DROP |
74 |
||||
WHEELBASE |
988 |
1002 |
1017 |
1036 |
1050 |
HEAD ANGLE |
71 |
71.5 |
72 |
72 |
72.5 |
SEAT ANGLE |
75 |
74.5 |
74.5 |
74 |
74 |
STANDOVER |
731.07 |
749.5 |
773.83 |
798.36 |
817.55 |
REACH |
366 |
377 |
388 |
399 |
410 |
STACK |
525 |
550 |
575 |
600 |
625 |
FORK LENGTH |
400 |
||||
RAKE |
50 |
||||
WHEEL SIZE |
682 |
What size frame do I need if I am between sizes? - read here
