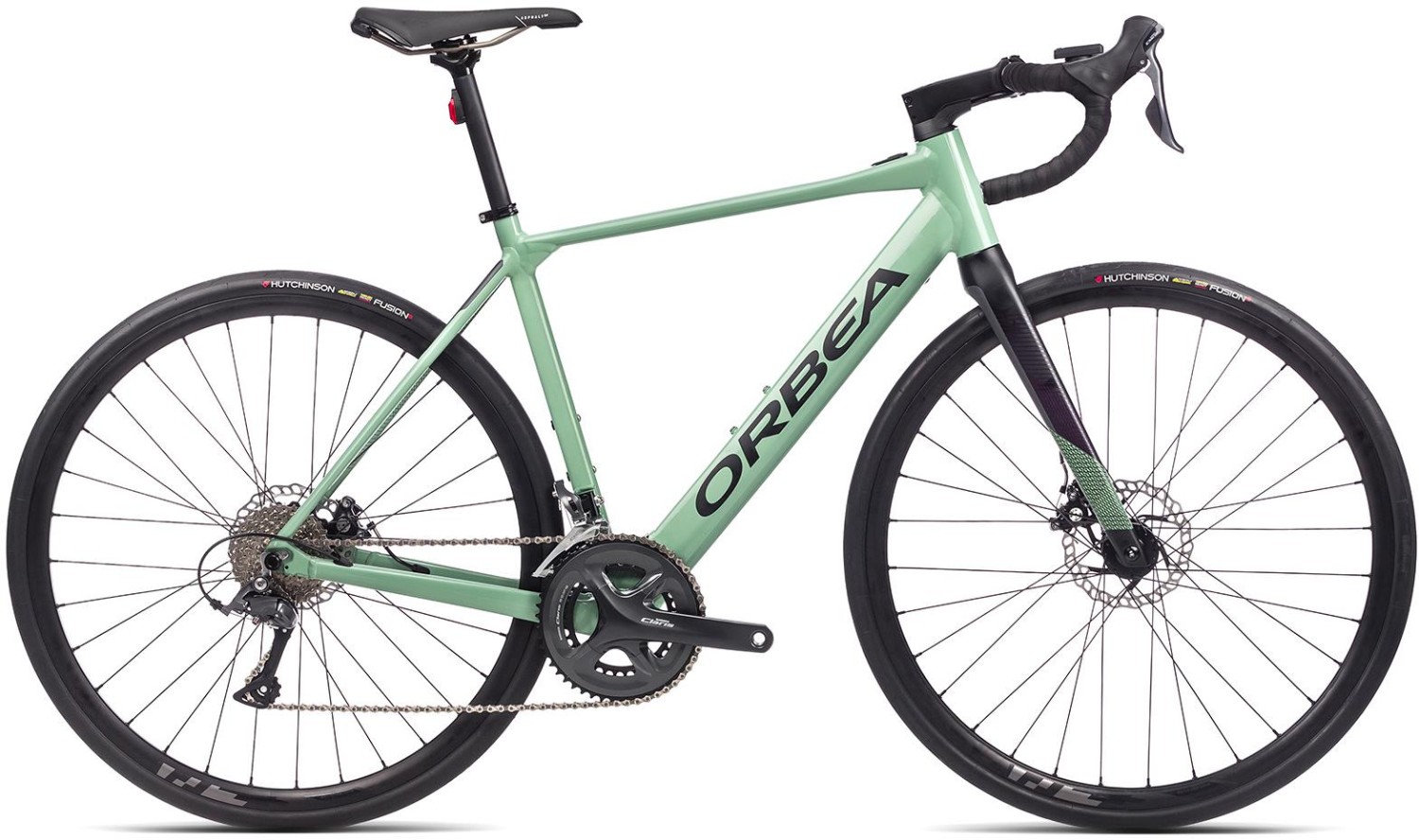

Orbea Gain D50 2021 - Electric Road Bike
We designed Gain to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road.
Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it's just you, Gain and hours of road ahead.
The Gain motor is the heart of the bike and the key component behind the Enough Energy concept. Its sophisticated transmission system provides smooth, balanced and reliable pedaling assistance in levels that allow you to improve your rides without making it too easy. And since the motor is located on the wheel axle, not the bottom bracket, you’ll enjoy pedaling without resistance when the power assist is off. The Gain’s torque simulation algorithm allows the bike to match power input per pedal stroke in order to generate more power when it’s needed and conserve it when it’s not.
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain’s Enough Range battery provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment. The entire Orbea road line offers this clean solution with OC Integrated stems and cable covers.
It’s like magic – Fully integrated lighting is just one more feature to enhance your ride. Gain is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Gain is ready for the road.
The seatpost clamp of each Gain Carbon is integrated smoothly into the frame, decreasing the likelihood of contamination and increasing aerodynamics. It also looks great, too.
Gain has only one external wire connection, allowing the rear wheel to be removed from the bike. This cable is tucked neatly under the chainstay and hidden with a smoothly-integrated cover. The battery access port under the BB is similarly invisible, and the headset cover blends neatly into the top tube. After all, what’s the point of designing a great-riding bike and forgetting the design details?
Gain’s control center is an attractive and discreet button on the top tube and a cycle computer mounted on the stem. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.
-
Motor: Ebikemotion X35 Plus 25kmh
-
Battery: Ebikemotion 36V/6.9A 248Wh ANT+ (Not Removable)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. |
Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC1 31.8mm interface -6º |
Bars | OC1 Road, reach 80mm, drop 125mm |
Front Brake | Shimano BR-RS305 Mechanical Disc |
Rear Brake | Shimano BR-RS305 Mechanical Disc |
Front Mech | Shimano Claris FD-R2000-F |
Rear Mech | Shimano Claris RD-R2000-GS |
Shifters | Shimano Claris ST-R2000 |
Speed | 16 |
Rims | Ready GR |
Front Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Rear Tyre | Hutchinson Fusion 5 Performance TLR 700x30 |
Seat Post | OC 27.2 Offset 0, for integrated light |
Saddle | Selle Royal Asphalt GR |
Chainset | Shimano Claris R2000 34x50t |
Chain | KMC X8 |
Cassette | Shimano HG50 11-32t 8-Speed |
Battery Size (WH) | Ebikemotion 36V/6.9A 248Wh ANT+ |
Motor | Ebikemotion X35 Plus 25kmh |
User Interface | OC monochrome ANT+ LEV |
Orbea Gain D & F Series Sizing
See the table below to find the right size Orbea Gain D Series.
Height |
< 160cm |
160 -170cm |
170 -180cm |
180 -190cm |
> 190cm |
Size |
XS |
S |
M |
L |
XL |
Read our bike size guide for more information on sizing.
Orbea Gain D & F Series Geometry
Size |
XS |
S |
M |
L |
XL |
Seat Tube |
460 |
510 |
555 |
585 |
610 |
Top Tube |
522 |
546 |
560 |
574 |
595 |
Head Tube |
109 |
127 |
150 |
176 |
203 |
Chainstay |
430 |
430 |
430 |
430 |
430 |
BB Height |
281 |
281 |
283 |
283 |
285 |
BB Drop |
70 |
70 |
68 |
68 |
66 |
Wheel Base |
1016 |
1022 |
1037 |
1051 |
1067 |
Head Angle |
71 |
72 |
72 |
72 |
72.3 |
Seat Angle |
75 |
74 |
74 |
74 |
73.5 |
Standover |
754 |
782 |
815 |
829 |
876 |
Reach |
378 |
387 |
395 |
402 |
410 |
Stack |
535 |
555 |
575 |
600 |
625 |
Fork Length |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
Orbea Gain D series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
90 |
400 |
S |
170 |
100 |
420 |
M |
170 |
100 |
420 |
L |
172 |
110 |
440 |
XL |
175 |
120 |
440 |
Orbea Gain F Series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
70 |
640 |
S |
170 |
70 |
640 |
M |
170 |
70 |
640 |
L |
170 |
70 |
640 |
XL |
170 |
70 |
640 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
