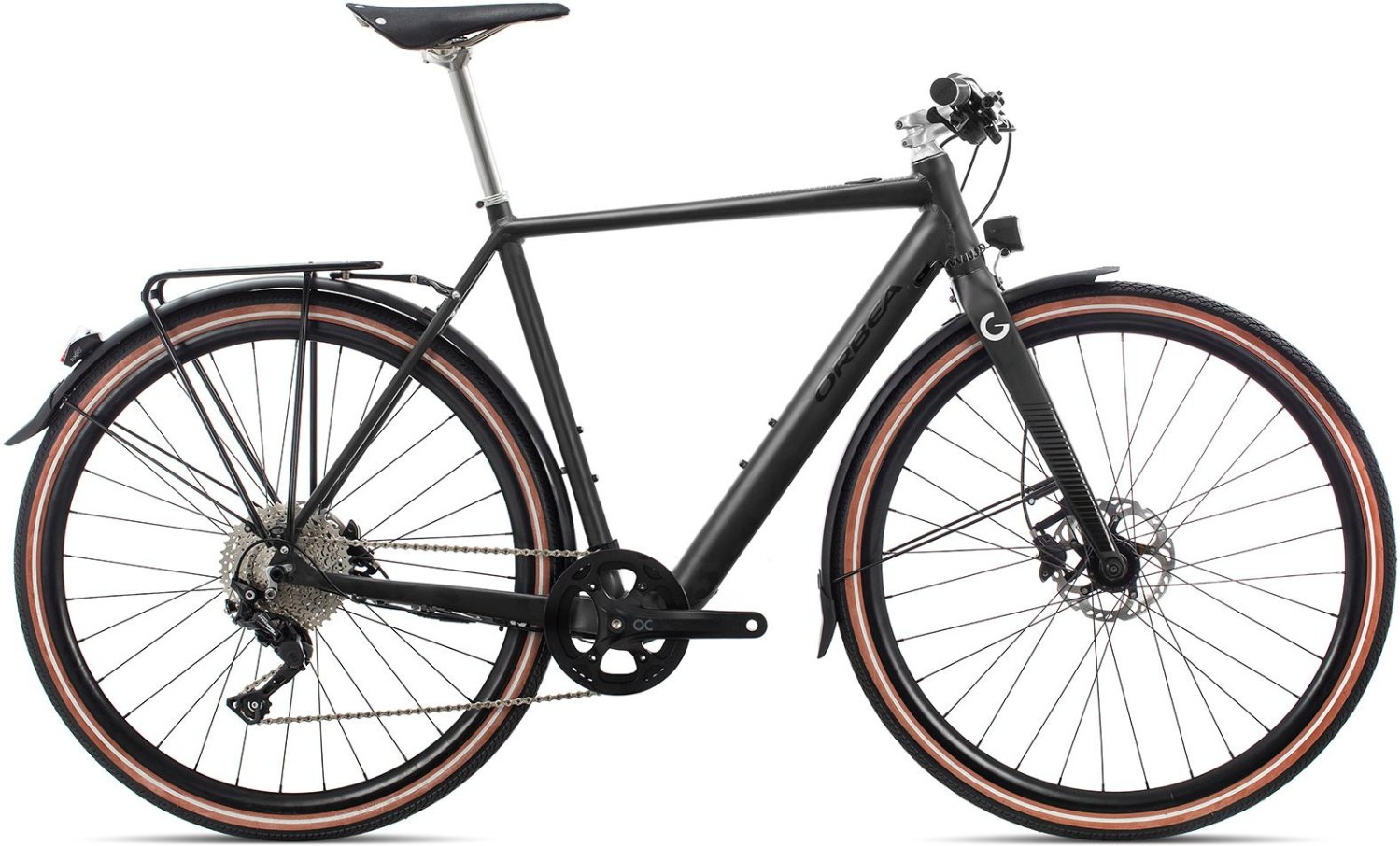

Orbea Gain F10 2020 - Electric Hybrid Bike
Gain was designed to enhance your ride, not dominate it. The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the kilometers. System interfaces are modern, integrated and sleek. There are no bulky components to reduce the riding experience, distractions have been minimized so it’s just you, Gain and the hours ahead.
Mode Button.
Save space on your handlebar for a GPS if you wish, or ride without clutter. Gain’s control center is an attractive and discreet button on the top tube. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.
Internal Battery.
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
Drive System.
The heart of Gain, the rear hub motor is the key to Gain’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedaling when Gain is not providing a push.
C.A.N Integration.
Gain doesn’t require a multitude of wires, ports or accessories. The CAN (Controller Area Network) bus port provides a single interface for charging, system diagnosis or attaching the external backup battery.
PAS Sensor.
Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedaling input and adjusts power accordingly.
APP.
A smartphone and smartwatch compatible app enables deeper control of the iWoc system used by Gain. Ride tracking, activity and GPS route uploading and other functions are available from your mobile device, making Gain an even more valuable tool.
Versitile.
The new carbon frame includes the same integration features other Orbea carbon frames have, plus the complexity of also fully integrating the motor power cable and the P.A.S. sensor.
The Gain F Series is ready for many roles - Gravel, Road or Commuting. Tire clearance, the ability to mount accessories like mud guards combined with a functional All-Road Geometry means that Gain can change. Mount and secure aftermarket fenders in a sleek and simple installation that is sturdy and attractive. Attach a rack for extra carrying capacity. Gain won’t mind, it’s what we intended when we created one of our our most versatile bikes.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain Hydro, Aluminum 6000 series, Orbea Tube Shaping, Flat Mount Disc Brakes, 135x9 QR, Carrier and Mudguards compatible, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, i |
Fork | Speed 400mm Carbon Flat mount |
Headset | 1-1/8" Semi-Integrated |
Stem | Orbea TDS-C301 |
Bars | Orbea AL320 Riser 680mm |
Front Brake | Shimano MT201 Hydraulic Disc |
Rear Brake | Shimano MT201 Hydraulic Disc |
Rear Mech | Shimano Deore M6000 GS Shadow Plus |
Shifters | Shimano Deore M6000 |
Speed | 10 |
Rims | Airline Corsa |
Rear Hub | Safety Lock |
Front Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Rear Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Seat Post | Orbea C255 27.2x300mm |
Saddle | Brooks Cambium C17 165mm wide |
Chainset | Prowheel 42 Steel Custom logo |
Chain | KMC X10 |
Cassette | Sun Race 11-42t 10-Speed |
Pedals | VP-537 Black |
Motor | Ebikemotion X35 25kmh |
Orbea Gain D & F Series Sizing
See the table below to find the right size Orbea Gain D Series.
Height |
< 160cm |
160 -170cm |
170 -180cm |
180 -190cm |
> 190cm |
Size |
XS |
S |
M |
L |
XL |
Read our bike size guide for more information on sizing.
Orbea Gain D & F Series Geometry
Size |
XS |
S |
M |
L |
XL |
Seat Tube |
460 |
510 |
555 |
585 |
610 |
Top Tube |
522 |
546 |
560 |
574 |
595 |
Head Tube |
109 |
127 |
150 |
176 |
203 |
Chainstay |
430 |
430 |
430 |
430 |
430 |
BB Height |
281 |
281 |
283 |
283 |
285 |
BB Drop |
70 |
70 |
68 |
68 |
66 |
Wheel Base |
1016 |
1022 |
1037 |
1051 |
1067 |
Head Angle |
71 |
72 |
72 |
72 |
72.3 |
Seat Angle |
75 |
74 |
74 |
74 |
73.5 |
Standover |
754 |
782 |
815 |
829 |
876 |
Reach |
378 |
387 |
395 |
402 |
410 |
Stack |
535 |
555 |
575 |
600 |
625 |
Fork Length |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
Orbea Gain D series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
90 |
400 |
S |
170 |
100 |
420 |
M |
170 |
100 |
420 |
L |
172 |
110 |
440 |
XL |
175 |
120 |
440 |
Orbea Gain F Series Components
SIZE |
CRANK |
STEM |
HANDLEBAR |
XS |
170 |
70 |
640 |
S |
170 |
70 |
640 |
M |
170 |
70 |
640 |
L |
170 |
70 |
640 |
XL |
170 |
70 |
640 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
