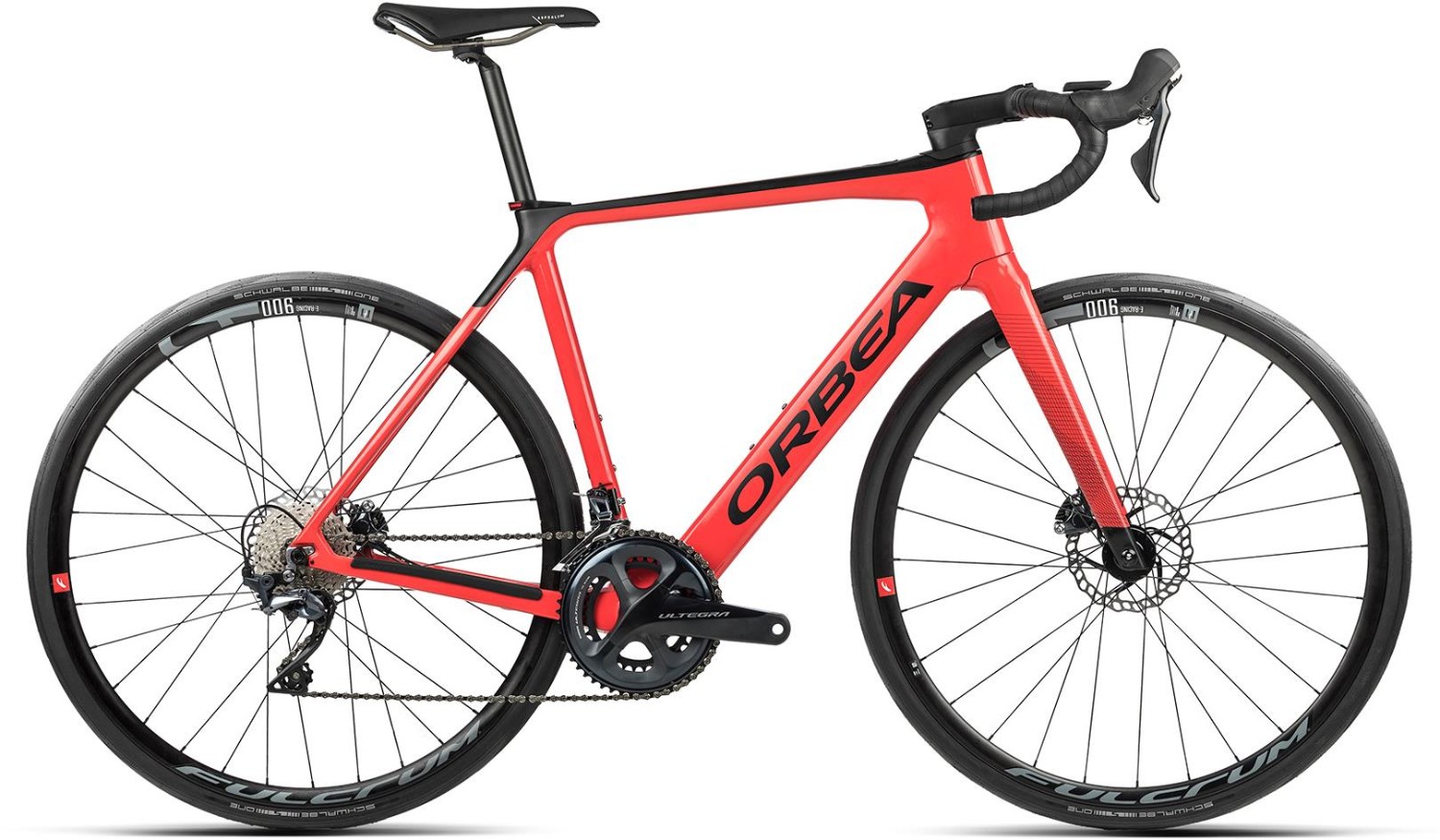

Orbea Gain M20 2021 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1"" 1/2 semi head set, BB386 EVO. |
| Fork | Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration. |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea ICR -8º |
| Bars | OC2 Road, reach 80mm, drop 125mm |
| Front Brake | Shimano R8070 Hydraulic Disc |
| Rear Brake | Shimano R8070 Hydraulic Disc |
| Front Mech | Shimano Ultegra R8000 |
| Rear Mech | Shimano Ultegra R8000 GS |
| Shifters | Shimano ST-8020 |
| Rims | FULCRUM E-Racing 900 |
| Front Tyre | Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX |
| Rear Tyre | Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX |
| Seat Post | OC2 Carbon 27.2 Offset 20 |
| Saddle | Selle Royal Asphalt GR |
| Chainset | Shimano Ultegra R8000 34x50t |
| Chain | KMC X11 |
| Cassette | Shimano Ultegra R8000 11-32t 11-Speed |
| Battery Size (WH) | Ebikemotion 36V/6.9A 248Wh ANT+ |
| User Interface | Ebikemotion Pulsar One monochrome ANT+ LEV |
Orbea Gain M Series Sizing
See the table below to find the right size Orbea M Series.
|
Height (cm) |
150 – 160cm |
160 -170cm |
170 -180cm |
180 -190cm |
190cm – 200cm |
|
Height (in) |
59.1” – 63.0” |
63.0” – 66.9” |
66.9” – 70.9” |
70.9” – 74.8” |
74.8” – 78.7” |
|
Size |
XS |
S |
M |
L |
XL |
Read our bike size guide for more information on sizing.
Orbea Gain M Series Geometry
|
SIZE |
XS |
S |
M |
L |
XL |
|
SEAT TUBE (C-T) |
470 |
510 |
540 |
555 |
570 |
|
TOP TUBE (EFF) |
517,9 |
528 |
549,5 |
568,8 |
591 |
|
HEAD TUBE |
98,7 |
115 |
130 |
142 |
155 |
|
CHAINSTAY |
435 |
435 |
435 |
435 |
435 |
|
BB HEIGHT |
272 |
272 |
272 |
272 |
272 |
|
BB DROP |
67 |
67 |
67 |
67 |
67 |
|
WHEELBASE |
1005,6 |
1016 |
1024,5 |
1034,9 |
1051,4 |
|
HEAD ANGLE |
69,5 |
69,5 |
71 |
71,9 |
72,5 |
|
SEAT ANGLE |
72,4 |
72,4 |
72,4 |
72,4 |
72,4 |
|
STANDOVER |
715 |
715 |
715 |
715 |
715 |
|
REACH |
355 |
360,2 |
375,4 |
390 |
407,6 |
|
STACK |
515 |
530,2 |
550,1 |
565 |
579,5 |
|
FORK LENGTH |
395 |
395 |
395 |
395 |
395 |
|
RAKE |
50 |
50 |
50 |
50 |
50 |
|
WHEEL SIZE |
678 |
678 |
678 |
678 |
678 |
Orbea M Series Components
|
SIZE |
CRANK |
STEM |
HANDLEBAR |
|
XS |
170 |
90 |
400 |
|
S |
170 |
100 |
420 |
|
M |
170 |
100 |
420 |
|
L |
172 |
110 |
440 |
|
XL |
175 |
120 |
440 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
