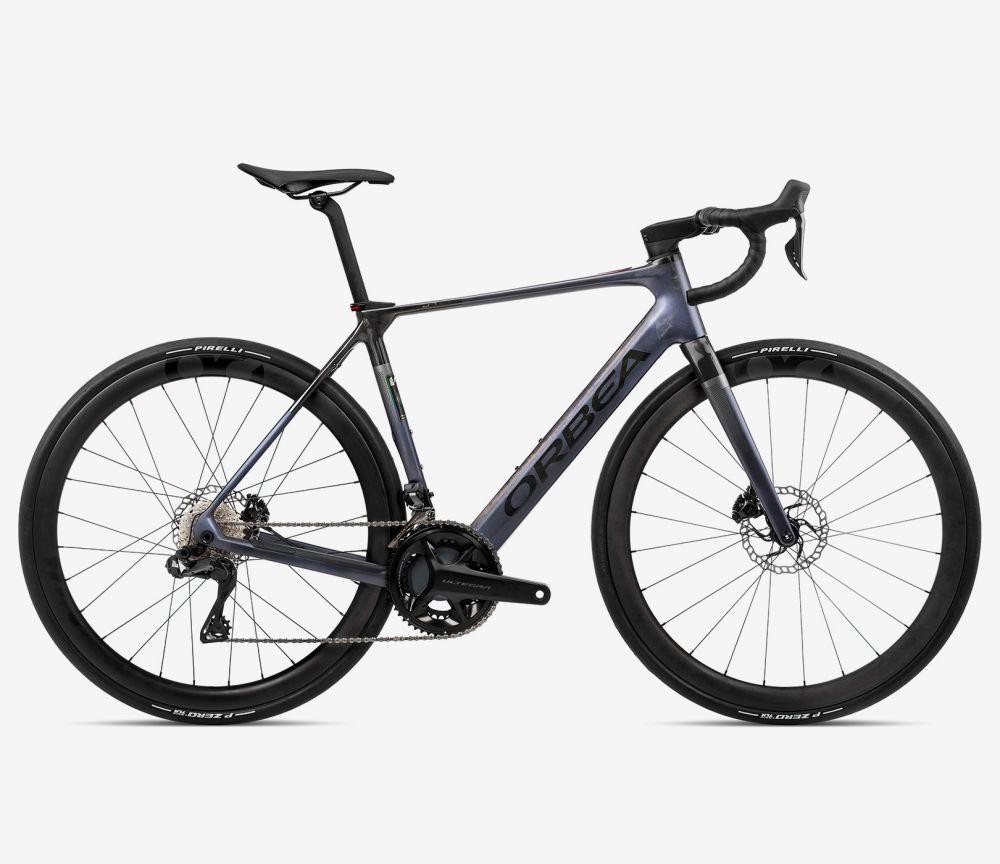

Orbea Gain M20i 2023 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Thru Axle 12mm x 142mm rear, Flat Mount disc, 700x40 maximun tyre, BB386 EVO. |
Fork | Gain OMR carbon fork, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration. |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Stem | OC Road Performance RP10 Stem, -8º |
Bars | OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125 |
Front Brake | Shimano R8170 Hydraulic Disc |
Rear Brake | Shimano R8170 Hydraulic Disc |
Front Mech | Shimano Ultegra Di2 R8150 |
Rear Mech | Shimano Ultegra Di2 R8150 |
Shifters | Shimano ST-8170 |
Speed | 24 |
Rims | OC2 Carbon 42 Tubeless Ready |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
Front Tyre | Pirelli P ZERO™ Race TLR 700x30c |
Rear Tyre | Pirelli P ZERO™ Race TLR 700x30c |
Seat Post | OC Performance XP10-S Carbon Seatpost, 27.2mm, Setback 20 |
Saddle | Fizik Aliante R5 |
Chainset | Shimano Ultegra R8100 34x50t |
Chain | Shimano M8100 |
Cassette | Shimano Ultegra R8100 11-30t 12-Speed |
Battery Size (WH) | Mahle iX350 36V 353Wh |
Motor | Mahle motor hub X20, ALC |
User Interface | Mahle Pulsar One monochrome ANT+ LEV |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
