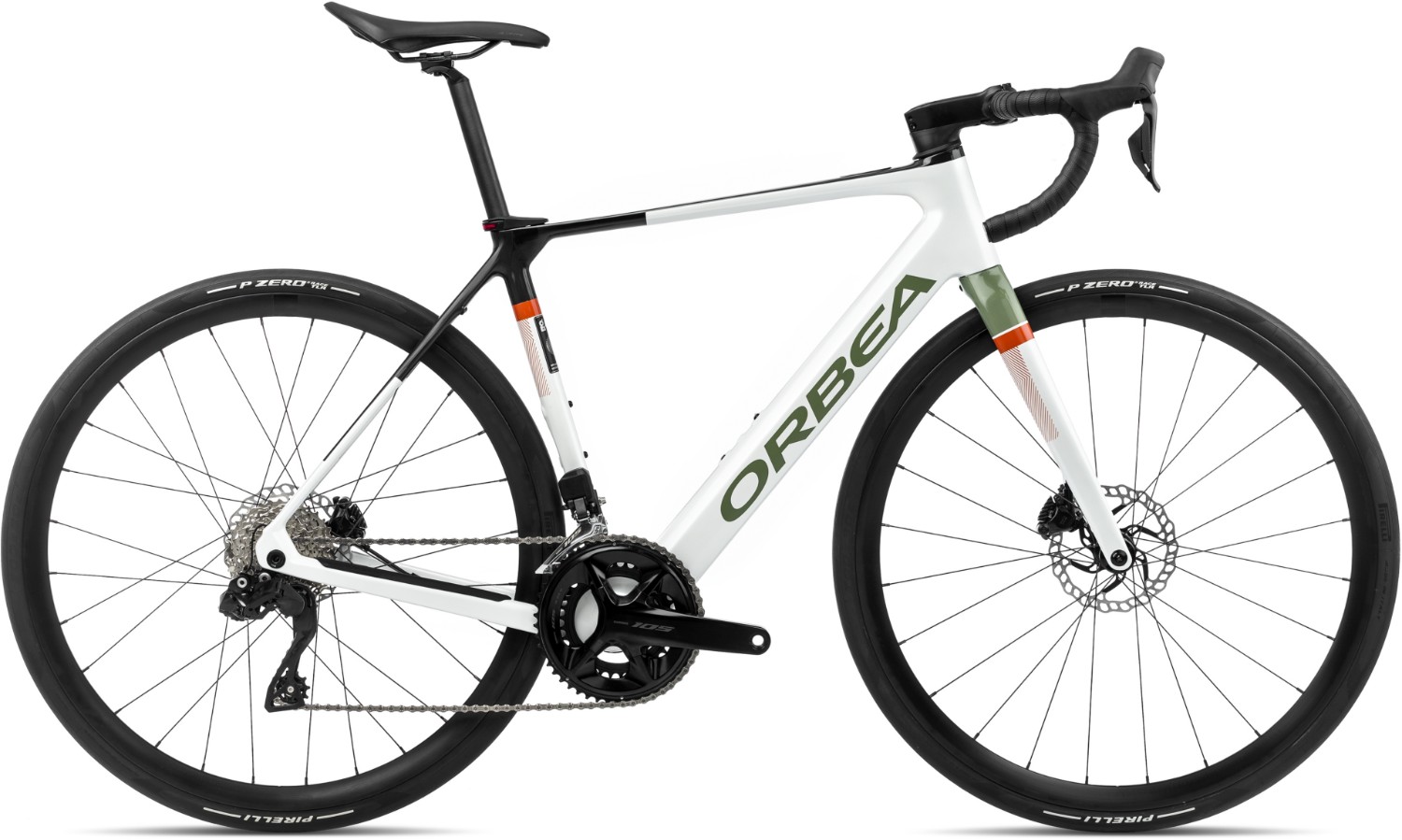

Orbea Gain M30i 2024 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug. |
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Front Mech | Shimano 105 Di2 R7150 |
| Rear Mech | Shimano 105 Di2 R7150 |
| Shifters | Shimano Di2 R7170 |
| Speed | 24 |
| Rims | Alloy, Tubeless, 700c, 21c |
| Front Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Front Tyre | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Rear Tyre | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Seat Post | Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chain | Shimano M7100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Battery Size (WH) | Mahle iX350 36V 353Wh |
| Motor | Mahle motor hub X20, ALC |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
