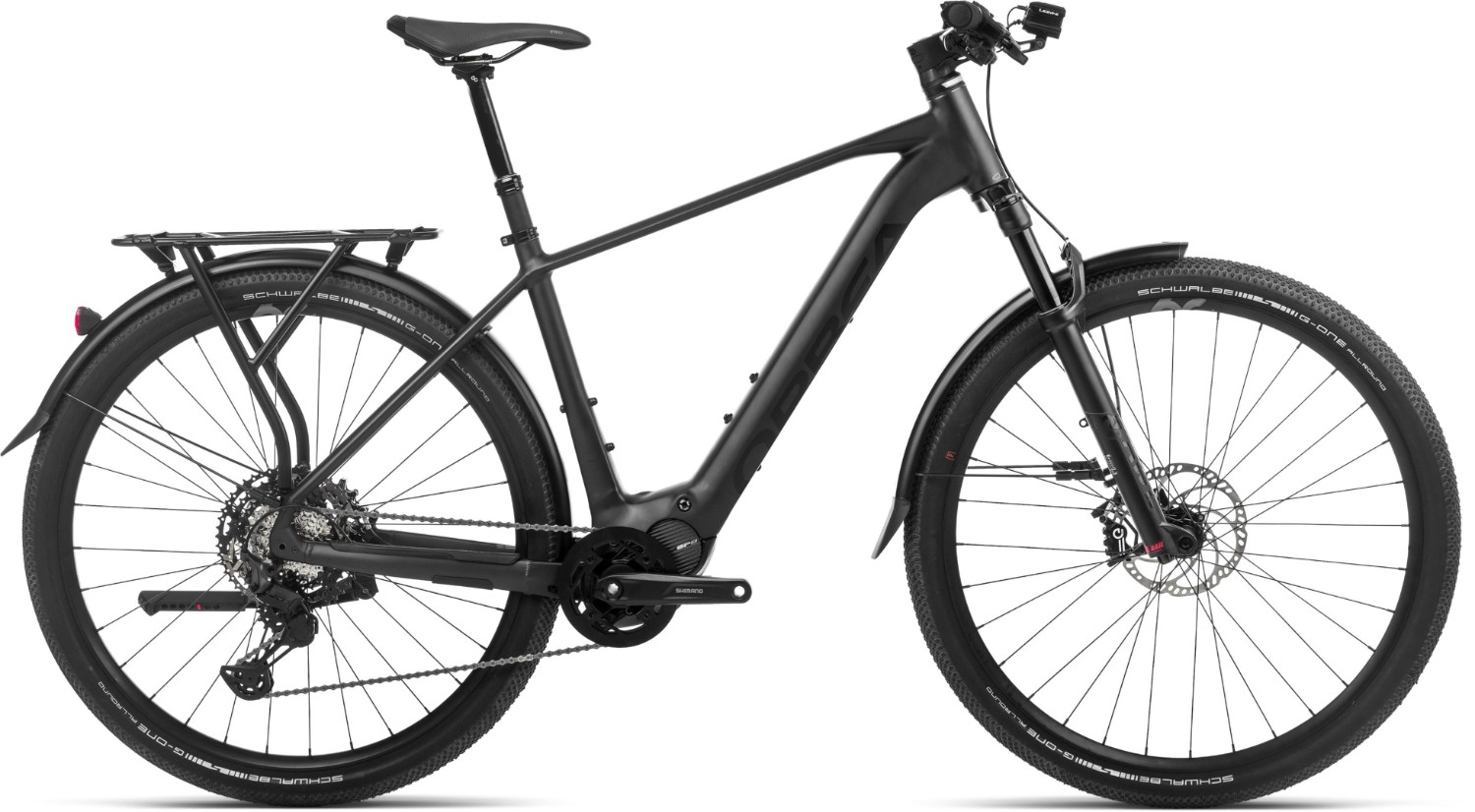

Orbea Kemen 10 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | Fox 34 Float AWL 100 RAIL QR15x110 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC1 35mm interface -6º |
| Bars | OC Mountain Control MC31, Rise20, Width 800 |
| Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Brake Lever | Magura MT5 |
| Rear Mech | Shimano XT M8130 Link Glide SGS Shadow Plus |
| Shifters | Shimano XT M8130 Link Glide |
| Speed | 11 |
| Rims | Orbea OC1 25c Tubeless Ready |
| Front Hub | Orbea OC1 25c Tubeless Ready |
| Rear Hub | Orbea OC1 25c Tubeless Ready |
| Front Tyre | Schwalbe G-ONE Allround, 29x2,25, Performance Line RaceGuard, TLE, Reflective |
| Rear Tyre | Schwalbe G-ONE Allround, 29x2,25, Performance Line RaceGuard, TLE, Reflective |
| Seat Post | OC Mountail Control MC20, 31.6mm, Dropper |
| Saddle | Selle Royal Vivo 145x269mm |
| Chainset | Shimano Steps EM600 |
| Bottom Bracket | Integrated |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG400 11-50t 11-Speed |
| Pedals | VP-537 Black |
| Battery Size (WH) | Orbea Internal 540Wh (Optional 252Wh Range Extender) |
| Motor | Shimano EP8 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
