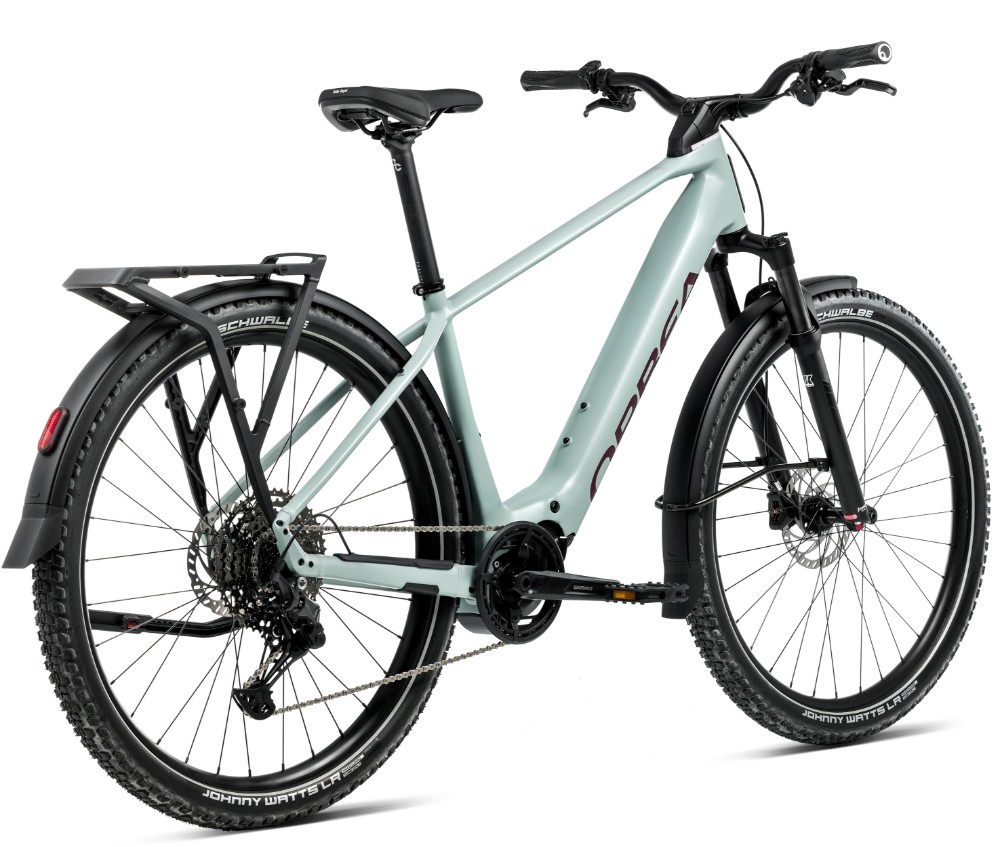

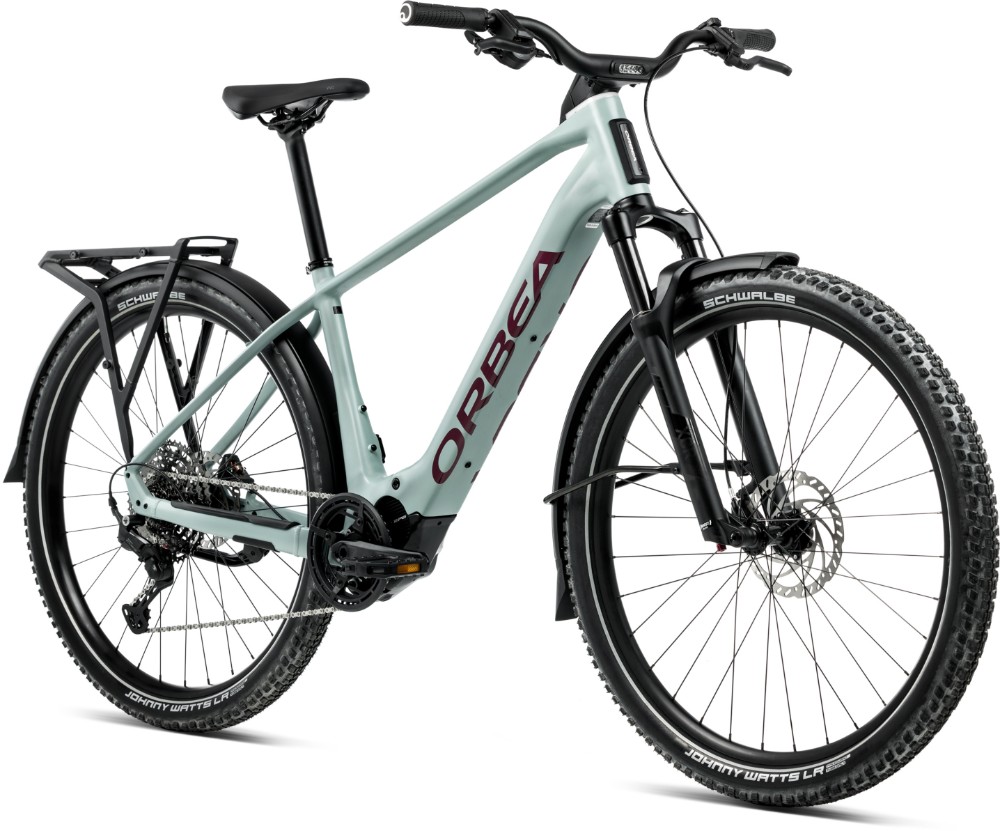

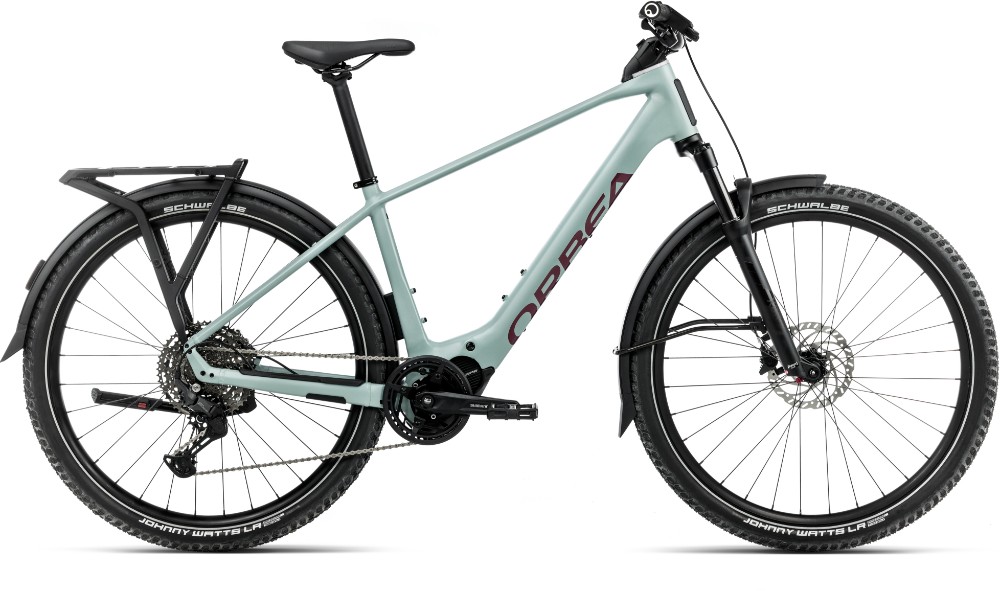

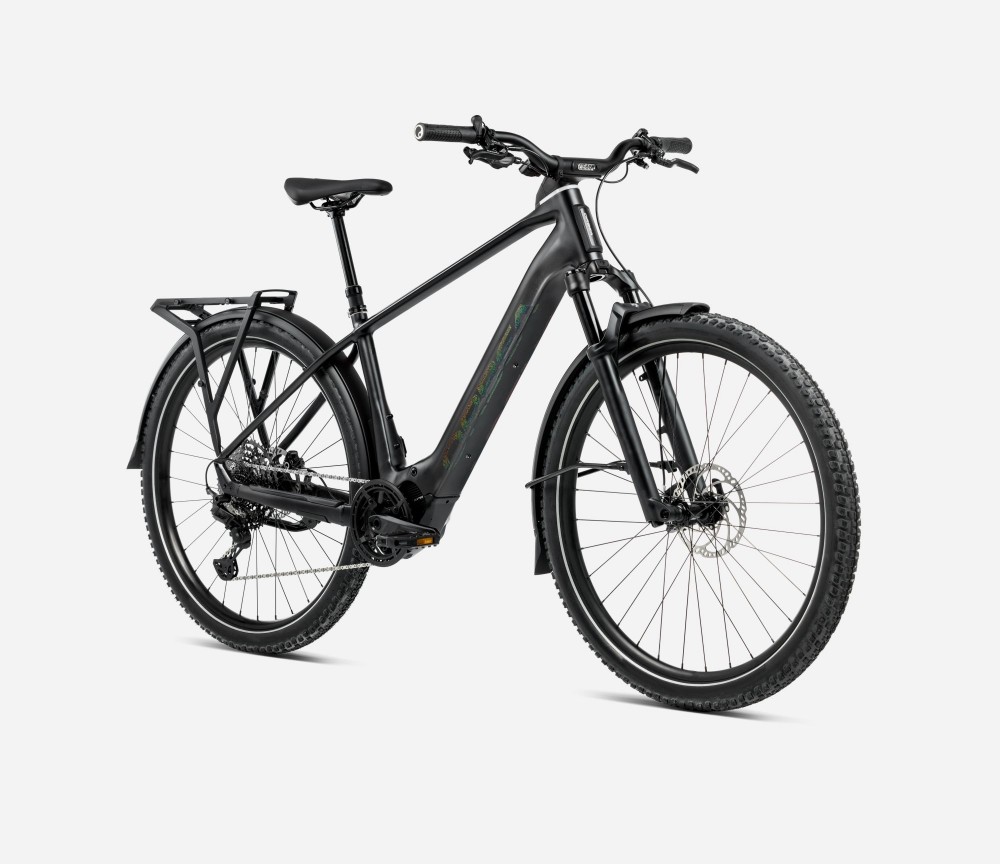

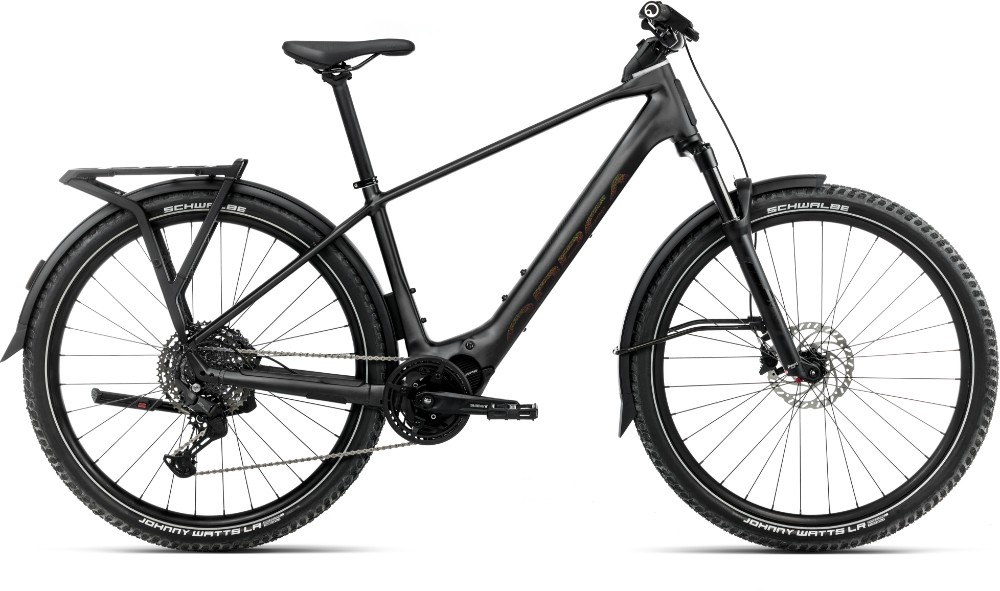

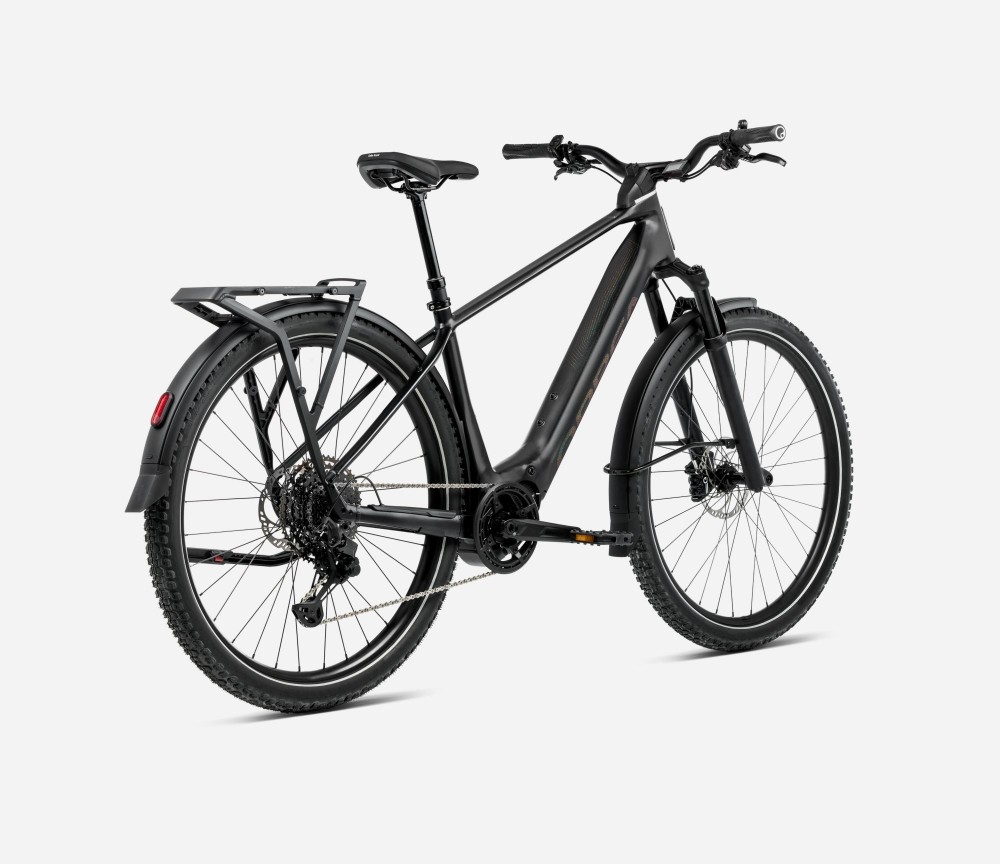

Orbea Kemen Adv 20 2025 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | SR Suntour XCR34 100mm Air Q15x110 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Bars | Orbea Urban, Integrated Light, Rise 50, Width 760 |
| Front Brake | Magura AT2 Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura AT2 Hydraulic Disc Easy Route Connection |
| Rear Mech | Shimano Cues U6000 GS Shadow |
| Shifters | Shimano Cues SL-U6000 |
| Speed | 11 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Rear Tyre | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Seat Post | Alloy, 31.6mm, Setback 0 |
| Saddle | Selle Royal Vivo Ergo |
| Chainset | Shimano Steps EM600 |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG400 11-50t 11-Speed |
| Pedals | VP-537 Black |
| Battery Size (WH) | Orbea Internal 630Wh |
| Motor | Shimano EP600 |
Orbea Kemen 2025 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
153 - 172 |
60.2"- 67.7" |
|
M |
164 - 183 |
64.6"- 72.0" |
|
L |
176 - 195 |
69.3"- 76.8" |
|
XL |
187 - 206 |
73.6"- 81.1" |
Orbea Kemen 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 633 | 644 | 655 | 673 |
| Reach | 417 | 444.5 | 470.5 | 494 |
| Head Tube Length | 129.5 | 138.6 | 150.6 | 170.2 |
| Head Tube Angle | 66.5° | 67.2° | 67.2° | 67.2° |
| Bottom Bracket Height | 297.5 | 297.5 | 297.5 | 297.5 |
| Bottom Bracket Drop | 65 | 65 | 65 | 65 |
| Fork Length | 508 | 508 | 508 | 508 |
| Fork Rake/Offset | 46 | 46 | 46 | 46 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| Wheelbase | 1162 | 1191 | 1222 | 1253 |
| Top Tube Length (horizontal) | 583.5 | 612 | 641 | 669.5 |
| Seat Tube Length | 428 | 442.7 | 457.3 | 472 |
| Seat Tube Angle | 74.7° | 74.7° | 74.7° | 74.7° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
