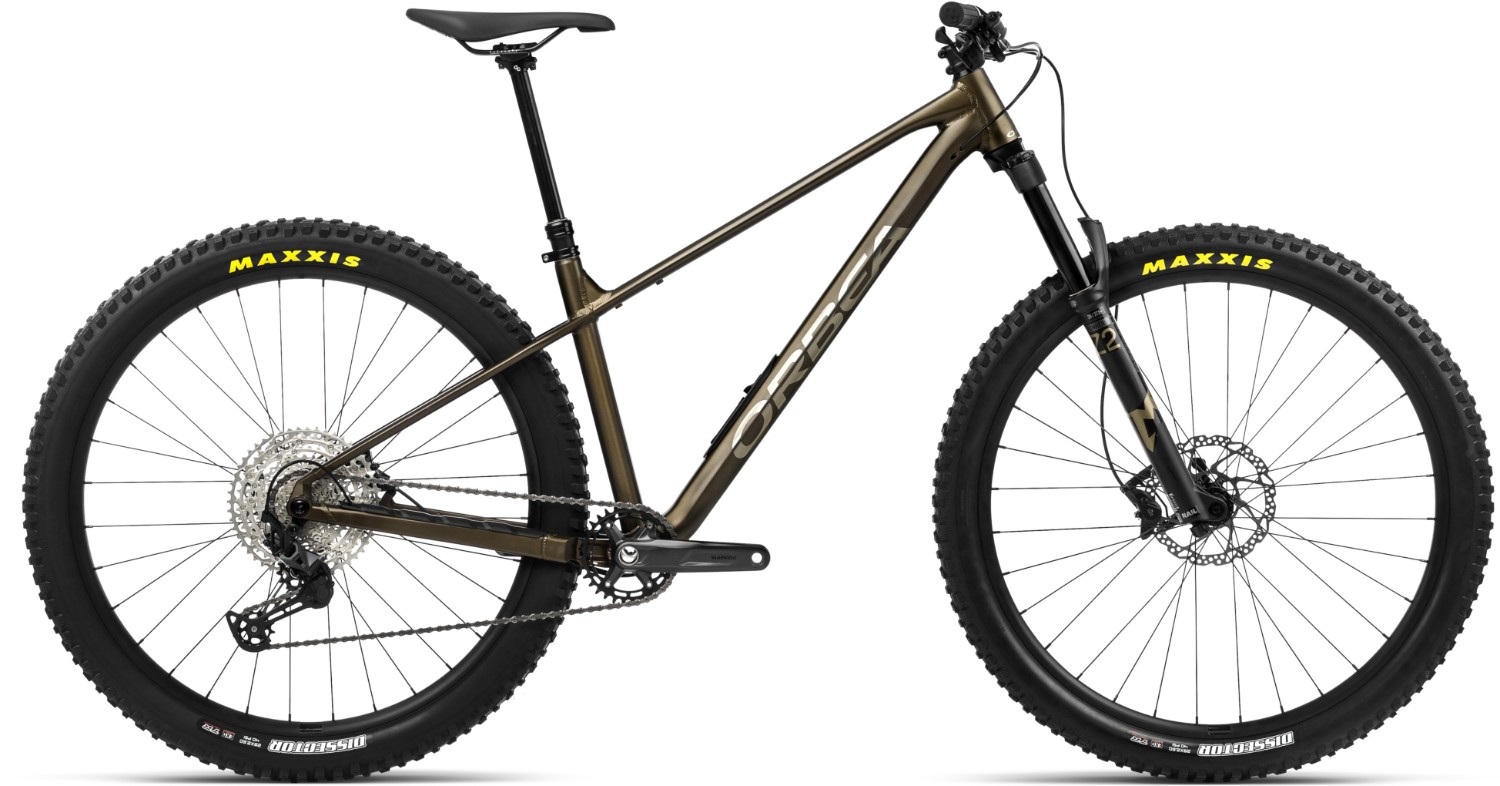

Orbea Laufey H10 Mountain Bike 2024 - Hardtail MTB
The Orbea Laufey H10 is a hardtail machine designed to tackle any trouble you seek on the trail. With a robust Orbea Laufey Hydro frame, triple-butted for strength, and 140mm Marzocchi Bomber Z2 fork, this bike balances agility and control. The "Ready to Rock" geometry ensures confidence on descents, while its low-slung top tube allows for long-travel dropper posts on all sizes, maximizing playfulness.
Key Features:
- Frame: Orbea Laufey Hydro triple-butted 29", Boost 12x148, ISCG 05
- Front Suspension: Marzocchi Bomber Z2 140 QR15x110
- Drivetrain: Shimano SLX M7100 12-speed
- Brakes: Shimano M6100 Hydraulic Disc, Shimano M6100 levers
- Wheels: Alloy, tubeless, 29", Maxxis Dissector 2.60" TLR Tyres
- Standout Feature: "Ready to Rock" geometry for versatile trail performance
- Finance Option: Available with 0% APR finance
The Laufey H10 boasts a "Ready to Rock" geometry, making it an ideal hardtail for riders of all levels. The 140mm Marzocchi Bomber Z2 fork allows you to push hard even on rough trails, while the uninterrupted, short, and straight seat tube accommodates long-travel dropper posts, providing more space for control on descents.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05 |
| Fork | Marzocchi Bomber Z2 140 QR15x110 |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Alloy 3D forged, 35mm interface, -7º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano M6100 Hydraulic Disc |
| Rear Brake | Shimano M6100 Hydraulic Disc |
| Brake Lever | Shimano M6100 |
| Rear Mech | Shimano SLX M7100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 I-Spec EV |
| Speed | 12 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Rear Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Selle Royal 2058 DRN |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Orbea Laufey H10 Mountain Bike 2024 - Hardtail MTB.
This product is no longer available.
