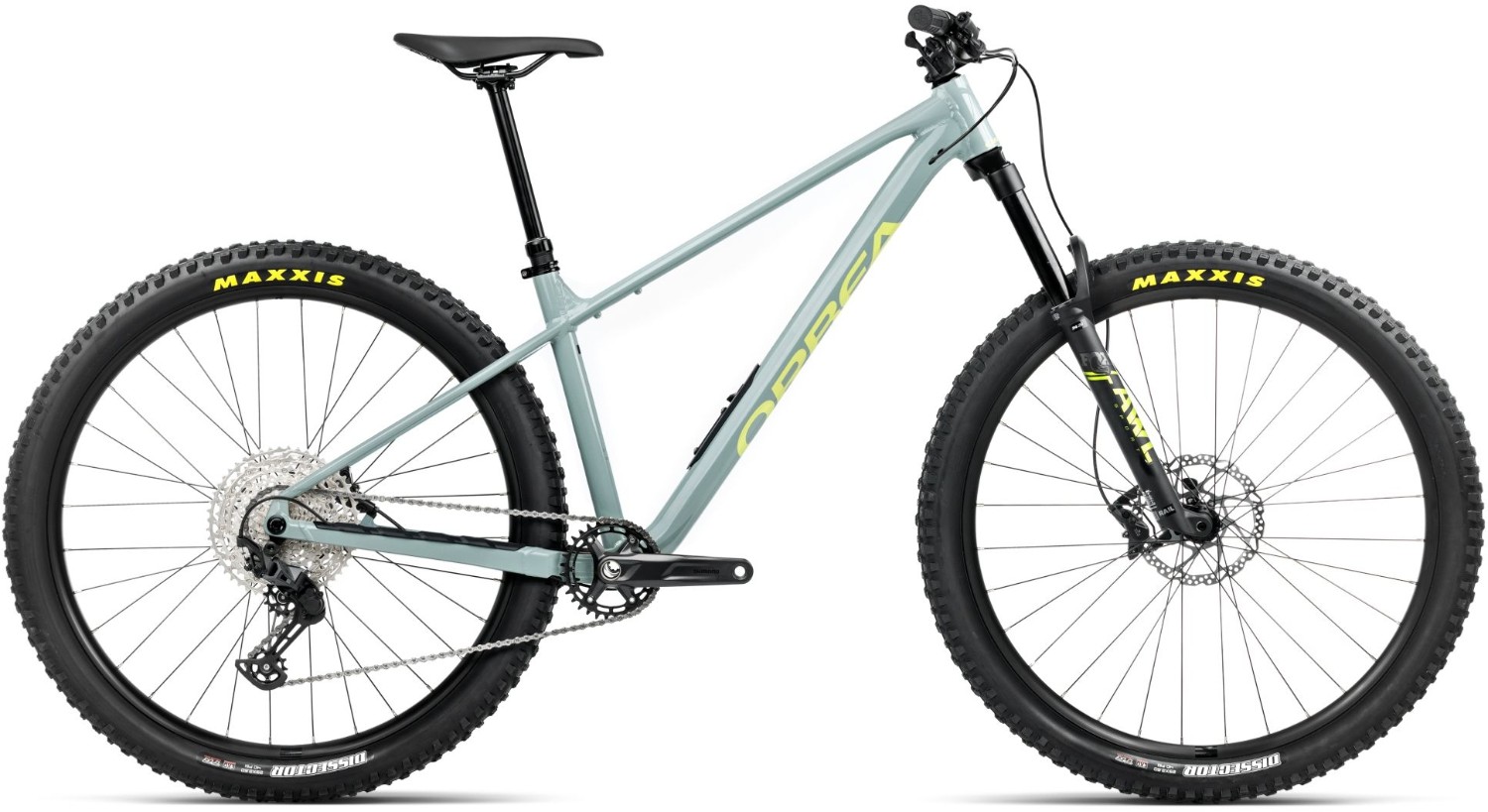

Orbea Laufey H10 Mountain Bike 2025 - Hardtail MTB
The Orbea Laufey H10 is built to take a beating, with a triple-butted aluminium frame that’s lightweight yet ultra-durable. Designed with modern geometry, its slack head angle and low bottom bracket offer stability on technical descents while remaining agile on climbs.
Key Features:
- Frame: Hydroformed aluminium, slack geometry for confidence on rough terrain
- Fork: Fox 34 Float AWL Sport, 140mm travel, QR15x110 for stability
- Drivetrain: Shimano SLX/Deore M6100 1x12-speed for smooth shifting
- Brakes: Shimano M6100 hydraulic disc brakes for powerful stopping
- Wheels: 29” alloy rims with Maxxis Dissector 2.6” tyres for grip and control
- Standout Feature: Orbea’s Lockr downtube cargo bay for tool and essentials storage
- Finance: Available with 0% APR finance
With 140mm of front suspension from the Fox 34 Float AWL Sport, this bike smooths out rough trails and handles drops with ease. The short chainstays provide playful handling, while the wide 2.6” Maxxis Dissector tyres offer unbeatable traction on loose terrain.
The Shimano SLX/Deore M6100 1x12 drivetrain delivers crisp and reliable shifting, with a 10-51T cassette ensuring you have the right gear for steep climbs and fast descents. Shimano M6100 hydraulic disc brakes provide confident stopping power in all conditions.
A standout feature is Orbea’s Lockr storage system, an integrated downtube cargo bay where you can stash tools, energy gels, or trail essentials—keeping you prepared for anything. Internal cable routing keeps the frame clean and protected, while factory-fitted vinyl guards the downtube from rock strikes.
From flowy singletrack to technical rock gardens, the Orbea Laufey H10 is the hardtail that can do it all. If you’re looking for a fun, capable, and durable trail bike, this is the one to ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05 |
| Fork | Fox 34 Float AWL Sport 140 Rail QR15x110 |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Alloy 3D forged, 35mm interface, -7º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano M6100 Hydraulic Disc |
| Rear Brake | Shimano M6100 Hydraulic Disc |
| Rear Mech | Shimano SLX M7100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 I-Spec EV |
| Speed | 12 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Rear Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Selle Royal 2058 DRN |
| Chainset | Shimano MT512 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Laufey 2025 Size Chart
|
Size |
Height (cm) |
Height (ft) |
|
S |
150 - 165 |
4'11" - 5'5" |
|
M |
160 - 175 |
5'3" - 5'9" |
|
L |
170 - 185 |
5'7" - 6'1" |
|
XL |
180 - 198 |
5'11" - 6'6" |
Orbea Laufey 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 633 | 642 | 655.5 | 664.5 |
| Reach | 427 | 451 | 475 | 500 |
| Head Tube Length | 95 | 105 | 120 | 130 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Bottom Bracket Height | 310 | 310 | 310 | 310 |
| Bottom Bracket Drop | 65 | 65 | 65 | 65 |
| Fork Length | 554 | 554 | 554 | 554 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1181.8 | 1210.1 | 1240.6 | 1269.9 |
| Top Tube Length (horizontal) | 572 | 598 | 625 | 652 |
| Standover Height | 440 | 440 | 440 | 440 |
| Seat Tube Length | 380 | 415 | 430 | 460 |
| Seat Tube Angle | 77° | 77° | 77° | 77° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
