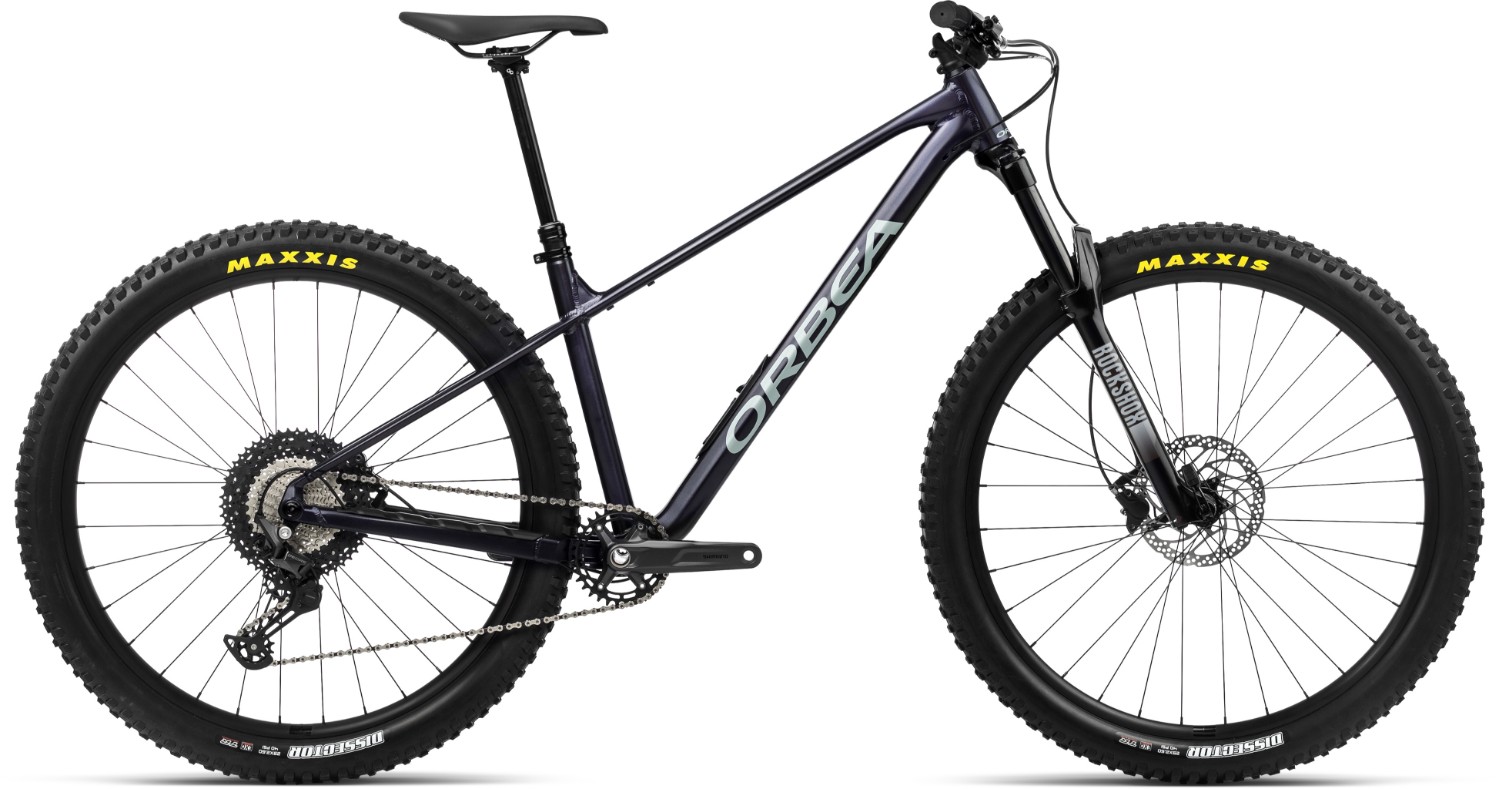

Orbea Laufey H30 Mountain Bike 2024 - Hardtail MTB
- Frame: Orbea Laufey Hydro triple-butted 29" Boost frame with ISCG 05 mounts.
- Front Suspension: RockShox Recon RL Q15x110 Boost Solo Air with 140mm travel.
- Drivetrain: Shimano Deore M6100 12-speed for reliable shifting.
- Brakes: Shimano MT201 hydraulic disc brakes for precise stopping.
- Wheels: Alloy tubeless-ready rims, 29", with Maxxis Dissector 2.60" tires.
- Ready to Rock Geometry: Confident and playful geometry for diverse trail experiences.
- Internal Cables: Ensures clean aesthetics and prevents cable interference.
- LOCKR Cargo Bay: Downtube cargo bay for essential tools and water storage.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05 |
| Fork | RockShox Recon RL Q15X110 Boost Solo Air 140mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Alloy 3D forged, 35mm interface, -7º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano MT201 Hydraulic Disc |
| Rear Brake | Shimano MT201 Hydraulic Disc |
| Brake Lever | Shimano MT201 |
| Rear Mech | Shimano Deore M6100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 |
| Speed | 12 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Rear Tyre | Maxxis Dissector 2.60" 60 TPI Exo TLR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Selle Royal 2058 DRN |
| Chainset | Forged alloy, 32t |
| Chain | KMC X12 |
| Cassette | Sun Race 11-51t 12-Speed |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
