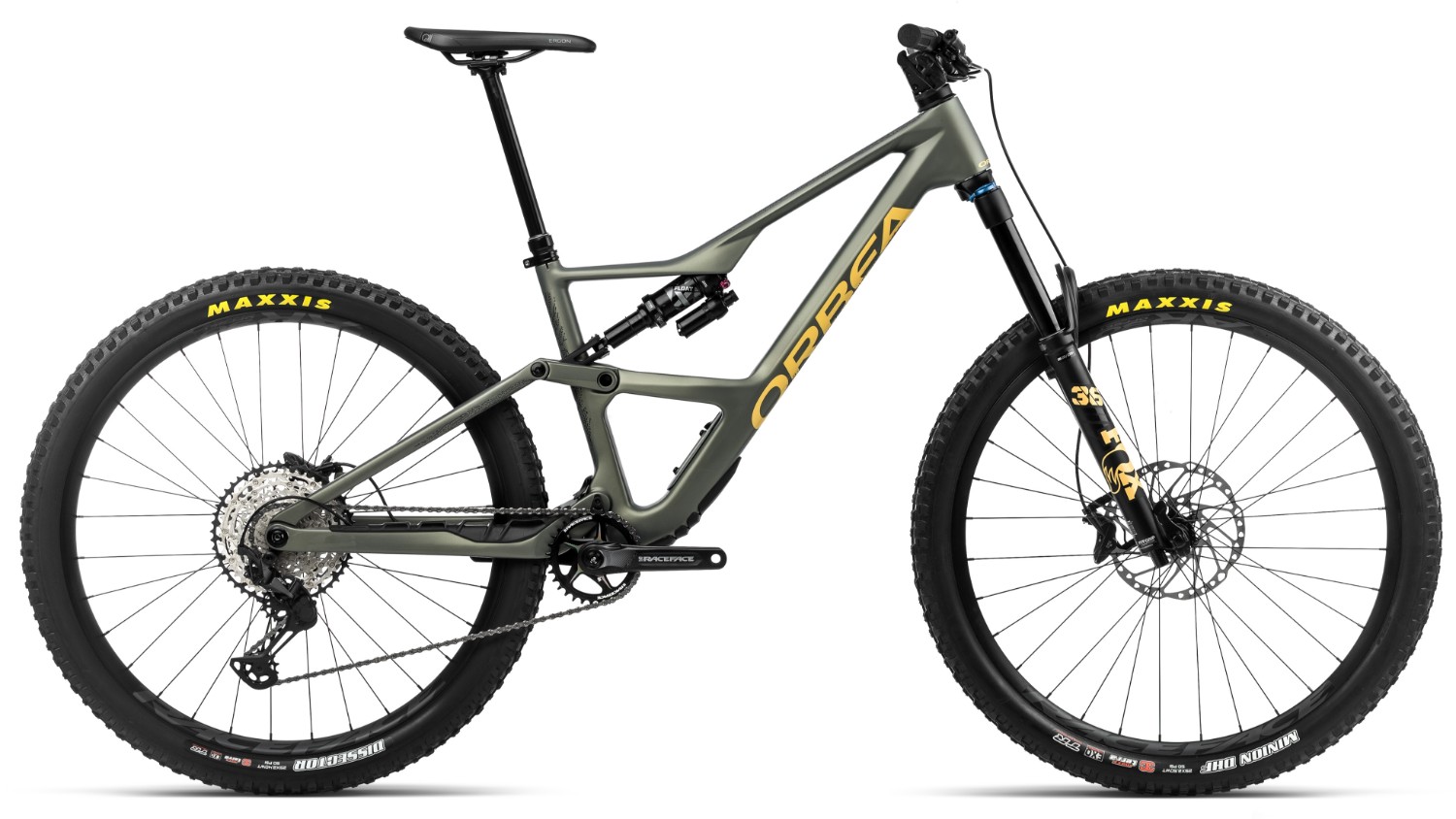

Orbea Occam LT M30 Mountain Bike 2024 - Trail Full Suspension MTB
The Orbea Occam LT M30 offers mountain bikers exceptional adaptability for versatile trail riding. Its robust OMR frame, paired with Fox suspension components, ensures a smooth, controlled ride on any terrain. The Shimano XT 12-speed drivetrain guarantees seamless gear transitions, while the powerful Shimano M6120 hydraulic disc brakes offer dependable stopping power, boosting your confidence on descents.
Key Features:
- Orbea Occam OMR carbon frame delivers an optimal trail riding geometry
- Fox 36 Float Performance 3 position 160mm fork for off-road control
- Fox Float X Performance 2-position rear shock ensures all-day trail comfort
- Shimano XT M8100 12-speed offers reliable shifting on rough terrain
- Shimano M6120 hydraulic disc brakes for confident braking
- Available with 0% APR finance
Its Orbea OMR frame, with concentric boost 12x148 rear axle, internal cable routing, and an asymmetric design, combines stability and agility. Featuring Fox 36 Float Performance 160 Grip 3-position fork and Fox Float X Performance 2-position EVOL LV shock, it delivers a smooth ride. The Shimano XT M8100 12-speed drivetrain ensures precise shifting, while Shimano M6120 hydraulic disc brakes offer reliable stopping power. Rolling on Race Face AR 30C tubeless-ready rims and Maxxis Minion DHF 2.50" tyres, this bike promises exceptional grip and control.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels |
Fork | Fox 36 Float Performance 160 Grip 3-Position QR15x110 |
Rear Shock | Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm |
Headset | Alloy 1-1/2", Black Oxidated Bearing |
Stem | OC Mountain Control MC20, 0º |
Bars | OC Mountain Control MC30, Rise20, Width 800 |
Front Brake | Shimano M6120 Hydraulic Disc |
Rear Brake | Shimano M6120 Hydraulic Disc |
Brake Lever | Shimano M6120 |
Rear Mech | Shimano XT M8100 SGS Shadow Plus |
Shifters | Shimano SLX M7100 I-Spec EV |
Speed | 12 |
Rims | Race Face AR 30c Tubeless Ready |
Front Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
Rear Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
Saddle | ERGON SM Enduro |
Chainset | Race Face Aeffect 32t |
Chain | Shimano M6100 |
Cassette | Shimano CS-M7100 10-51t 12-Speed |
Pedals | Resin Platform |
Orbea Occam LT 2024 Size Chart
Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
S | 150 | 165 | 4'11" | 5'5" |
M | 160 | 175 | 5'3" | 5'9" |
L | 170 | 185 | 5'7" | 6'1" |
XL | 180 | 195 | 5'11" | 6'5" |
What size frame do I need if I am between sizes? - read here
Orbea Occam LT 2024 Geometry
Size |
S (high) |
S (low) |
M (high) |
M (low) |
L (high) |
L (low) |
XL (high) |
XL (low) |
Seat Tube (C-T) |
405 |
405 |
415 |
415 |
430 |
430 | 460 | 460 |
Top Tube (Eff) |
571 |
572 |
597 |
598 |
624 |
625 | 651 | 653 |
Head Tube |
95 |
95 |
100 |
100 |
110 |
110 | 120 | 120 |
Chainstay |
440 |
440 |
440 |
440 |
440 |
440 | 440 | 440 |
Bb Height |
350 |
342 |
350 |
342 |
350 |
342 | 350 | 342 |
Bb Drop* |
28 |
36 |
28 |
36 |
28 |
36 | 28 | 36 |
Wheelbase |
1199 |
1200 |
1226 |
1227 |
1255 |
1257 | 1285 | 1286 |
Head Angle |
64.5° |
64° |
64.5° |
64° |
64.5° |
64° | 64.5° | 64° |
Seat Angle |
77.5° |
77° |
77.5° |
77° |
77.5° |
77° | 77.5° | 77° |
Reach |
435 |
430 |
460 |
455 |
485 |
480 | 510 | 505 |
Stack |
616 |
621 |
621 |
625 |
630 |
635 | 639 | 644 |
Fork Length |
575 |
575 |
575 |
575 |
575 |
575 | 575 | 575 |
Rake |
44 |
44 |
44 |
44 |
44 |
44 | 44 | 44 |
Seatpost min insertion |
410 |
410 |
420 |
420 |
435 |
435 | 460 | 460 |
