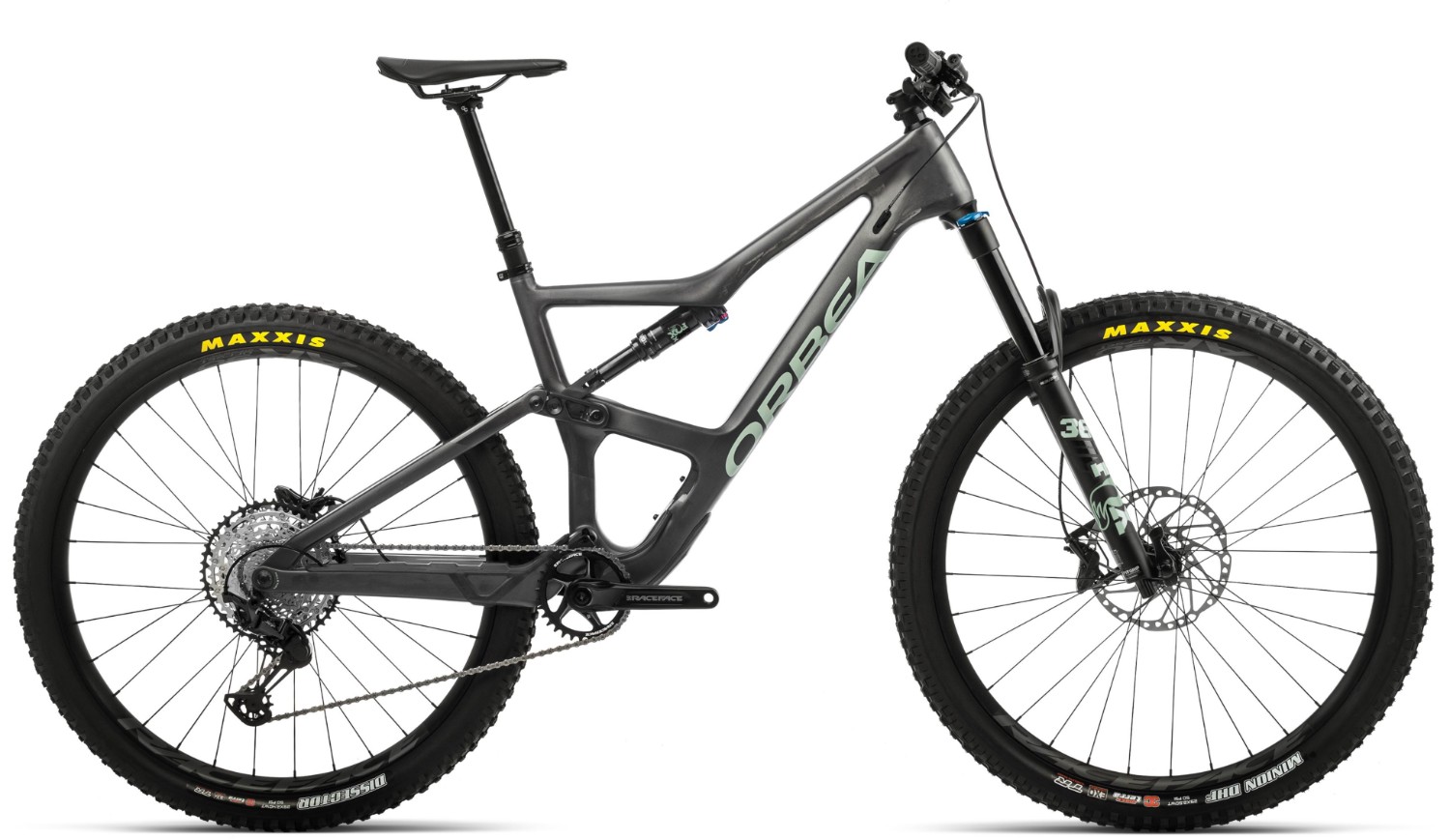

Orbea Occam M30 LT Mountain Bike 2023 - Trail Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels |
| Fork | Fox 36 Float Performance 150 Grip 3-Position QR15x110 |
| Rear Shock | Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | OC1 3D Forged 35mm interface 7º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano M6120 Hydraulic Disc |
| Rear Brake | Shimano M6120 Hydraulic Disc |
| Brake Lever | Shimano M6120 |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Hub | Race Face AR 30c Tubeless Ready |
| Rear Hub | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Rear Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Seat Post | OC Mountail Control MC20, 31.6mm, Dropper |
| Saddle | Fizik Taiga S-alloy rail |
| Chainset | Race Face Aeffect 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
