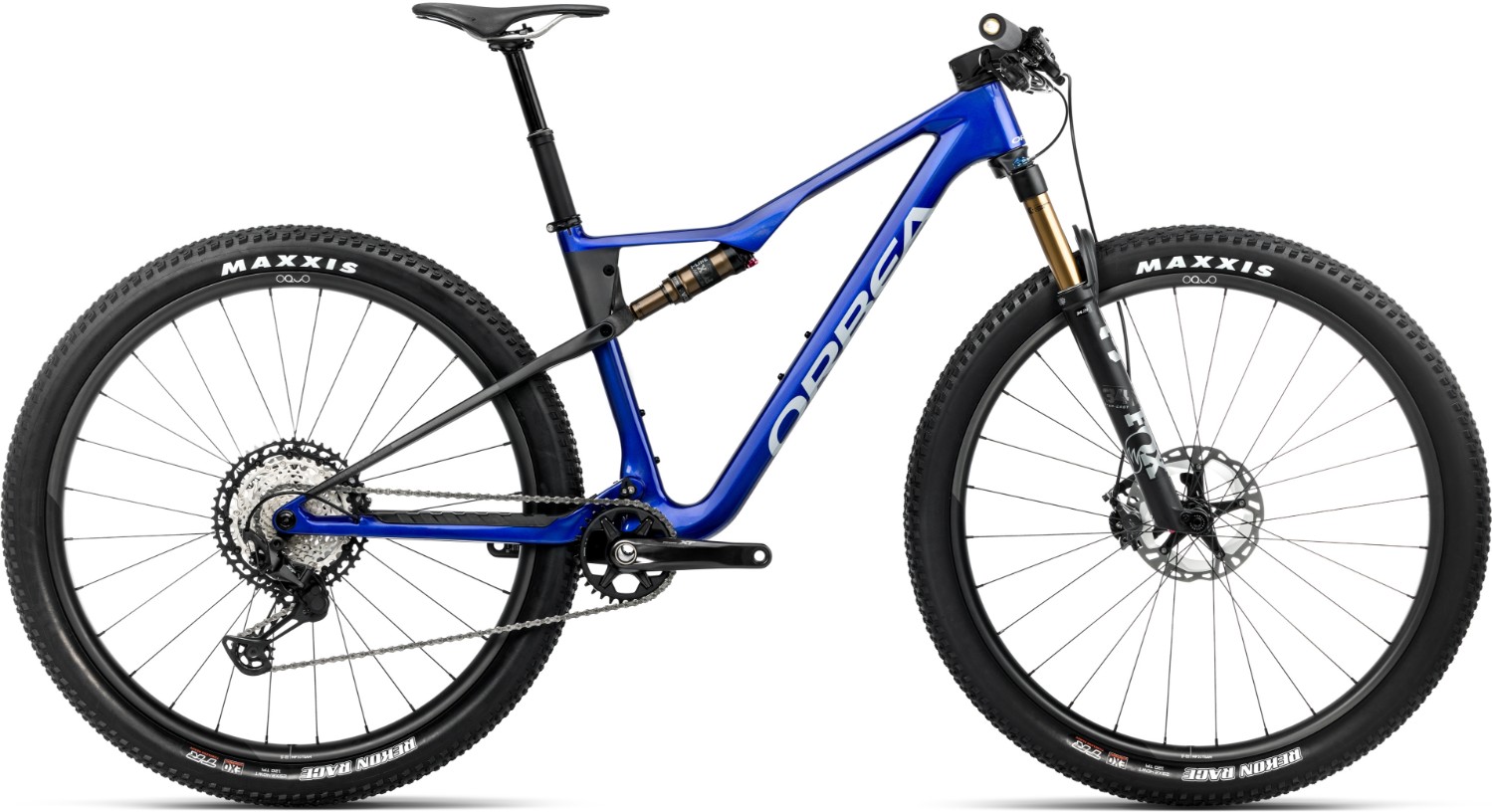

Orbea Oiz M-Pro Mountain Bike 2025 - XC Full Suspension MTB
The Orbea Oiz M-Pro is an uncompromising XC race bike designed for control off-road. Its modern geometry features a steep seat tube angle and low stack, keeping you in full control. The longer reach ensures stability on descents while maintaining an aggressive position for attacking climbs. Whether you're pushing for a podium or setting personal bests, the Oiz M-Pro is tuned for maximum efficiency.
Key Features:
- OMX Carbon frame – Orbea's lightest, stiffest carbon fibre for top-tier performance
- Fox 34 Float SC Factory fork – 120mm travel, FIT4 Remote-Adjust, Kashima coating for smooth control
- Fox Float SL Factory rear shock – 120mm travel, Kashima custom tune, remote lockout
- Shimano XT M8100 drivetrain – 12-speed precision shifting for ultimate efficiency
- Shimano XT M8100 hydraulic disc brakes – Reliable stopping power in all conditions
- Oquo Mountain Performance MP30TEAM wheels – Lightweight with Maxxis Rekon Race 2.4” tyres for grip
- Integrated Squidlock remote – Controls both suspension and dropper post for race-ready efficiency
- Available with 0% APR finance
Designed specifically for 120mm of race-tuned travel, the Oiz offers an exceptional balance of efficiency and confidence. The Fox 34 Float SC Factory fork and Fox Float SL Factory rear shock provide plush, controlled suspension performance, while the Squidlock remote allows instant adjustment on the fly.
Orbea’s OMX carbon is the pinnacle of carbon fibre engineering, delivering an ultra-lightweight yet incredibly stiff frame. Combined with the Fiberlink system and I-Line shock integration, the Oiz M-Pro maximises power transfer while keeping weight to an absolute minimum.
The patented I-Line system routes the shock lockout cable internally for the cleanest, most efficient design. This means less cable clutter, reduced friction, and ultimate reliability when every second counts.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock |
| Fork | Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push to Lock QR15x110 Kashima |
| Rear Shock | Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Performance MP10 Alu SL, -10º |
| Bars | OC MP10 Mountain Performance Carbon, Width 760, Sweep 9 |
| Front Brake | Shimano XT M8100 Hydraulic Disc |
| Rear Brake | Shimano XT M8100 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano XT M8100 I-Spec EV |
| Speed | 12 |
| Rims | Oquo Mountain Performance MP30TEAM |
| Front Tyre | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Rear Tyre | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Seat Post | OC Mountain Performance DP-MP10, 31.6mm, Dropper |
| Saddle | Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm |
| Chainset | Shimano XT M8120 32t |
| Chain | Shimano M8100 |
| Cassette | Shimano CS-M8100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Oiz 2025 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
155 - 170 |
61.1" - 66.9" |
|
M |
165 - 180 |
65.0" - 70.9" |
|
L |
178 - 190 |
70.1" - 74.8" |
|
XL |
185 - 198 |
72.8" - 78.0" |
Orbea Oiz 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 596 | 596 | 606 | 619 |
| Reach | 425 | 450 | 472 | 496 |
| Head Tube Length | 90 | 90 | 100 | 115 |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Bottom Bracket Height | 333 | 333 | 333 | 333 |
| Bottom Bracket Drop | 42 | 42 | 42 | 42 |
| Trail | – | – | – | – |
| Fork Length | 531 | 531 | 531 | 531 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Centre | – | – | – | – |
| Chainstay Length | 432 | 432 | 432 | 432 |
| Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Top Tube Length (horizontal) | 575 | 598 | 623 | 650 |
| Standover Height | 731 | 741 | 741 | 750 |
| Seat Tube Length | 405 | 432 | 460 | 510 |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
