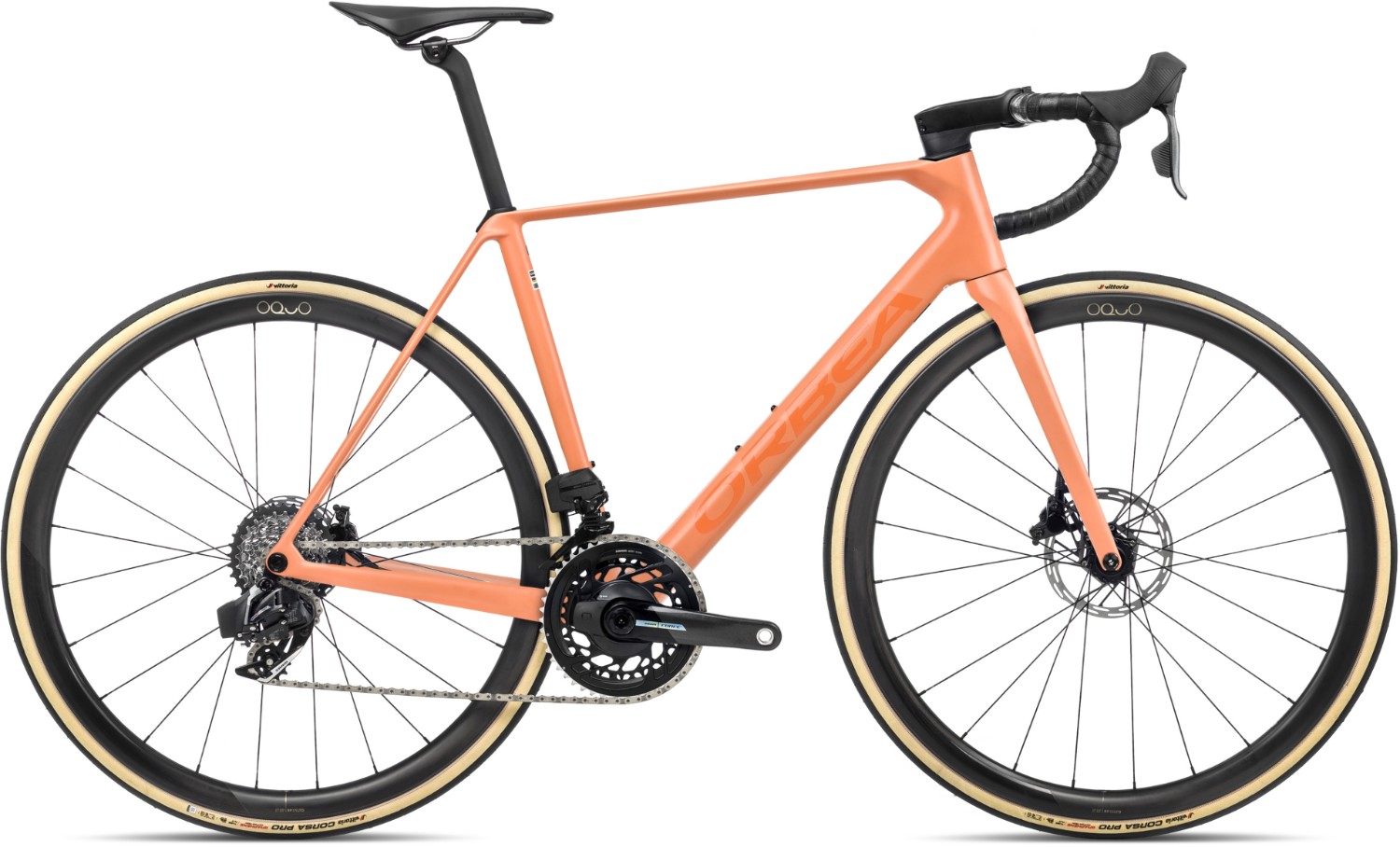

Orbea Orca M21eLTD PWR 2024 - Road Bike
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!
Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.
But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.
There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.
Our clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.
Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP10, -8º |
| Bars | OC Road Performance Carbon RP11, Reach 80, Drop 125, w/Di2 hole |
| Front Brake | Sram Force AXS |
| Rear Brake | Sram Force AXS |
| Front Mech | SRAM Force eTap AXS |
| Rear Mech | SRAM Force AXS 12s |
| Shifters | SRAM Force AXS |
| Speed | 24 |
| Rims | OQUO Road Performance RP35 LTD Carbon |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tyre | Vittoria Corsa Pro G2.0 TLR 700x28c |
| Rear Tyre | Vittoria Corsa Pro G2.0 TLR 700x28c |
| Seat Post | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Vento Antares R3 Kium Rail 140mm |
| Chainset | SRAM Force AXS Powermeter Dub 35x48t |
| Chain | SRAM Force 12-speed |
| Cassette | SRAM XG-1270 10-33t 12-Speed |
Orbea Orca 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Top Tube Length (horizontal) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Standover Height | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Seat Tube Length | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
