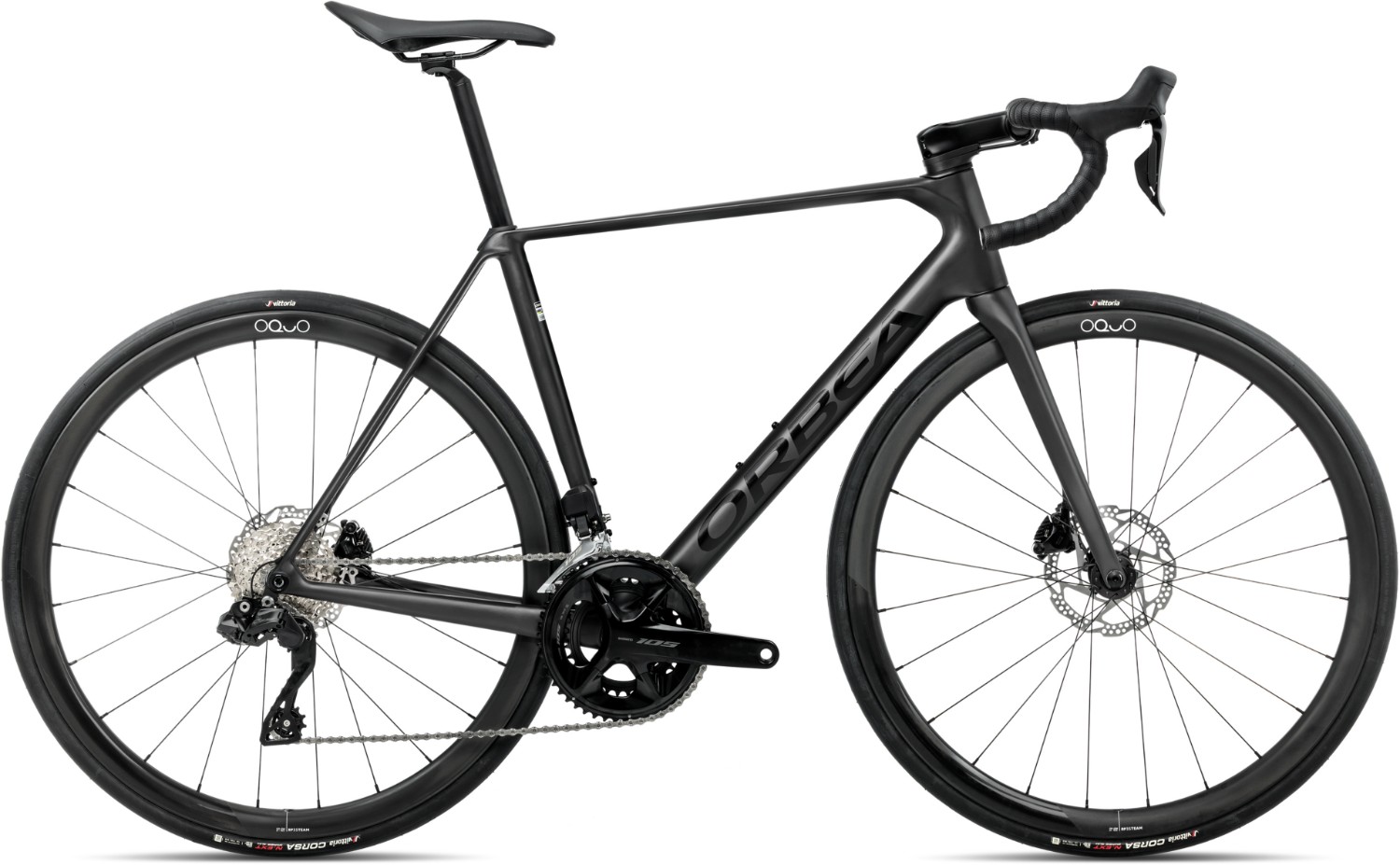

Orbea Orca M35i 2025 - Road Bike
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.
But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.
Clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP22, -5º |
| Bars | OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125 |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Front Mech | Shimano 105 Di2 R7150 |
| Rear Mech | Shimano 105 Di2 R7150 |
| Shifters | Shimano Di2 R7170 |
| Speed | 24 |
| Rims | Oquo Road Performance RP35TEAM, carbon Mini Hook rim, 35mm profile, Zipp ZR1 hub, 21mm internal width, Sapim Sprint TCS Oxi spokes, 700C |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Hollow |
| Front Tyre | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Rear Tyre | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Seat Post | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chainset | Shimano 105 R7100 34x50t |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Pedals | Resin Platform |
Orbea Orca 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Top Tube Length (horizontal) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Standover Height | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Seat Tube Length | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
