Orbea Ordu M30i LTD 2023 - Triathlon Bike

Name: Orbea Ordu M30i LTD 2023 - Triathlon Bike
Brand: Orbea

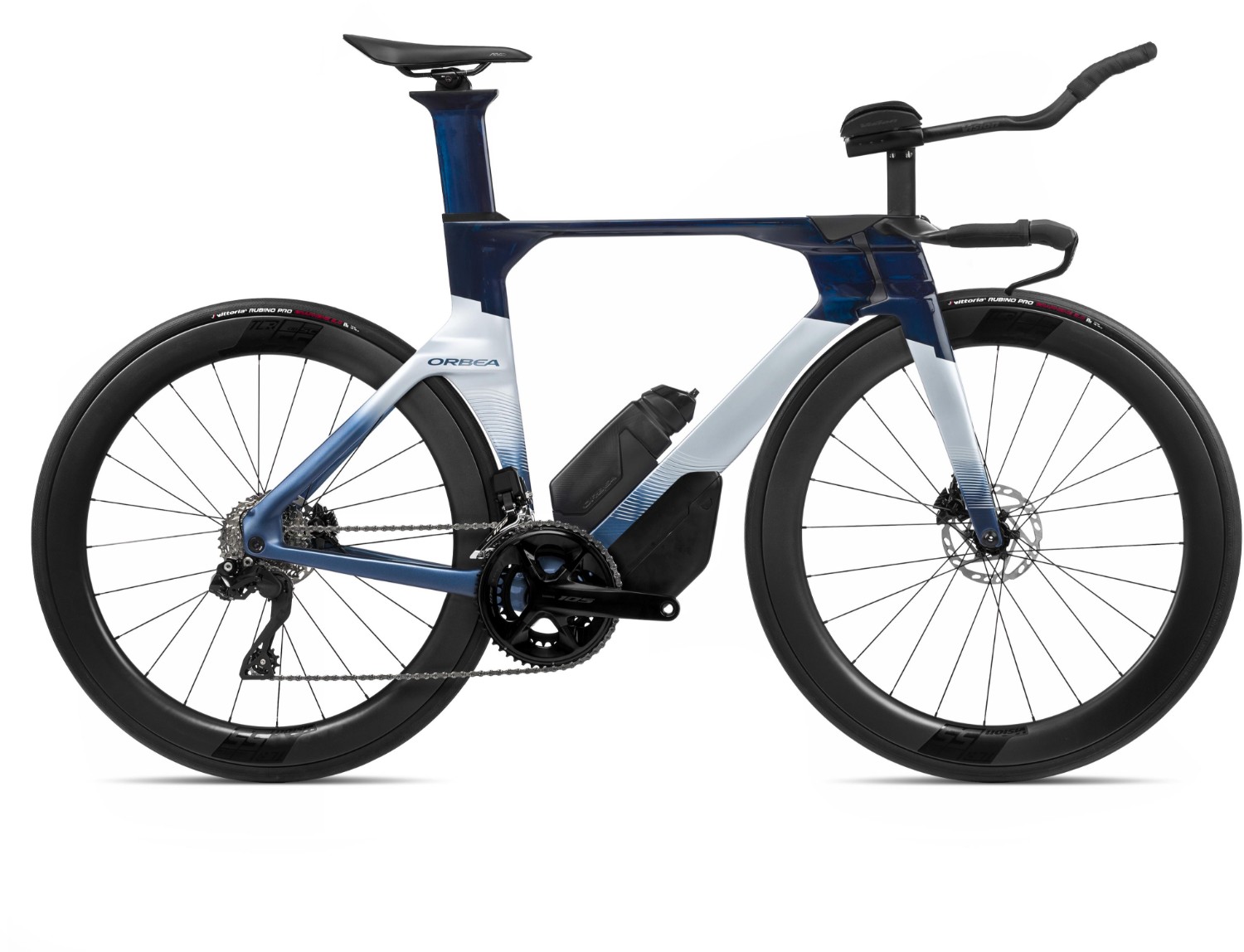

Orbea Ordu M30i LTD 2023 - Triathlon Bike product image

Just like triathlon is a competition of multiple disciplines, Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics. Once you have experienced Ordu’s multiple strengths, it is impossible to feel confident with a lesser machine. For those who aim to be the fastest, most efficient and decorated athletes, Ordu is the future. You and triathlon will never be the same again.

Perfect Balanace

Historically, considering only the three design factors of aerodynamics, stiffness and weight rarely yeilds dramatic improvement. Big gains in one of the three areas always compromise one or both of the others.

The key to building the best triathlon bike is finding the balance of these targets, and identifying additional performance factors that allow the rider to increase efficiency.

Ergonomics

Ordu is designed to fit the widest possible range of riders. The ergonomics are easily modified over a huge range with just a few adjustment points, easily adaptable for any rider or race regulations. It doesn’t matter if you’re very flexible or not…Ordu will meet your needs.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing.
Fork	Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, thread M12x2P1, Speed release compatible dropout. UCI Legal.
Headset	FSA 1-1/8"-1" Integrated Aluminium Cup
Bars	Orbea Ordu OMX
Front Brake	Shimano R9270 Hydraulic Disc
Rear Brake	Shimano R9270 Hydraulic Disc
Front Mech	Shimano 105 Di2 R7150
Rear Mech	Shimano 105 Di2 R7150
Shifters	Shimano R9180
Speed	24
Rims	Vision 55 SC Disc Carbon TLR CL
Front Hub	Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Hub	Orbea Thru Axle 12x142mm M12x2 P1 Lite
Front Tyre	Vittoria Rubino Pro IV G2.0 700x25c
Rear Tyre	Vittoria Rubino Pro IV G2.0 700x25c
Seat Post	Orbea Ordu OMX
Saddle	Fizik Argo Vento R5 size 140mm
Chainset	Shimano 105 R7100 34x50t
Chain	Shimano M7100
Cassette	Shimano 105 R7100 11-34t 12-Speed

Orbea Ordu Size chart

HEIGHT ( CM )	HEIGHT ( IN )	SIZE
152-165	59.8"-65.0"	XS
160-172	63.0"-67.7"	S
167-180	65.7"-70.9"	M
175-187	68.9"-73.6"	L
182-195	71.7"-76.8"	XL

SIZE		XS	S	M	L	XL
1 - SEAT TUBE (C-T)		493	508	533	559	587
2 - TOP TUBE (EFF)		469	494	519	544	575
3 - HEAD TUBE		71.6	85	103.7	128	154
4 - CHAINSTAY		405
5 - BB HEIGHT		280	268	268	268	268
6 - BB DROP		60	72	72	72	72
7 - WHEELBASE		966	988.5	995.4	1018,7	1041
8 - HEAD ANGLE		71º	71º	72.5º	73º	73º
9 - SEAT ANGLE		78º	78º	78º	78º	77º
10 - STANDOVER		760	775	780	825	850
11 - REACH		370	390	410	430	445
12 - STACK		465	490	515	540	565
13 - FORK LENGTH		375
14 - RAKE		53	53	45	45	45

SIZE	CRANK	STEM	HANDLEBAR
XS	165	90	410
S	170	100	410
M	170	100	410
L	170	110	410
XL	172	110	410

* The handlebar size is centre-centre

HEIGHT ( CM )	HEIGHT ( IN )	SIZE
152-165	59.8"-65.0"	XS
160-172	63.0"-67.7"	S
167-180	65.7"-70.9"	M
175-187	68.9"-73.6"	L
182-195	71.7"-76.8"	XL
