(no reviews)Product ID: 269027

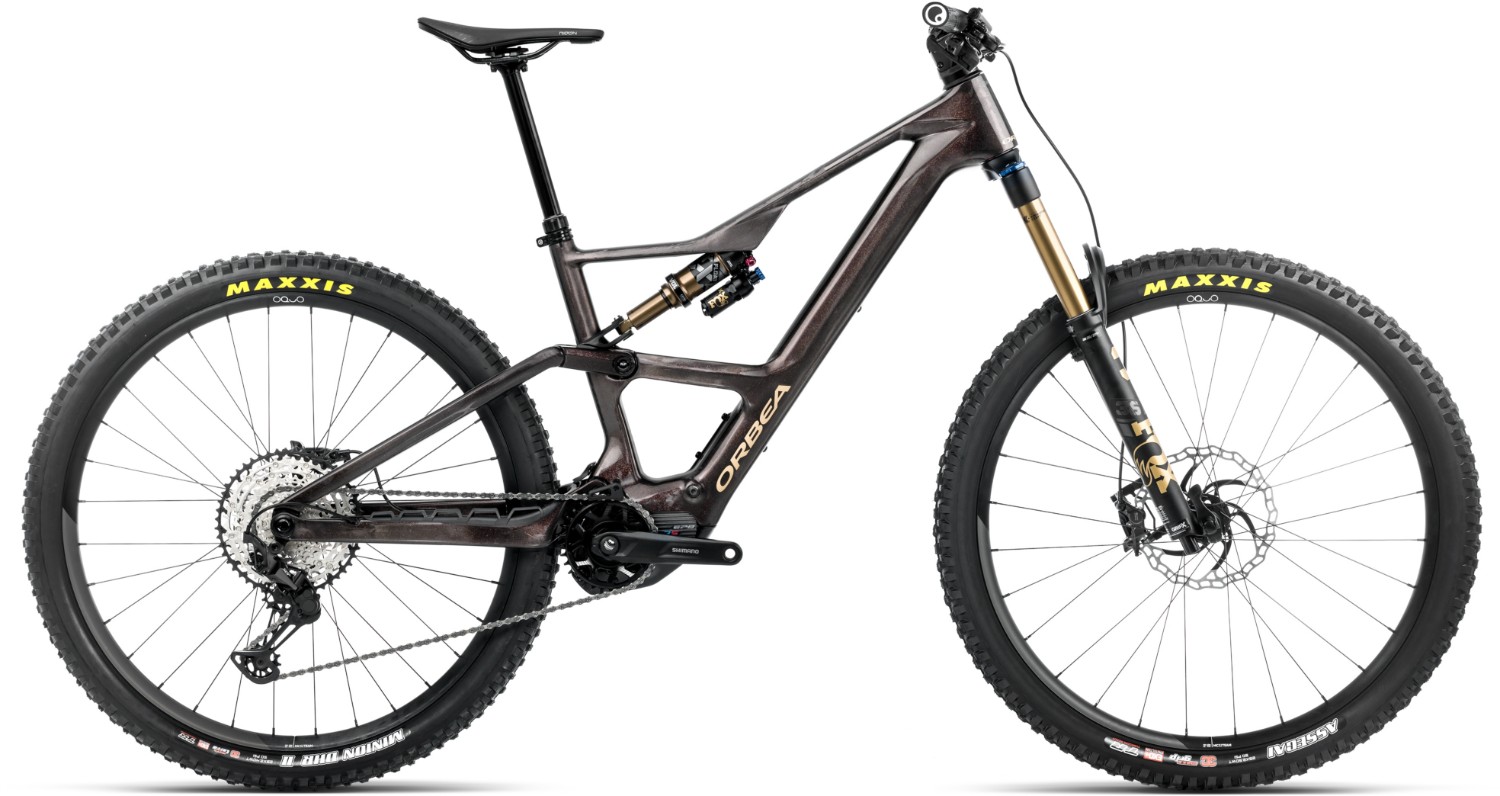

Orbea Rise LT M10 420W 2025 - Electric Mountain Bike
This is what Orbea means when they say “Less E, More Bike”; it means that your bike works with you to turn every trail, feature, and corner into pure joy. The Shimano EP motors run Orbea ́s next generation RS firmware which gives an incredibly natural ride while letting riders set a maximum torque of 85 Nm. Rise ́s custom batteries have the highest energy density currently on the market, meaning massive range in a lightweight package.
Rise LT is the bike for trail shredders, with a 160mm Fox 36 fork paired with 150mm of supple, progressive travel. The aggressive trail geometry is modern giving the bike confident but fun handling on the most technical trails. Orbea increased the progressivity of the suspension curve to 23% which gives a great balance for a trail bike and also works well with either air or coil shocks.
“Less e more bike”, means forgetting about range anxiety. The natural RS Gen2 assistance works with you to involve you in the ride, providing power where it is needed and conserving battery life elsewhere.
16% More Riding In Every Gram: Orbea's latest generation of batteries offer more power without adding extra weight, giving an energy density better than any other battery currently on the market. The result is more range, without increased weight. Orbea riders are regularly clocking up more than 3000m of climbing on a single charge with the bigger batteries.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Rise OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 36 Float Factory 160 Grip X QR15x110 Kashima |
| Rear Shock | Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Speed | 12 |
| Rims | OQUO Mountain Control MC32TEAM |
| Front Tyre | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tyre | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Terra Ridon X5 145mm |
| Chainset | Shimano Steps EM600 |
| Chain | Shimano M7100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Battery Size (WH) | Orbea Internal 420Wh |
| Motor | Shimano EP801 |
Orbea Rise LT 2025 Size Chart
|
Size |
Height (Cm) |
Height (Feet) |
|
S |
150 - 170 |
59.1" - 65.0" |
|
M |
160 - 180 |
63.0" - 68.9" |
|
L |
170 - 190
|
66.9" - 72.8" |
|
XL |
180 - 200 |
70.9" - 78.0" |
Orbea Rise LT 2025 Geometry Chart
| Size | S - High | S - Low | M - High | M - Low | L - High | L - Low | XL - High | XL - Low |
|---|---|---|---|---|---|---|---|---|
| Stack | 623 | 628 | 648 | 652 | 659 | 663 | 671 | 675 |
| Reach | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |
| Head Tube Length | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Head Tube Angle | 64.5° | 64° | 64.5° | 64° | 64.5° | 64° | 64.5° | 64° |
| Bottom Bracket Drop | 26 | 34 | 26 | 34 | 26 | 34 | 26 | 34 |
| Fork Length | 575 | 575 | 575 | 575 | 575 | 575 | 575 | 575 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Chainstay Length | 440 | 442 | 440 | 442 | 440 | 442 | 440 | 442 |
| Wheelbase | 1201 | 1203 | 1228 | 1230 | 1258 | 1259 | 1287 | 1288 |
| Top Tube Length (horizontal) | 569 | 570 | 595 | 596 | 622 | 623 | 649 | 650 |
| Seat Tube Length | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Seat Tube Angle | 77.5° | 77° | 77.5° | 77° | 77.5° | 77° | 77.5° | 77° |
| Seatpost Max Insertion | 295 | 295 | 305 | 305 | 320 | 320 | 350 | 350 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
