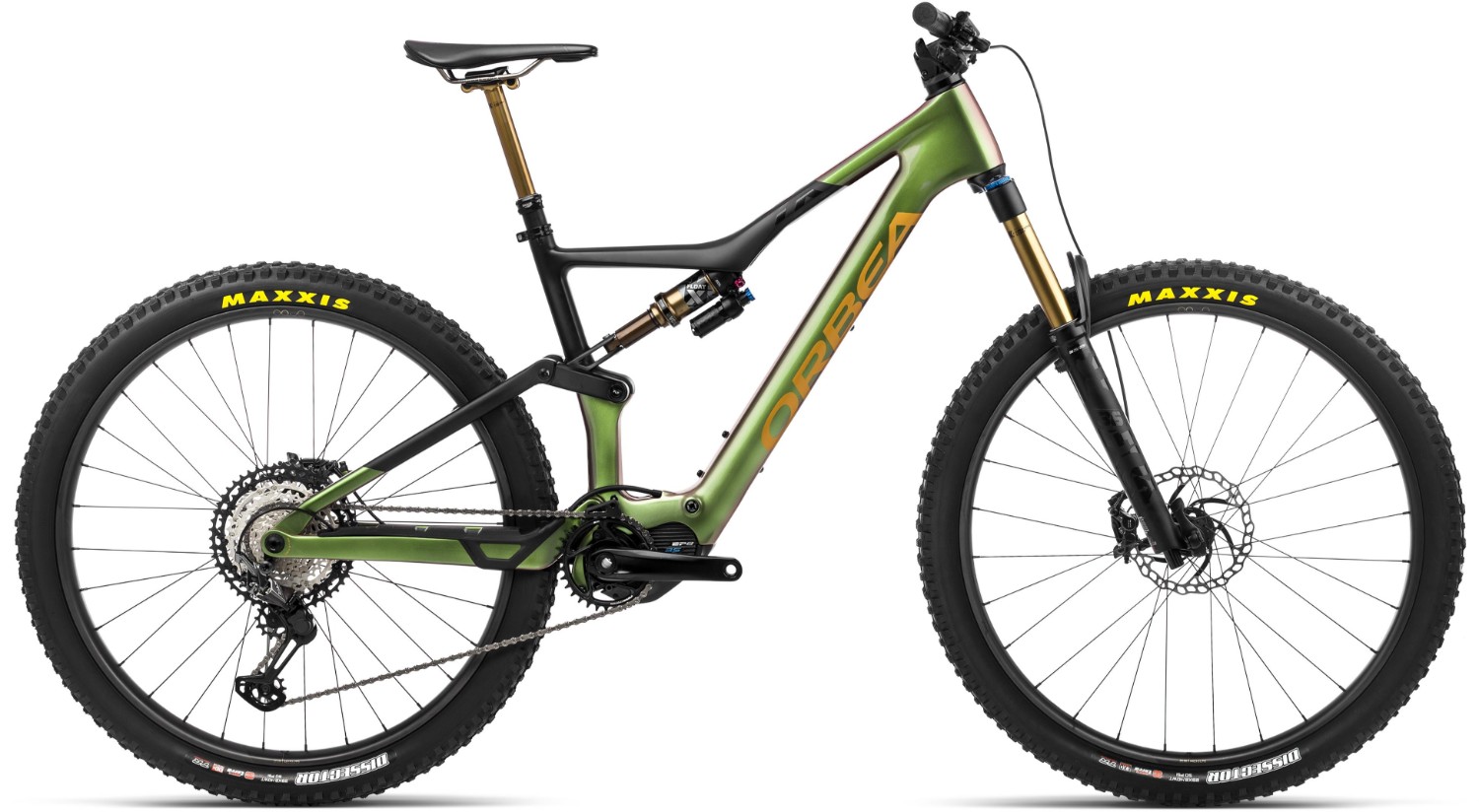

Orbea Rise M-Team 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Rise Evo OMR 2023, 140mm travel, 29 wheels, Concentric Boost 12x148 |
Fork | Fox 36 Float Factory 150 Grip2 QR15x110 Kashima |
Rear Shock | Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm |
Headset | Alloy 1-1/2", Black Oxidated Bearing |
Stem | OC Mountain Control MC10 Alu SL, 0º |
Bars | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
Front Brake | Shimano XT M8120 Hydraulic Disc |
Rear Brake | Shimano XT M8120 Hydraulic Disc |
Rear Mech | Shimano XT M8150 SGS Shadow Plus |
Shifters | Shimnano M8150 |
Speed | 12 |
Front Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
Rear Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
Seat Post | Fox Transfer Factory Kashima Dropper 31.6 |
Saddle | Fizik Taiga Kium rail |
Chain | Shimano M8100 |
Cassette | Shimano CS-M8100 10-51t 12-Speed |
Battery Size (WH) | Orbea Internal 360Wh |
Motor | Shimano EP8 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Orbea Rise M-Team 2023 - Electric Mountain Bike.
This product is no longer available.
