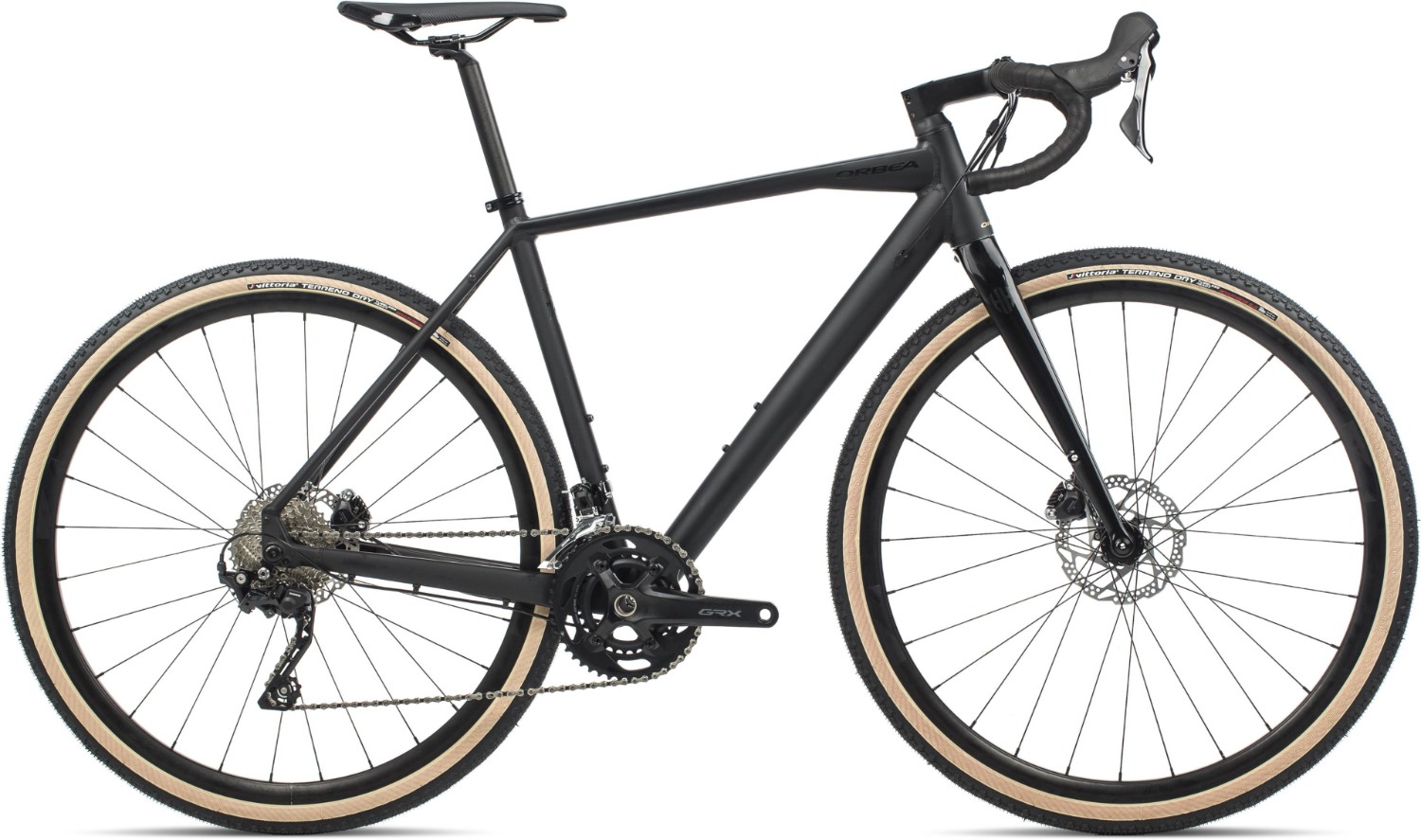

Orbea Terra H40 2021 - Gravel Bike
Of course you’re not lost, you just aren’t quite sure if this road is the quickest route to the next ridge. The weather is great, you’ve got all day and you’re riding Terra, so keep the wheels rolling. If route-finding, taking the long way home and straying from the beaten path are your ideas of fun, there is no better tool than Terra for unlocking your desire to explore.
Control in a variety of circumstances. Terra is designed to be at home on dirt, gravel or just about anything else you might encounter.
Terra ergonomics work for cyclocross, all-day rides and the occasional long training day on the road.
Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to maxi mize rider comfort.
Terra can fill several roles - Gravel, Road, CX, Winter Training or Commuting. Tire Clearance, the ability to mount accessories like mud guards combined with a functional All-Road Geometry means that Terra can change with the seasons.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8"-1,5", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system |
Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8"-1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system |
Headset | FSA 1-1/8-1-1/2" Integrated Carbon Cup ACB Bearings |
Stem | OC1 31.8mm interface -6º |
Bars | OC1 All Road, reach 80mm, drop 125mm, flare 12º |
Front Brake | Shimano RX400 Hydraulic Disc |
Rear Brake | Shimano RX400 Hydraulic Disc |
Front Mech | Shimano GRX RX400 |
Rear Mech | Shimano RD-RX400 |
Shifters | Shimano ST-RX400 |
Speed | 20 |
Rims | Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H |
Front Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c |
Rear Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c |
Seat Post | OC2 27.2 Offset 20 |
Saddle | Selle Royal Seta RS |
Chainset | Shimano GRX RX600-10 30x46t |
Chain | KMC X10 |
Cassette | Shimano Tiagra HG-500 11-34t 10-Speed |
Orbea Terra 2021 Size Chart
Size |
Height (cm) |
Height (inches) |
XXS | 153 - 165 | 60.2" - 65.0" |
XS | 166 - 173 | 65.4" - 68.1" |
S | 174 - 177 | 68.5" - 69.7" |
M | 178 - 188 | 70.1" - 74.0" |
L | 189 - 192 | 174.4" - 75.6" |
XL | > 192 | > 75.6" |
Orbea Terra 2021 Geometry
SIZE | XXS | XS | S | M | L | XL |
---|---|---|---|---|---|---|
SEAT TUBE (C-T) | 455 | 485 | 515 | 545 | 575 | 605 |
TOP TUBE (EFF) | 512 | 529 | 542 | 560 | 575 | 588 |
HEAD TUBE | 100 | 120 | 139 | 162 | 187 | 205 |
CHAINSTAY | 430 | |||||
BB HEIGHT | 285 | |||||
BB DROP | 70 | 70 | 68 | 66 | 66 | 66 |
WHEELBASE | 1005 | 1015 | 1020 | 1034 | 1046 | 1052 |
HEAD ANGLE | 70,5 | 71 | 72 | 72 | 72,3 | 73 |
SEAT ANGLE | 74,5 | 74 | 74 | 73,5 | 73,5 | 73,5 |
STANDOVER | 763 | 787 | 813 | 839 | 866 | 890 |
REACH | 366 | 373 | 380 | 387 | 394 | 401 |
STACK | 525 | 545 | 565 | 585 | 610 | 630 |
FORK LENGTH | 400 | |||||
RAKE | 51mm | |||||
WHEEL SIZE | 702 |
What size frame do I need if I am between sizes? - read here
