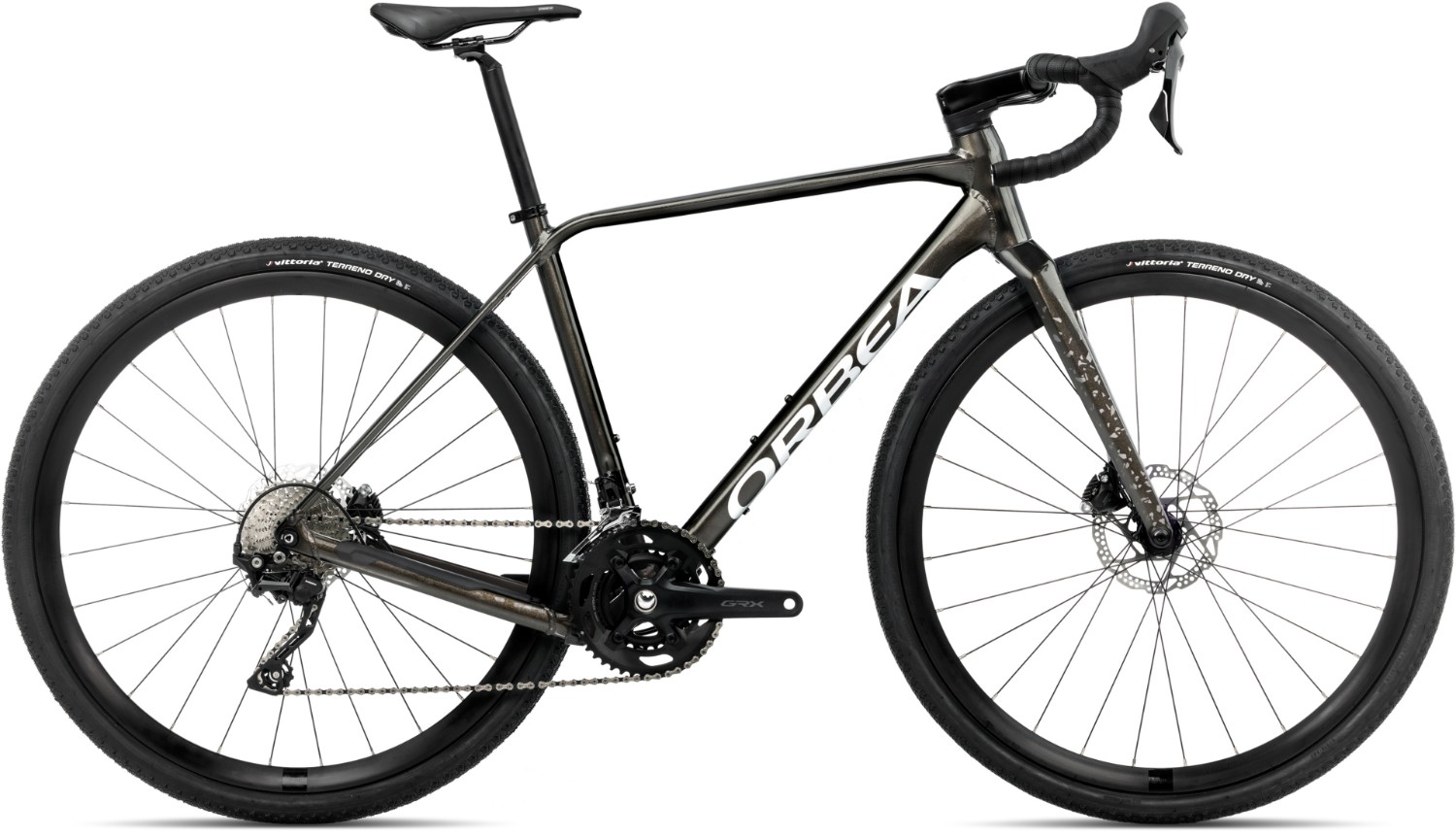

Orbea Terra H40 2025 - Gravel Bike
- Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
- Designing the frame from the ground up gave Orbea the opportunity to tackle a problem which exists in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.
- The Oquo Road Control range lets you keep on riding long after the road ends. With a focus on robustness and comfort, these are the perfect addition to amp up your adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP22, -5º |
| Bars | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Front Brake | Shimano RX400 Hydraulic Disc |
| Rear Brake | Shimano RX400 Hydraulic Disc |
| Front Mech | Shimano GRX RX400 |
| Rear Mech | Shimano RD-RX400 |
| Shifters | Shimano ST-RX400 |
| Speed | 20 |
| Rims | Alloy, Tubeless, 700c, 21c |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Front Tyre | Vittoria Terreno Dry Gravel 700x38c |
| Rear Tyre | Vittoria Terreno Dry Gravel 700x38c |
| Seat Post | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Prologo Akero AGX black rails size 155mm |
| Chainset | Shimano GRX RX600-10 30x46t |
| Chain | KMC X10 |
| Cassette | Shimano Tiagra HG-500 11-34t 10-Speed |
| Pedals | Resin Platform |
Orbea Terra 2025 Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (in) |
|
XS |
155 – 166 |
61.1” – 65.4” |
|
S |
167 - 172 |
65.7” – 67.7” |
|
M |
173 - 179 |
68.1” – 70.5” |
|
L |
180 - 185 |
70.9” – 72.8” |
|
XL |
186 – 191 |
73.2” – 75.2” |
|
XXL |
192 – 207 |
75.6” – 81.5” |
Orbea Terra 2025 Geometry Chart
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack | 526 | 548 | 570 | 592 | 614 | 636 |
| Reach | 375 | 382 | 389 | 395 | 402 | 409 |
| Head Tube Length | 110 | 131 | 152 | 178 | 199 | 220 |
| Head Tube Angle | 70° | 70.5° | 71° | 71° | 71.5° | 72° |
| Bottom Bracket Height | 263/278 | 263/278 | 263/278 | 265/280 | 265/280 | 265/280 |
| Bottom Bracket Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| Trail | 66/71 | 62/68 | 59/64 | 59/64 | 56/61 | 53/58 |
| Fork Length | 390 | 390 | 390 | 390 | 390 | 390 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
| Top Tube Length (horizontal) | 526 | 539 | 558 | 570 | 590 | 603 |
| Standover Height | 713/727 | 746/755 | 768/783 | 798/813 | 825/840 | 853/868 |
| Seat Tube Length | 405 | 438 | 471 | 504 | 537 | 570 |
| Seat Tube Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
