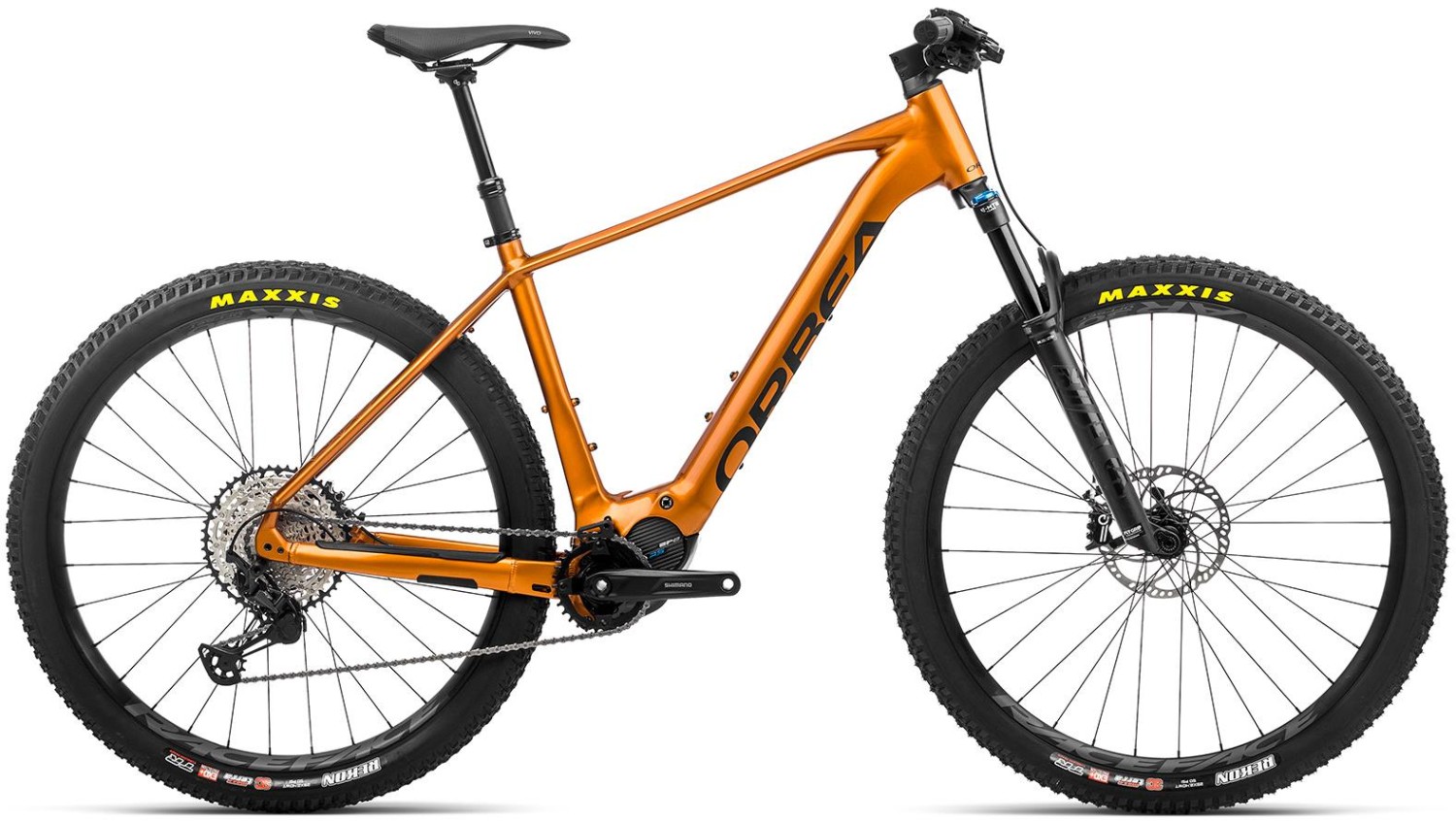

Orbea Urrun 10 2022 - Electric Mountain Bike
Urrun means “far” in the Basque language. Without a doubt, the Orbea Urrun Electric Mountain bike is an e-bike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come. With new technologies and innovative integrations, it’s safe to say we are proud to have Urrun in the family. Escape, enjoy bigger adventures, go further and explore harder. There are no more excuses.
Urrun is ready for life, family and adventure. Our RS Concept with Rise, this is a new riding experience that enhances the joy of biking with smooth assistance that feels as natural and alive as your own body. The lighter weight EP8 RS motor, a 120mm fork and trail ready components mean that Urrun is ready to explore those distant horizons.
Key Features:
- Hydroformed Alloy 6061 series with Internal Cable Routing
- Fox 34 Float Performance forks with 120mm of travel help keep you in control
- Magura MT5 brakes give you the stopping power no matter the weather
- Shimano XT gears give you the range you need for any climb
- Sizes: S, M, L, XL
- Colours: Leo Orange/Black, Glitter Anthracite/Black, Borealis Blue/Luminous Yellow
- The Orbea Urrun 10 is available with 0% APR finance
Drive Information:
- Motor: Shimano EP8-RS
- Battery: Orbea RS internal 540wh
- Interface: Shimano SC-EM800
Natural Power
Urrun uses the same EP8 RS motor as the Rise, developed in partnership with Shimano, to give the most natural-feeling riding experience. Lightweight, quiet, and responsive but above all efficient, Urrun feels as natural and alive as your own body.
A Better Battery
Urrun is all about long rides and big adventures. The highly optimised battery offer cutting edge energy density, allowing us to fit more riding into a smaller space, improving aesthetics and reducing weight. Urrun has enough assistance for around 3500m or up to 8 hours of riding.
Innovate and Intergrate
Urrun brings with it many cutting edge technologies aimed at simplifying the design and removing unnecessary weight. As beautiful to look at as it is to ride, Urrun hardly even looks like an e-bike.
Next Generation Aluminium Frames
Next generation aluminium means hydroformed frames, butted tubes and polished welds. It looks great of course, matching the aesthetics of a carbon frame, but more important are the performance benefits and fatigue resistance. We are so confident in our frames that every one comes with a lifetime warranty.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Urrun, max 792Wh, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC1 35mm interface -6º |
| Bars | OC 35mm 20mm Rise 780mm |
| Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano XT M8100 |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR |
| Rear Tyre | Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR |
| Seat Post | OC MC20 Mountain Control Dropper, 31,6mm, 100mm travel |
| Saddle | Selle Royal Vivo |
| Chainset | Shimano Steps EM600 Alloy EP8 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | VP-537 Black |
| Battery Size (WH) | Orbea RS Internal 540Wh |
| Motor | Shimano EP8-RS |
| User Interface | Shimano SC-EM800 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
