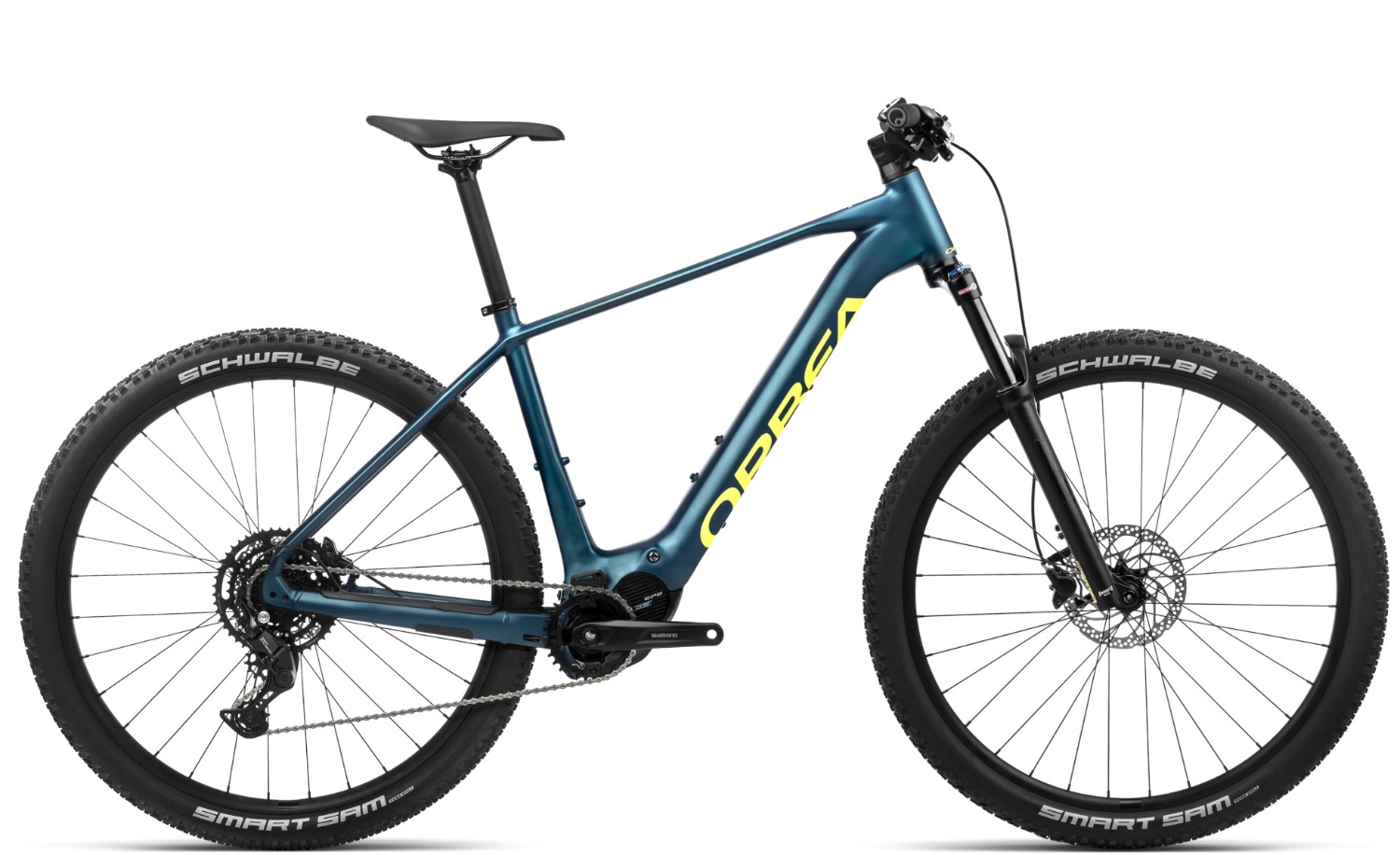

Orbea Urrun 40 2024 - Electric Mountain Bike
The Orbea Urrun 40 is designed for riders seeking longer rides and bigger adventures. Built with a hydroformed alloy frame, it features a Shimano EP600 motor and a 540Wh battery, providing smooth, natural-feeling assistance. The bike’s 120mm front suspension, 29" wheels, and trail-ready components ensure a comfortable and confident ride across diverse terrains.
Key Features:
- Frame: Hydroformed Alloy 6061, internal cable routing, Boost 148x12.
- Front Suspension: SR Suntour XCR32 LO Coil, 120mm travel for smooth rides.
- Drivetrain: Shimano CUES 9-speed, reliable and versatile shifting.
- Brakes: Shimano MT201 hydraulic disc brakes for consistent stopping power.
- Wheels: 29" alloy rims with Schwalbe Smart Sam Performance 29x2.35" tyres.
- Standout Feature: Integrated battery design for sleek aesthetics.
- Finance: Available with 0% APR finance.
Drive Information:
- Motor: Shimano EP600, lightweight and responsive, with 60Nm of torque.
- Battery: Orbea Internal 540Wh, optional 250Wh range extender available.
- User Interface: Shimano EN500 display with remote switch for easy control.
The Orbea Urrun 40 redefines e-bike adventures with its seamless blend of power, performance, and aesthetics. The lightweight hydroformed alloy frame offers both durability and a sleek look, with polished welds that match the aesthetics of a carbon frame. Internal cable routing keeps the bike looking clean and reduces maintenance.
Powered by the Shimano EP600 motor, the Urrun 40 delivers smooth and natural-feeling assistance, enhancing the joy of riding without overwhelming the experience. The 540Wh battery provides ample power for long rides, with an optional 250Wh range extender available for those who want to explore even further. With enough assistance for around 3500m of elevation gain or up to 8 hours of riding, the Urrun 40 is perfect for all-day adventures.
The SR Suntour XCR32 LO Coil fork with 120mm of travel ensures a comfortable ride over rough terrain, while the Shimano CUES 9-speed drivetrain offers precise shifting across a wide range of gears. The bike’s 29" wheels, equipped with Schwalbe Smart Sam Performance tyres, provide excellent traction and stability on various surfaces.
The Shimano MT201 hydraulic disc brakes offer reliable stopping power in all conditions, giving you confidence whether you're cruising downhill or navigating technical trails. With its integrated battery design and clean lines, the Urrun 40 hardly even looks like an e-bike, making it as beautiful to look at as it is to ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | SR Suntour XCR32 LO Coil 120mm Q15x110 Boost |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | Alloy forged, 35mm interface, -6º, ICR |
| Bars | OC Mountain Control MC31, Rise20, Width 800 |
| Front Brake | Shimano MT201 Hydraulic Disc |
| Rear Brake | Shimano MT201 Hydraulic Disc |
| Brake Lever | Shimano MT201 |
| Rear Mech | Shimano Cues U4000 GS Shadow |
| Shifters | Shimano Cues SL-U4000 |
| Speed | 9 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Schwalbe Smart Sam Performance, 29x2.35, Addix, Black |
| Rear Tyre | Schwalbe Smart Sam Performance, 29x2.35, Addix, Black |
| Seat Post | Alloy 31.6x300mm Offset 0 |
| Saddle | Fortune QF-3091 |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG300 11-46t 9-Speed |
| Pedals | VP-537 Black |
| Battery Size (WH) | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Motor | Shimano EP600 |
| User Interface | Shimano EN500 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Orbea Urrun 40 2024 - Electric Mountain Bike.
This product is no longer available.
