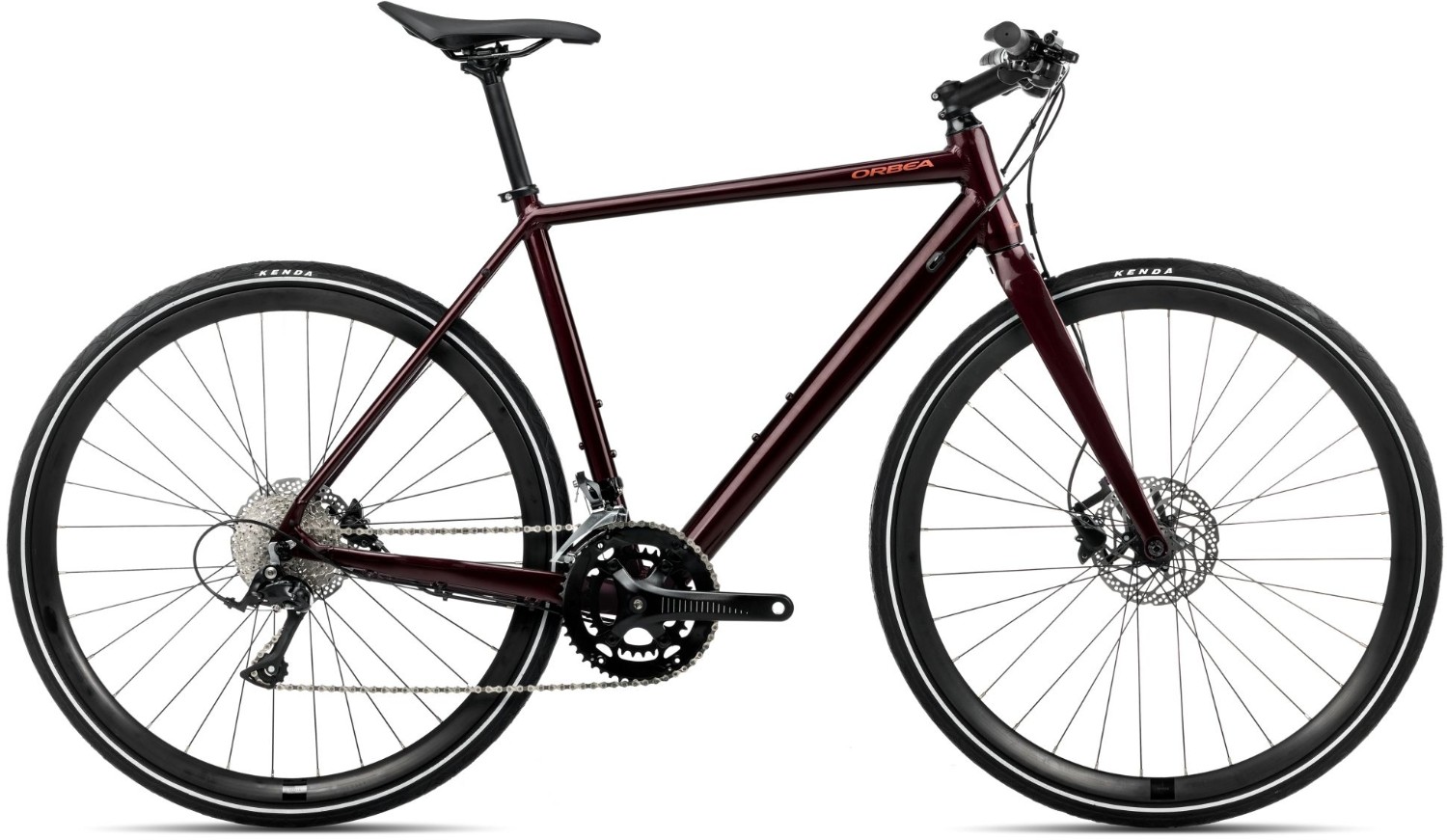

Orbea Vector 20 2025 - Hybrid Sports Bike
The Orbea Vector 20 is built for riders who want a reliable and efficient hybrid bike that excels in city riding, commuting, and weekend adventures. Its lightweight 6000-series aluminium frame features Orbea Tube Shaping, ensuring a perfect balance of strength and agility. The frame is mudguard and rack compatible, making it practical for carrying luggage on daily commutes or long-distance rides.
Key Features:
- Frame: Aluminium 6000 with internal cable routing, mudguard, and rack compatibility.
- Fork: Lightweight alloy with flat-mount disc brake compatibility.
- Drivetrain: Shimano Sora 18-speed with Sora 3000 front and rear mechs.
- Brakes: Shimano MT200 hydraulic disc brakes for reliable stopping power.
- Wheels & Tyres: 700c alloy rims with Kenda K1098 700x32c tyres and reflective sidewalls.
- Standout Feature: A versatile hybrid design, ideal for commuting and leisure rides.
- Finance: Available with 0% APR finance.
Equipped with a rigid alloy fork, the Vector 20 delivers precise handling and responsiveness, making it easy to navigate through traffic or enjoy a smooth ride on open roads. The Shimano Sora 18-speed drivetrain provides crisp and reliable gear shifts, helping you tackle hills and maintain speed with ease. A Shimano HG400 11-34t cassette ensures a wide gear range, ideal for varied terrain.
For confident stopping power in all conditions, the Shimano MT200 hydraulic disc brakes provide excellent braking performance, whether you're riding in wet weather or navigating busy streets. The 700c alloy wheels are paired with Kenda K1098 700x32c tyres, which roll efficiently while offering comfort and grip. Reflective tape on the tyres enhances visibility, adding an extra layer of safety for night riding.
The Vector 20 is designed for comfort and versatility, featuring a Fizik Aliante R5 saddle and alloy riser handlebars for a relaxed yet efficient riding position. The 27.2mm alloy seatpost helps absorb vibrations, making longer rides more comfortable.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
| Fork | Speed 400mm Alloy Flat mount |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Stem | Alloy, 7º |
| Bars | Alloy, 31.8mm, Riser, 640mm |
| Front Brake | Shimano MT200 Hydraulic Disc |
| Rear Brake | Shimano MT200 Hydraulic Disc |
| Front Mech | Shimano Sora 3000 |
| Rear Mech | Shimano Sora 3000GS |
| Shifters | Shimano Sora |
| Speed | 18 |
| Rims | Alloy, Tubeless, 700c, 21c, 32H |
| Front Tyre | Kenda K1098 700x32 Reflective Tape |
| Rear Tyre | Kenda K1098 700x32 Reflective Tape |
| Seat Post | SP 0.6, Alloy, 27.2mm, Setback 0 |
| Saddle | Fizik Aliante R5 |
| Chainset | Orbea, Alloy, 32x48t |
| Chain | KMC X9 |
| Cassette | Shimano HG400 11-34t 9-Speed |
| Pedals | Resin Platform |
Orbea Vector 2025 Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (in) |
|
XS |
150 – 160 |
59.1” – 63.0” |
|
S |
160 – 170 |
63.0” – 66.9” |
|
M |
170 – 180 |
66.9” – 70.9” |
|
L |
180 – 190 |
70.9” – 74.8” |
|
XL |
190 – 200 |
74.8” – 78.7” |
Orbea Vector 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 535 | 552 | 571 | 592 | 625 |
| Reach | 378 | 388 | 395 | 405 | 420 |
| Head Tube Length | 109 | 127 | 150 | 175 | 200 |
| Head Tube Angle | 71° | 71° | 71° | 71.5° | 72° |
| Bottom Bracket Height | 281 | 281 | 283 | 283 | 285 |
| Bottom Bracket Drop | 70 | 70 | 68 | 68 | 66 |
| Trail | 67 | 67 | 67 | 64 | 60 |
| Fork Length | 400 | 400 | 400 | 400 | 400 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 | 51 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1021 | 1037 | 1052 | 1063 | 1075 |
| Top Tube Length (horizontal) | 521 | 546 | 559 | 580 | 601 |
| Standover Height | 738 | 768 | 800 | 824 | 852 |
| Seat Tube Length | 430 | 480 | 525 | 555 | 580 |
| Seat Tube Angle | 75° | 74° | 74° | 73.5° | 73° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
