(no reviews)Product ID: 271604

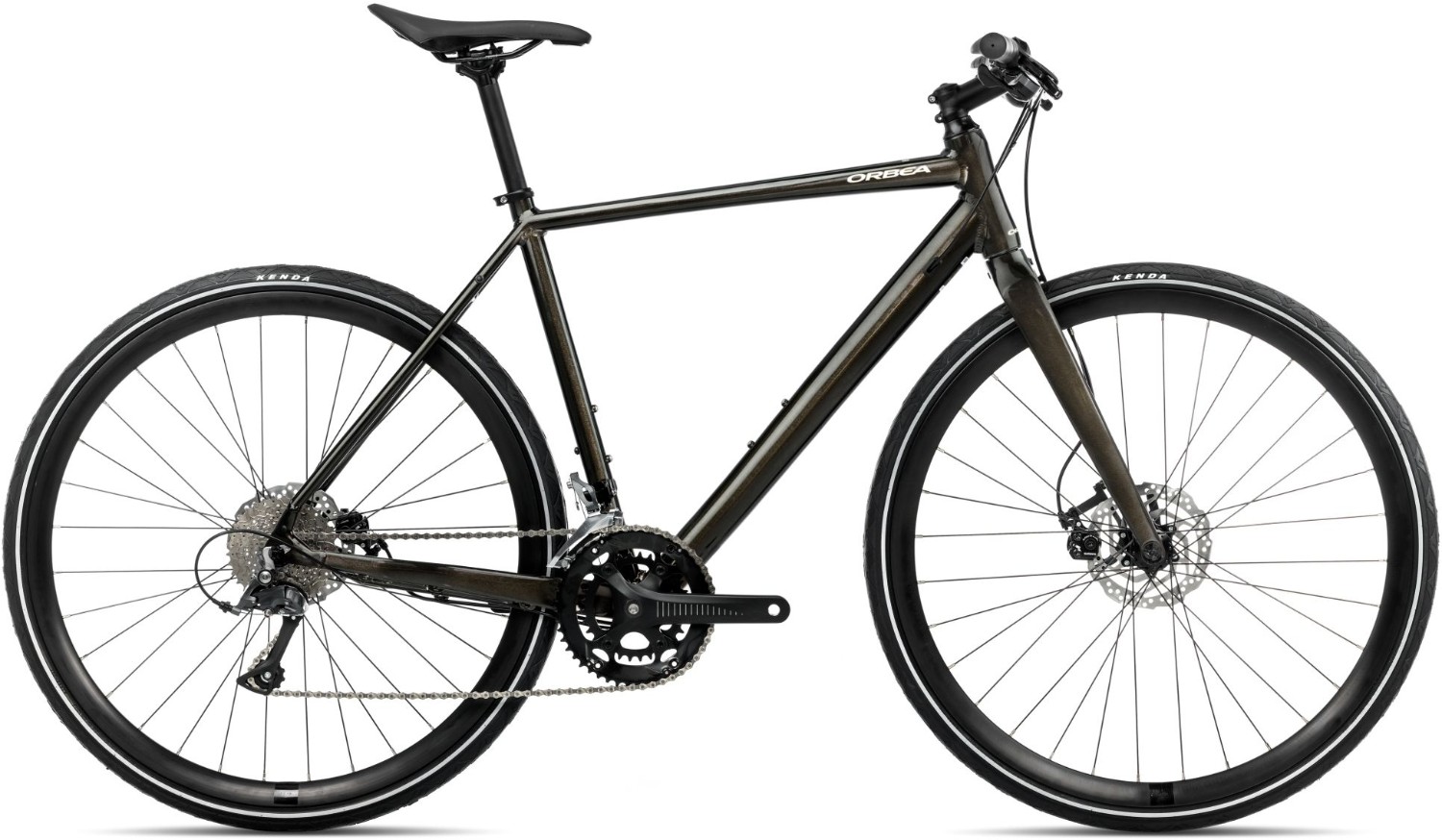

Orbea Vector 30 2025 - Hybrid Sports Bike
Whether it’s commuting from work or taking a few extra minutes for a detour in the park. Vector is Orbea's new multi-role bike that emphasizes versatility. A companion for every part of your life.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
| Fork | Speed 400mm Alloy Flat mount |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Stem | Alloy, 7º |
| Bars | Alloy, 31.8mm, Riser, 640mm |
| Front Brake | Shimano TX805 Mechanical Disc |
| Rear Brake | Shimano TX805 Mechanical Disc |
| Brake Lever | Shimano Claris BL-R2000 |
| Front Mech | Shimano Claris FD-R2000-F |
| Rear Mech | Shimano Claris RD-R2000-GS |
| Shifters | Shimano Claris SL-R2000 |
| Speed | 16 |
| Rims | Alloy, Tubeless, 700c, 21c, 32H |
| Front Tyre | Kenda K1098 700x32 Reflective Tape |
| Rear Tyre | Kenda K1098 700x32 Reflective Tape |
| Seat Post | SP 0.6, Alloy, 27.2mm, Setback 0 |
| Saddle | Fizik Aliante R5 |
| Chainset | Orbea, Alloy, 32x48t, 8S |
| Chain | KMC X8 |
| Cassette | Shimano HG50 11-34t 8-Speed |
| Pedals | Resin Platform |
Orbea Vector 2025 Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (in) |
|
XS |
150 – 160 |
59.1” – 63.0” |
|
S |
160 – 170 |
63.0” – 66.9” |
|
M |
170 – 180 |
66.9” – 70.9” |
|
L |
180 – 190 |
70.9” – 74.8” |
|
XL |
190 – 200 |
74.8” – 78.7” |
Orbea Vector 2025 Geometry Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 535 | 552 | 571 | 592 | 625 |
| Reach | 378 | 388 | 395 | 405 | 420 |
| Head Tube Length | 109 | 127 | 150 | 175 | 200 |
| Head Tube Angle | 71° | 71° | 71° | 71.5° | 72° |
| Bottom Bracket Height | 281 | 281 | 283 | 283 | 285 |
| Bottom Bracket Drop | 70 | 70 | 68 | 68 | 66 |
| Trail | 67 | 67 | 67 | 64 | 60 |
| Fork Length | 400 | 400 | 400 | 400 | 400 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 | 51 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1021 | 1037 | 1052 | 1063 | 1075 |
| Top Tube Length (horizontal) | 521 | 546 | 559 | 580 | 601 |
| Standover Height | 738 | 768 | 800 | 824 | 852 |
| Seat Tube Length | 430 | 480 | 525 | 555 | 580 |
| Seat Tube Angle | 75° | 74° | 74° | 73.5° | 73° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
