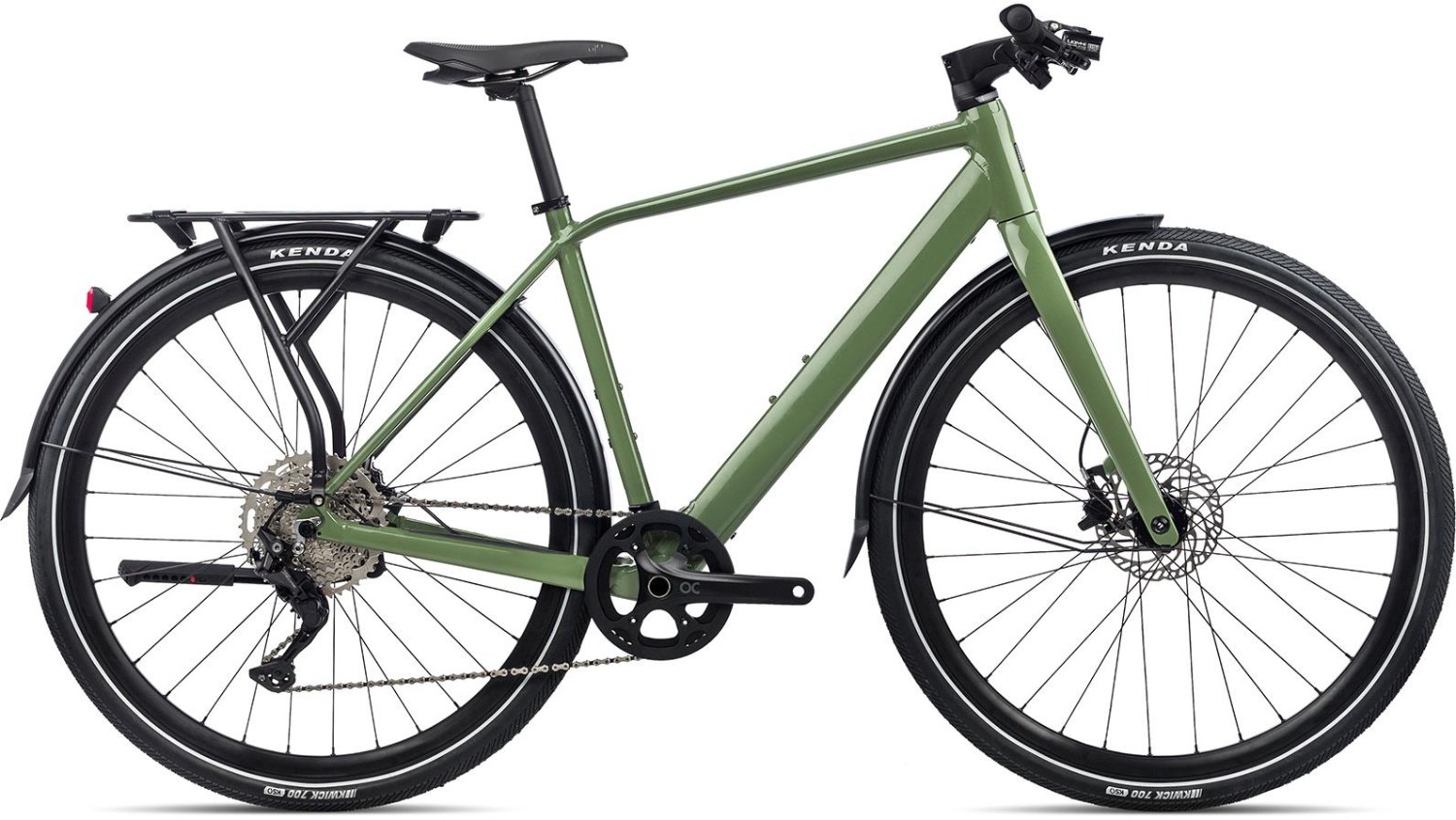

Orbea Vibe H30 EQ 2021 - Electric Hybrid Bike
In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.
Vibe is a bike that is light weight and enjoyable to ride - with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.
Take your pick from a High top tube or a Mid tube version – Both unisex Vibe frames are designed to fit any rider’s preference, and are available in all models with the same personalization options.
Integrated Lights
It’s like magic - Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Vibe is ready for the road.
IWOC Trio
Vibe’s control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.
Internal Battery.
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Vibe’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
ICR Plus
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x40 maximun tyre, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC1 31.8mm interface -6º |
Bars | Alloy 31.8mm 12mm Rise 700mm |
Front Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
Rear Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
Rear Mech | Shimano Deore M5120 SGS Shadow Plus |
Shifters | Shimano Deore M4100 |
Speed | 10 |
Rims | Ready GR |
Front Tyre | Kenda K1052 700x45C Reflective type+puncture protection |
Rear Tyre | Kenda K1052 700x45C Reflective type+puncture protection |
Seat Post | Alloy 27.2 Offset 20 |
Saddle | Selle Royal Lift 1215 URN 278x145mm |
Chainset | OC 42t, w/Chainguard |
Chain | KMC X10 |
Cassette | Shimano CS-M4100 11-46t 10-Speed |
Pedals | VP-537 Black |
Battery Size (WH) | Ebikemotion 36V/6.9A 248Wh ANT+ |
Motor | Ebikemotion X35 Plus 25kmh |
Orbea Vibe Size Chart
Size |
Height (cm) |
Height (in) |
S |
150 - 165 |
59.1" - 65.0" |
M |
165 - 180 |
65.0" - 70.9" |
L |
180 - 195 |
70.9" - 76.8" |
XL |
195 - 205 |
76.8" - 80.7" |
What size frame do I need if I am between sizes? - read here
