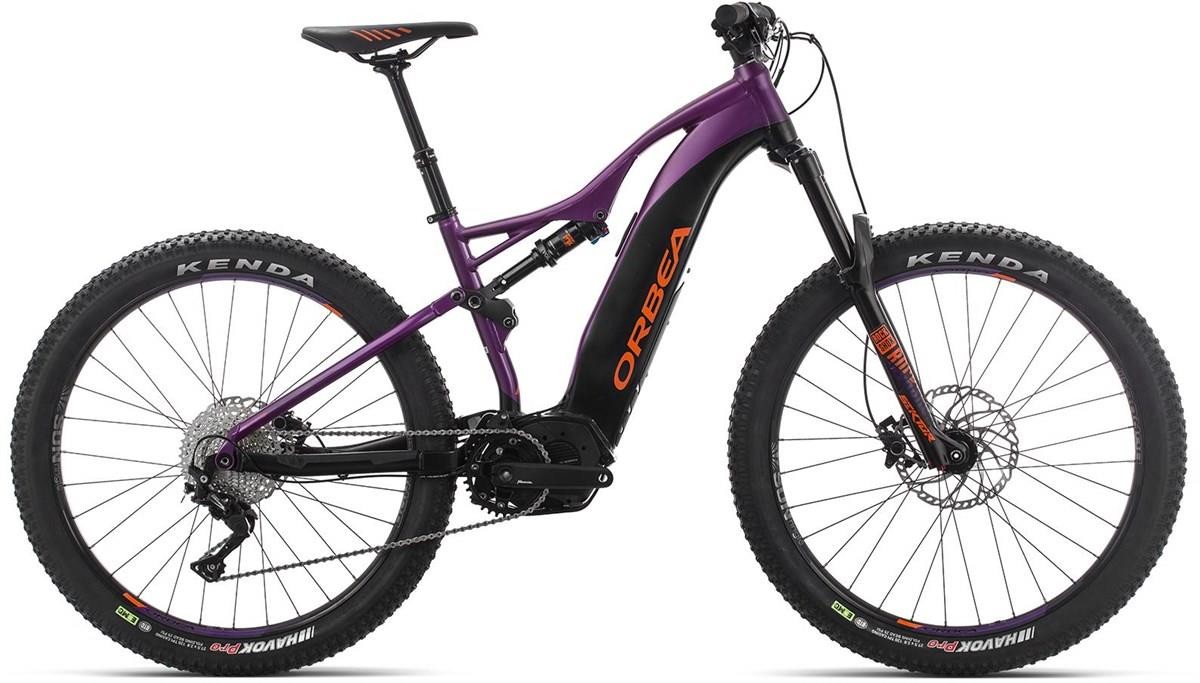

Orbea Wild FS 40 27.5" - Nearly New - M 2019 - Electric Mountain Bike

This Orbea Wild FS electric mountain bike is in excellent condition. Having never been ridden, it is showing no signs of mechanical wear. However, it has some cosmetic imperfections on the down tube, rear triangle and the grips.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12 month Tredz warranty, plus any additional manufacturer warranty which may apply.
- Integrated battery fits smoothly with the frame shapes for great protection and a sleek appearance.
- Tool-less battery access for convenience with a highly protected, rubber shielded charging port.
- External access to battery on/off button and battery status
- Compact display fits easily with other controls on the handlebar
- A colour display is Bluetooth/ANT+ compatible
- Orbea's design process that optimizes suspension characteristics and kinematics for the widest range of riding conditions
- 140mm Front and Rear travel
- High quality sealed cartridge pivot bearings for durability and sensitivity
- Shimano E8000 is the lightest and most compact motor on the market
- E800 uses a standard chainring
- Speed sensor integrated with rear dropout
- The form of the E8000 motor allows for more desirable geometry and kinematics
- Hydroformed AL7000 frame is light and strong with sophisticated shaping that places material where it's needed
- Boost 148 spacing
- Metal armour skid plate protects the motor for long life
- 35mm steams and wide handlebars
- Suspension is optimized for eMTB use
- Stronger wheels and larger brake rotors
- Tires with reinforced eMTB casing
- More comfortable saddles
- eMTB geometry with short chainstays and an upright trail bike position
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ORBEA WILD Full Suspension 2019 Hydroformed Alloy 140mm Travel Boost 12X148 for Shimano E7936 |
| Fork | Rock Shox Sektor RL 140 Air QR15x110 Boost e-MTB |
| Rear Shock | Fox Float DPS Performance 3-Position Evol custom tune 200x51mm |
| Headset | ACROS 1-1/8 - 1-1/2" Integrated |
| Bars | Orbea 35mm Riser 780mm |
| Front Brake | Shimano MT201 Hydraulic Disc |
| Rear Brake | Shimano MT201 Hydraulic Disc |
| Rear Mech | Shimano Deore M6000 GS Shadow Plus Direct Mount |
| Shifters | Shimano Deore M6000 |
| Speed | 10 |
| Rims | Duroc 40 TL 6-Bolt |
| Front Tyre | Kenda 1184A Havok 27,5x2,8" 120TPI TLR (E-MTB specific) |
| Rear Tyre | Kenda 1184A Havok 27,5x2,8" 120TPI TLR (E-MTB specific) |
| Seat Post | Race Face Aeffect Dropper 31.6x385/125mm |
| Chain | KMC e10 Turbo Silver |
| Cassette | Sun Race 11-42t 10-Speed |
| Pedals | VPE-537 Black |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
