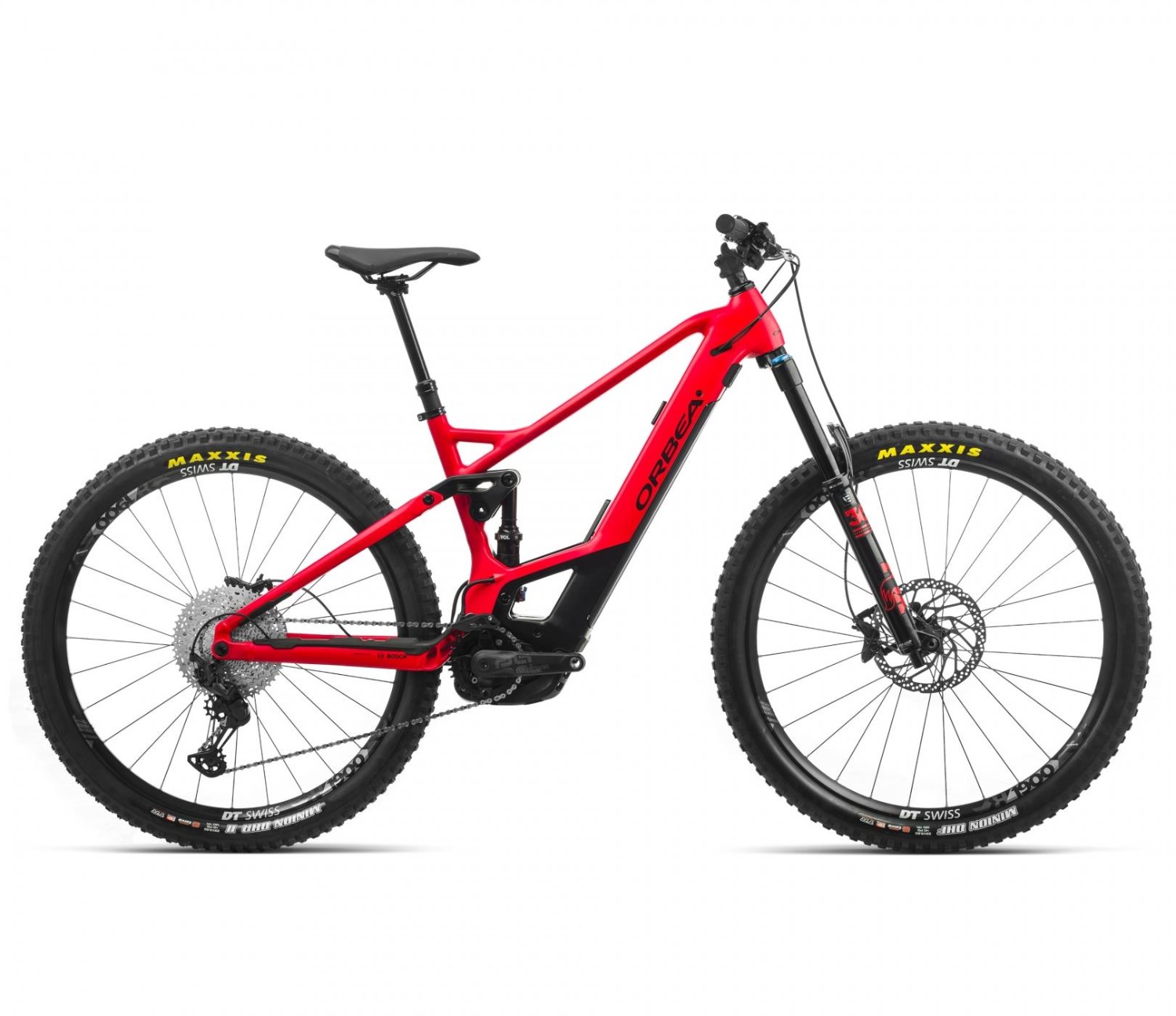

Orbea Wild FS H20 2020 - Electric Mountain Bike

Orbea Wild FS H20 2020 - Electric Mountain Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Mountain Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

It’s time to get moving. Load up your pack for an afternoon ride and start pedalling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them. Reclaim access and discover new adventures the way you like – aboard a fun and capable machine that enhances your skills while it extends your range. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Wild FS revitalizes your riding and helps you chart new destinations. Take back control – Take back your Wild.

HideOut Technology - Pay attention to the battery used by the ebike you choose. Opt for the least bulky one with the same capacity (500 Wh). Besides being easy to remove, replace and transport, look for a battery with proven reliability that is not set to be replaced by a new generation in the near future.

The integrated battery fits smoothly with the frame shapes for great protection and a sleek appearance
Tool-less battery access for convenience with a highly protected, rubber shielded charging port
External access to battery on/off button and battery status

Display - Compact display fits easily with other controls on the handlebar
Color display is Bluetooth/ant+ compatible

Advanced Dynamics - Orbea’s design process that optimizes suspension characteristics and kinematics for the widest range of riding conditions.
140mm front and rear travel
High quality sealed cartridge pivot bearings for durability and sensitivity

Shimano E8000 - The lightest and most compact motor on the market
Uses a standard chainring
Speed sensor integrated with rear dropout
The form of the E8000 motor allows for more desireable geometry and kinematics

Frame Features - Hydroformed AL7000 frame is light and strong with sophisticated shaping that places material where it’s needed
27+ and 29 compatible
BOOST 148 Spacing
Metal armour skid plate protects the motor for long life

eMTB Components - 35mm stems and wide handlebars
Suspension is optimized for eMTB use
Stronger wheels and larger brake rotors
Tires with reinforced eMTB casing
More comfortable saddles
eMTB geometry with short chainstays and an upright trail bike position

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:ORBEA WILD Full Suspension 2020 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Fork:Fox 36 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock:Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Headset:ACROS 1-1/8 Semi-integrated Block Lock
Stem:Race Face Aeffect 35mm interface
Bars:Race Face Aeffect 35 20mm Rise 780mm
Front Brake:Shimano MT501 BR520 Hydraulic Disc
Rear Brake:Shimano MT501 BR520 Hydraulic Disc
Rear Mech:Shimano XT M8100 SGS Shadow Plus
Shifters:Shimano SLX M7100
Speed:12
Rims:DT Swiss H-1900 Spline 30c TLR 15/110mm CL
Rear Hub:Orbea 12x187x1.5mm
Front Tyre:Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Rear Tyre:Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Seat Post:OC2 Dropper 31.6mm
Saddle:Selle Royal Vivo
Chainset:PW-NW32-G4
Chain:KMC X12
Cassette:Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Pedals:VP-537 Black
Battery (Wh):500Wh
Motor:BOSCH Performance CX Cruise
User Interface:BOSCH Performance Purion

Orbea Wild FS H20 2020 - Electric Mountain Bike Reviews

Write your own review
Overall Rating:
5
out of 5
5.00
Build Quality
5.00
Performance
5.00
Value For Money
5.00

Customer Reviews (1)

5
Great bike
by Kyle H on 29/05/2020

Great bike out of the box. Has everything needed to be able to hit any trail. Motor works great with no noticable resistance after the limiter.

Great bike out of the box. Has everything needed to be able to hit any trail. Motor works great with no noticable resistance after the limiter.

Close review
5 out of 5
Build Quality: 5/5
Performance: 5/5
Value For Money: 5/5
