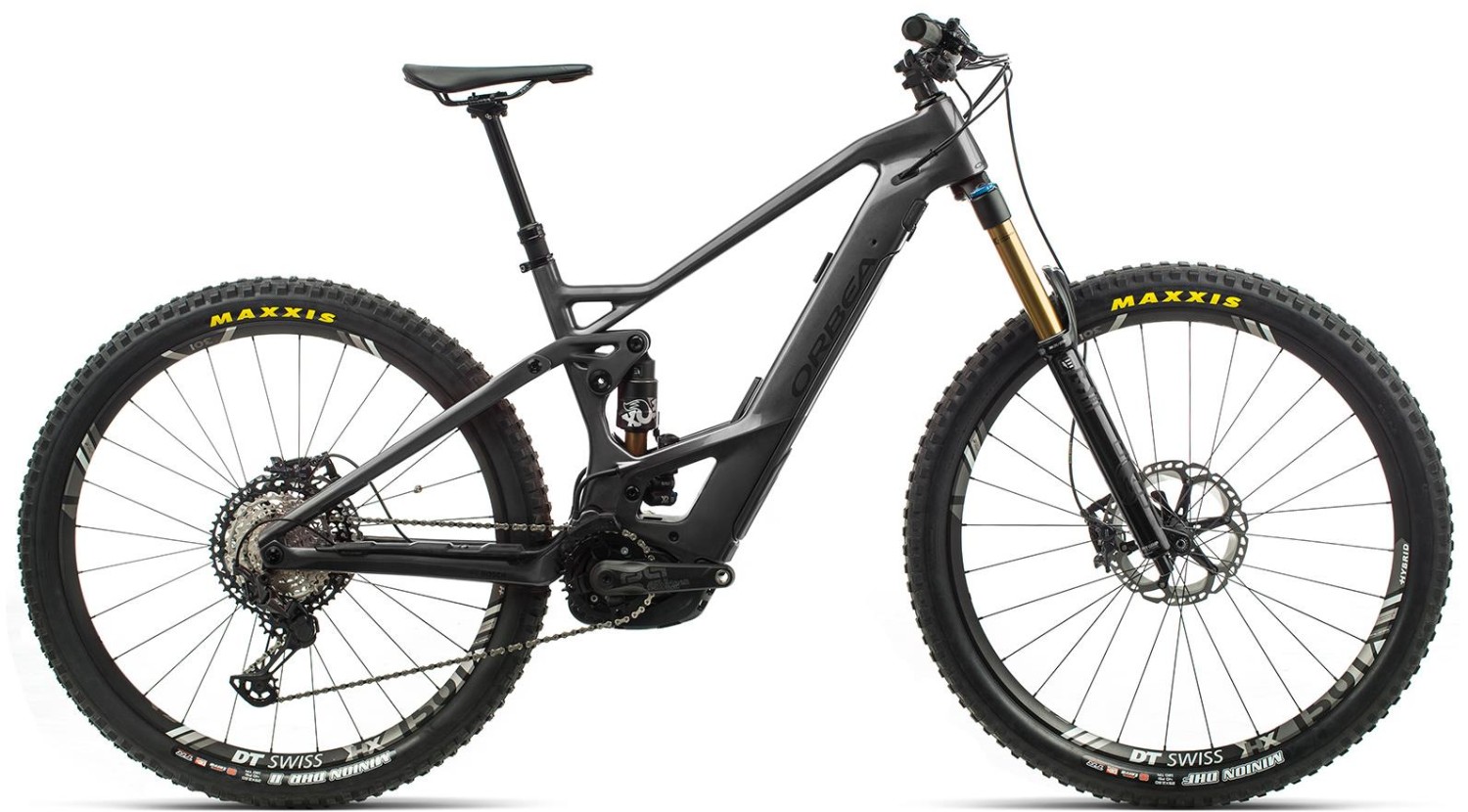

Orbea Wild FS M-Team 29" 2020 - Electric Mountain Bike
With its long, low, slack geometry and progressive suspension kinematics the Orbea Wild FS M-Ltd is an e bike built for proper mountain biking. Combined with the very latest Bosch electric bike motor technology, this is an eMTB that really will help you to get more out of your ride.
Key Features:
- Full carbon frame with fully integrated battery
- Fox 36 Factory Fork offers 160mm of hard-hitting suspension travel
- Fox DHX2 Factory shock controls the 160mm of rear wheel travel
- Shimano XT 12 speed drivetrain for slick shifting
- Shimano XT disc brakes for powerful stopping power
- DT Swiss HX-1501 Spline 30c 29” wheels
- Sizes: Medium, Large, X Large
- Colours: Orange/Black, Anthracite/Black
- The Orbea Wild FS M-Team is available with 0% APR finance
Drive information:
- Motor: BOSCH Performance CX Cruise, 75Nm
- Battery: Bosch 625Wh downtube integrated battery pack
- User Interface / Display: BOSCH KIOX
It’s time to get moving. Load up your pack for an afternoon ride and start pedalling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them. Reclaim access and discover new adventures the way you like – aboard a fun and capable machine that enhances your skills while it extends your range. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Wild FS revitalizes your riding and helps you chart new destinations. Take back control – Take back your Wild.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ORBEA WILD Full Suspension 2020 Carbon 160mm Travel Boost 12x148 Bosch Gen4 |
| Fork | Fox 36 Float Factory 160 Grip2 RC2 QR15x110 Kashima E-Bike Optimized |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm |
| Headset | OC Key Holder |
| Stem | Race Face Aeffect R 35mm interface |
| Bars | Race Face Next R 35 20mm Rise 800mm |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano XT M8100 I-Spec EV |
| Speed | 12 |
| Rims | DT Swiss HX-1501 Spline 30c TLR 15/110mm CL |
| Rear Hub | Orbea 12x187x1.5mm |
| Front Tyre | Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR |
| Rear Tyre | Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR |
| Seat Post | OC2 Dropper 31.6mm |
| Saddle | Fizik Taiga S-alloy rail |
| Chainset | PW-NW32-G4 |
| Chain | Shimano M8100 |
| Cassette | Shimano XT M8100 10-51t 12-Speed |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 625wh |
| Motor | BOSCH Performance CX Cruise (25km/h) BDU450CX |
| User Interface | BOSCH Display unit KIOX Black BUI330 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
