Orbea Wild LT M20 2027 - Electric Mountain Bike
Built for riders who want maximum capability without unnecessary weight, the Wild LT M20 combines a lightweight carbon frame, long-travel suspension and powerful e-bike assistance to deliver confident performance on challenging climbs and descents.
Key Features:
- Orbea Wild OMR carbon frame with 29er geometry and Boost rear axle
- RockShox ZEB Base DebonAir+ E-MTB fork with 170mm travel
- Fox Float X Performance EVOL rear shock with 170mm travel
- Shimano Deore 12-speed drivetrain with wide-range 10-51T cassette
- Shimano MT420 hydraulic disc brakes
- 29in Race Face AR 30c tubeless-ready wheels with Maxxis Assegai tyres
- Available with 0% APR finance
Drive Information:

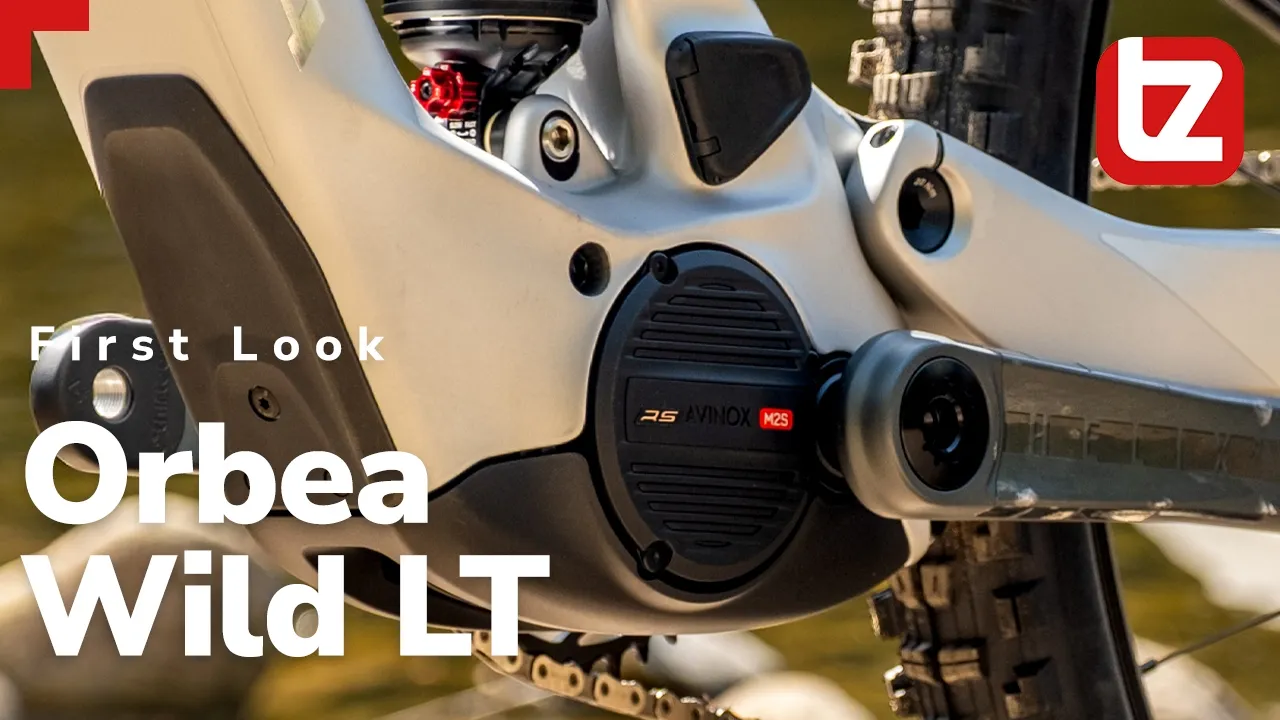

- Motor: DJI Avinox M2S mid-drive motor
- Battery: DJI Avinox 800Wh integrated battery
- User Interface: DJI Avinox DP100 integrated display
The Orbea Wild LT M20 is designed around a simple goal: delivering full-power e-MTB performance with the responsive ride feel of a modern mountain bike. Built using Orbea's OMR carbon frame platform, it combines impressive stiffness with controlled handling, helping the bike feel lively and engaging whether you're threading through technical singletrack or charging rough descents.
The long-travel chassis is engineered to cope with demanding terrain. Up front, the RockShox ZEB Base DebonAir+ fork delivers 170mm of travel, providing support and control through rock gardens, roots and steep trail features. At the rear, a Fox Float X Performance shock works with the frame's suspension design to maintain traction and composure when speeds increase and the terrain becomes more challenging.
The Wild's geometry has been developed to inspire confidence on steep descents while remaining efficient on technical climbs. Large 29-inch wheels help carry momentum and smooth trail chatter, while the Maxxis Assegai 2.5in tyres provide dependable grip across a wide variety of trail conditions.
Power comes from DJI's Avinox M2S drive unit, paired with a substantial 800Wh battery. Together they offer strong assistance for steep climbs, long days in the mountains and back-to-back laps of demanding trails. The integrated DJI Avinox DP100 display provides clear ride data and system information while maintaining the bike's clean appearance.
Shifting is handled by Shimano's proven 12-speed Deore drivetrain. The wide-range 10-51T cassette gives you plenty of gearing options for both technical climbing and faster sections of trail, while Shimano's Shadow Plus rear derailleur helps keep chain retention secure on rough ground.
Stopping power comes courtesy of Shimano MT420 hydraulic disc brakes, delivering reliable braking performance and control when descending steep or technical terrain.
Following Orbea's philosophy of performance through simplicity, the Wild LT M20 focuses on the features that matter most: a lightweight carbon chassis, capable suspension, powerful assistance and dependable components. The result is a full-power e-MTB that's ready for everything from challenging trail centre loops to big mountain adventures and enduro-inspired riding.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost |
| Rear Shock | Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm |
| Headset | Acros ZS56 |
| Stem | OC Mountain Control MC21, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Mech | Shimano Deore M7200 SGS Shadow Plus |
| Shifters | Shimano Deore M6200 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Rear Tyre | Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Chainset | e*thirteen Helix Core e*spec |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6200 10-51t 12-Speed |
| Battery Size (WH) | DJI Avinox 800Wh |
| Motor | DJI Avinox M2S |
| User Interface | DJI Avinox DP100 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
