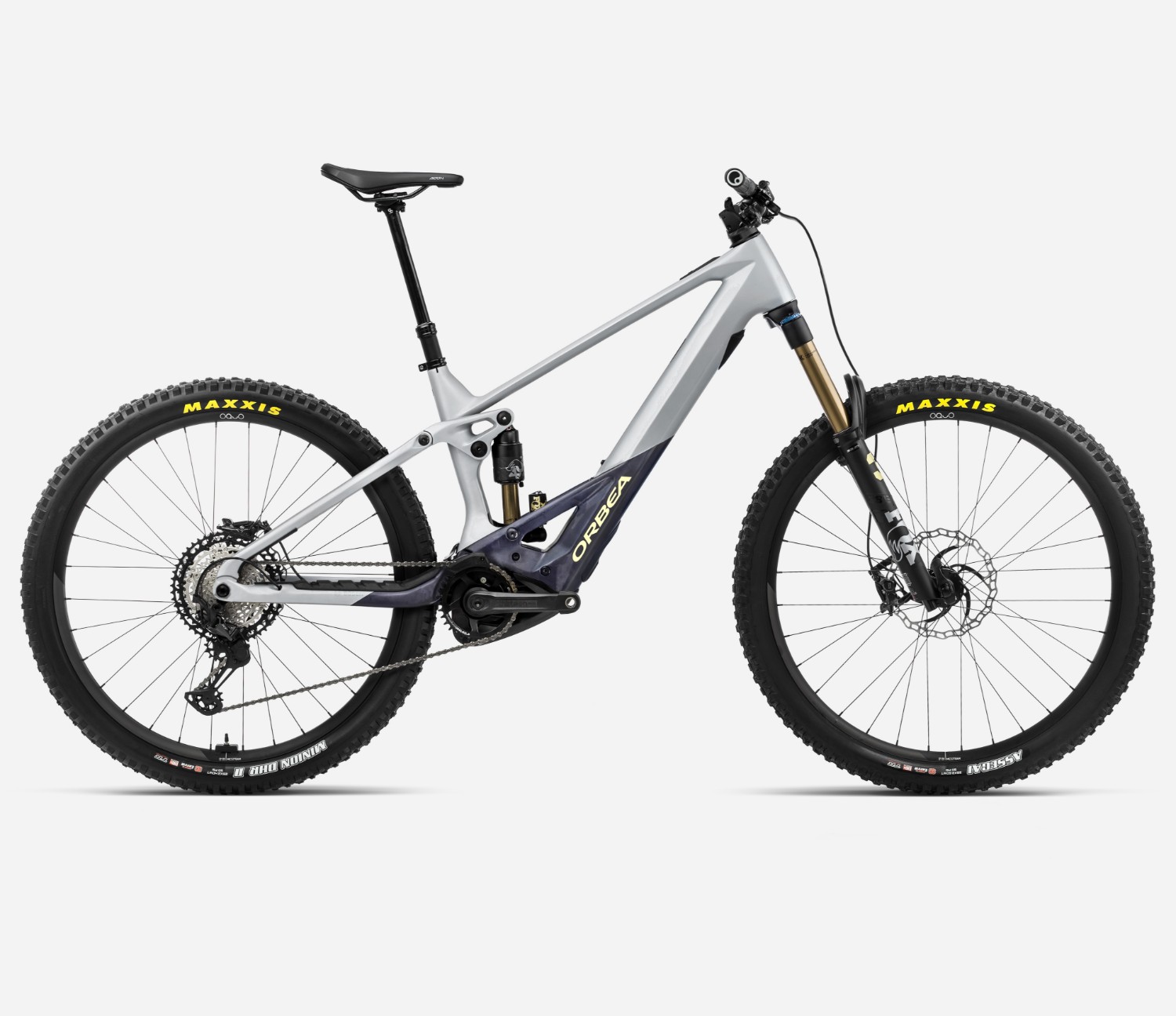

Orbea Wild M-Team 2024 - Electric Mountain Bike
The Orbea Wild M-Team is a force to be reckoned with, designed to conquer the wildest trails with its 160mm travel, 29" wheels, and concentric boost 12x148 system. The Fox 38 Float Factory fork and Fox Float X2 Factory shock provide consistent suspension performance.
Key Features:
- Frame: OMR 2023, 160mm travel, 29" wheels, concentric boost 12x148
- Fork: Fox 38 Float Factory 160 Grip2 Kashima e-bike optimized
- Rear Shock: Fox Float X2 Factory trunnion 2-position adjust Kashima
- Drivetrain: Shimano XT M8100 12-speed
- Brakes: Shimano XT M8120 hydraulic disc
- Wheels: 29", Maxxis Assegai 2.50" tires
- Standout Feature: E-evolved geometry for optimal control
- 0% APR Finance Available
Drive Information:
- Motor: Bosch Performance Line CX, Max Torque: Information not available
- Battery: Bosch PowerTube 750Wh horizontal BBP3770
- User Interface: Bosch System Controller BCR3100
Orbea's commitment to perfection is evident in the Wild M-Team. Designed as a top-tier e-mtb, it goes beyond power, delivering a lively and involving ride on even the most challenging trails. The lightweight OMR frame, supportive suspension, and e-evolved geometry put riders in complete control.
Powered by the latest Bosch motor and a massive 750Wh battery, the Wild M-Team offers an incredible range and power for both ascents and descents. Thanks to Orbea's emphasis on simplicity, technologies like SBS and the Clean Cockpit ensure a sleek frame, making it easy to overlook that this is an e-bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC10 Alu SL, 0º |
| Bars | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano XT M8100 I-Spec EV |
| Speed | 12 |
| Front Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Rear Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Chain | Shimano M8100 |
| Cassette | Shimano CS-M8100 10-51t 12-Speed |
| Battery Size (WH) | BOSCH Powertube 750Wh Horizontal BBP3770 |
| Motor | BOSCH Performance Line CX BDU3741 |
| User Interface | BOSCH System Controller BCR3100 |
Orbea Wild 2024 Size Chart
|
SIZE |
HEIGHT ( CM ) |
HEIGHT ( IN ) |
|
S |
150-175 |
59.1"-68.9" |
|
M |
160-185 |
63.0"-72.8" |
|
L |
170-195 |
66.9"-78.8" |
|
XL |
180-205 |
70.9"-80.7" |
What size frame do I need if I am between sizes? - read here
Orbea Wild 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube (C-T) |
415 |
415 |
435 |
460 |
|
Top Tube (Eff) |
573 |
595 |
622 |
649 |
|
Head Tube |
110 |
120 |
130 |
140 |
|
Chainstay |
448 |
448 |
448 |
448 |
|
BB Height |
353 |
353 |
353 |
353 |
|
BB Drop |
25 |
25 |
25 |
25 |
|
Wheelbase |
1223 |
1247 |
1277 |
1306 |
|
Head Angle |
64º |
64º |
64º |
64º |
|
Seat Angle |
77.5º |
77.5º |
77.5º |
77.5º |
|
Standover |
700 |
700 |
700 |
700 |
|
Reach |
435 |
455 |
480 |
505 |
|
Stack |
621 |
630 |
639 |
648 |
|
Fork Length |
575 |
575 |
575 |
575 |
|
Rake |
44 |
44 |
44 |
44 |
|
Crank |
165 |
165 |
165 |
165 |
|
Stem |
40 |
40 |
50 |
50 |
|
Handlebar |
800 |
800 |
800 |
800 |
|
Dropper Seatpost |
390/125 |
440/150 |
480/170 |
550/200 |
