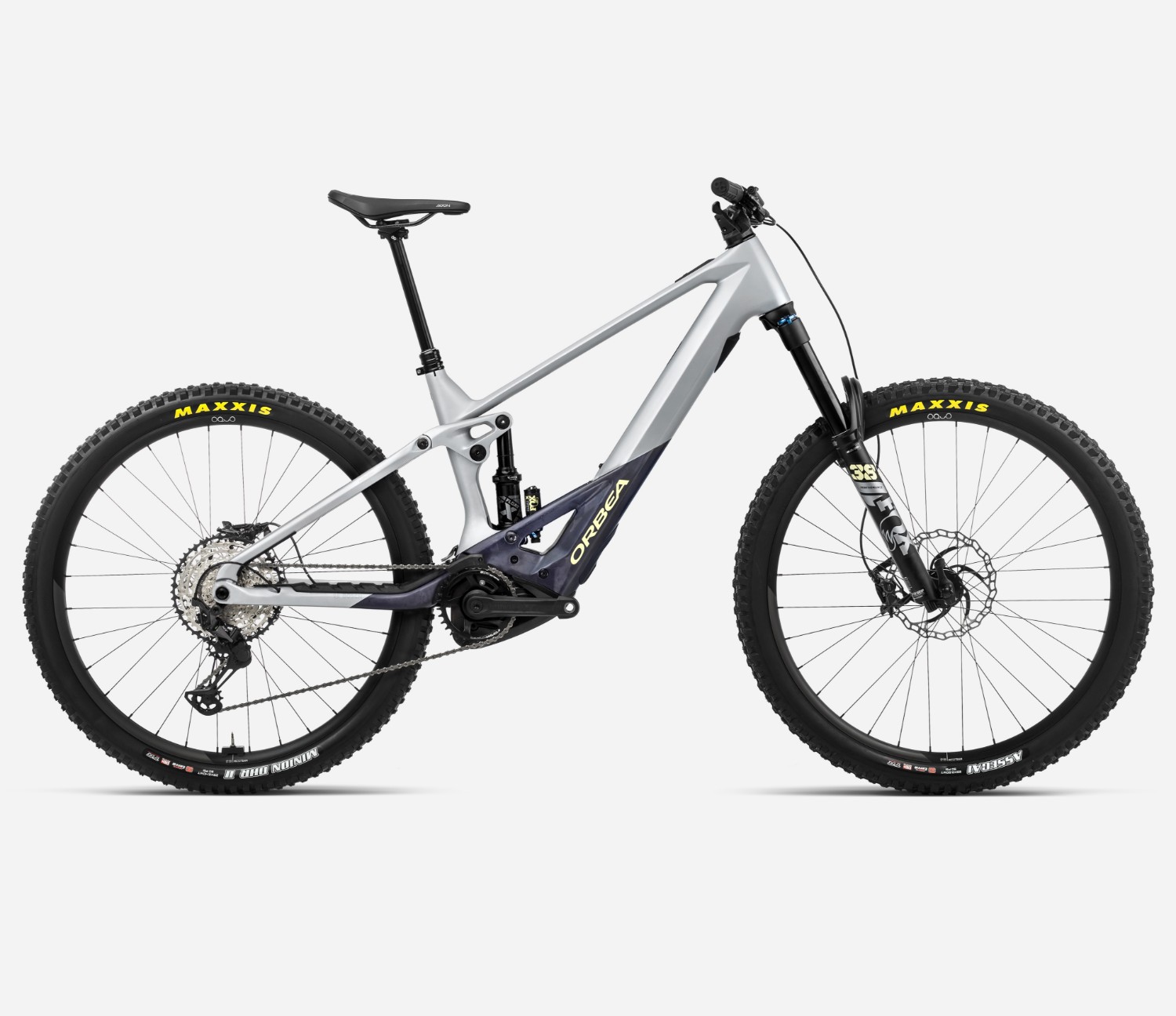

Orbea Wild M10 2024 - Electric Mountain Bike

Unleash your riding potential with the Orbea Wild M10, a trailblazer in the e-bike realm. This enduro marvel boasts a robust OMR frame with 160mm travel and 29" wheels, ensuring a responsive and agile ride. The Fox 38 Float Performance fork and Fox Float X Performance rear shock provide the perfect balance of control and comfort. Shift effortlessly through the 12-speed Shimano XT drivetrain, propelled by the Bosch Performance Line CX motor and its 750Wh powerhouse battery. Shimano XT hydraulic disc brakes deliver reliable stopping power, while Maxxis Assegai tires ensure superior traction. The Wild M10 is not just an e-bike; it's a trail companion redefining the e-mtb experience.
Key Features:
- Frame: OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
- Front Suspension: Fox 38 Float Performance 160, Grip 3-position, QR15x110 e-bike optimized
- Rear Suspension: Fox Float X Performance, Trunnion 2-position adjust, Custom Tune 205x65mm
- Drivetrain: Shimano XT M8100, 12-speed
- Brakes: Shimano XT M8120 hydraulic disc
- Wheels: 29", Maxxis Assegai 2.50" WT tires
- Finance: Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX, Max Torque
- Battery: Bosch PowerTube 750Wh
- User Interface: Bosch System Controller, BCR3100
Orbea's Wild M10 isn't just about power; it's about an immersive, lively ride that defies the norms of e-bikes. The Bosch motor and 750Wh battery provide unparalleled range and power, transforming climbs and descents into thrilling experiences. With a focus on simplicity and performance, the Wild M10 is one of the lightest full-power e-bikes, ensuring enhanced range and superior handling. Trust in the rigorous testing from EWS-E competitions, where Orbea emerged victorious, ensuring the Wild M10 delivers unmatched performance and reliability. Free your Wild and redefine your e-mtb adventure.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized |
| Rear Shock | Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Speed | 12 |
| Front Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Rear Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Battery Size (WH) | BOSCH Powertube 750Wh Horizontal BBP3770 |
| Motor | BOSCH Performance Line CX BDU3741 |
| User Interface | BOSCH System Controller BCR3100 |
![]()
Orbea Wild 2024 Size Chart
|
SIZE |
HEIGHT ( CM ) |
HEIGHT ( IN ) |
|
S |
150-175 |
59.1"-68.9" |
|
M |
160-185 |
63.0"-72.8" |
|
L |
170-195 |
66.9"-78.8" |
|
XL |
180-205 |
70.9"-80.7" |
What size frame do I need if I am between sizes? - read here
Orbea Wild 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube (C-T) |
415 |
415 |
435 |
460 |
|
Top Tube (Eff) |
573 |
595 |
622 |
649 |
|
Head Tube |
110 |
120 |
130 |
140 |
|
Chainstay |
448 |
448 |
448 |
448 |
|
BB Height |
353 |
353 |
353 |
353 |
|
BB Drop |
25 |
25 |
25 |
25 |
|
Wheelbase |
1223 |
1247 |
1277 |
1306 |
|
Head Angle |
64º |
64º |
64º |
64º |
|
Seat Angle |
77.5º |
77.5º |
77.5º |
77.5º |
|
Standover |
700 |
700 |
700 |
700 |
|
Reach |
435 |
455 |
480 |
505 |
|
Stack |
621 |
630 |
639 |
648 |
|
Fork Length |
575 |
575 |
575 |
575 |
|
Rake |
44 |
44 |
44 |
44 |
|
Crank |
165 |
165 |
165 |
165 |
|
Stem |
40 |
40 |
50 |
50 |
|
Handlebar |
800 |
800 |
800 |
800 |
|
Dropper Seatpost |
390/125 |
440/150 |
480/170 |
550/200 |
