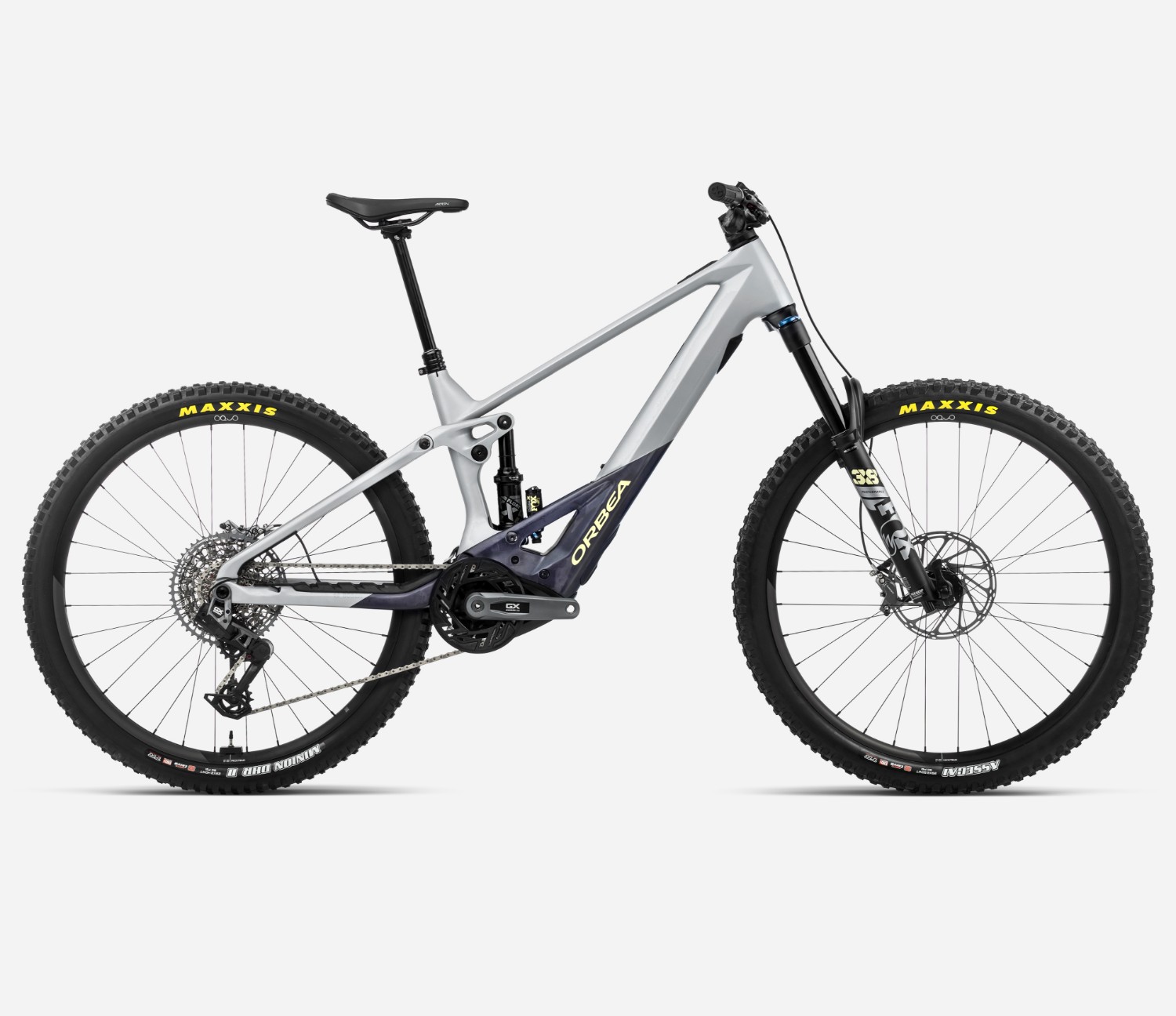

Orbea Wild M11-AXS 2024 - Electric Mountain Bike

The Orbea Wild M11-AXS is an electric mountain bike that delivers trail riders the joy of off-road riding. This enduro-focused bike boasts a robust OMR frame with 160mm travel, 29" wheels, and a concentric boost 12x148 system. The Fox 38 Float Performance fork and Fox Float X Performance shock ensure exceptional suspension performance.
Key Features:
- Frame: OMR 2023, 160mm travel, 29" wheels, concentric boost 12x148
- Fork: Fox 38 Float Performance 160 Grip 3-position QR15x110 e-bike optimized
- Rear Shock: Fox Float X Performance trunnion 2-position adjust
- Drivetrain: Sram GX Eagle AXS 12-speed
- Brakes: Sram Code Bronze hydraulic disc
- Wheels: 29", Maxxis Assegai 2.50" tires
- Standout Feature: E-evolved geometry for optimal control
- 0% APR Finance Available
Drive Information:
- Motor: Bosch Performance Line CX, Max Torque: Information not available
- Battery: Bosch PowerTube 750Wh horizontal BBP3770
- User Interface: Bosch System Controller BCR3100
Orbea's vision for the Wild M11-AXS goes beyond raw power, focusing on creating a lively, involving, and controlled ride. The bike's SBS design and Clean Cockpit prioritize simplicity, resulting in a sleek frame with clean lines. Despite its powerful Bosch motor and 750Wh battery, the Wild maintains a lightweight profile, delivering higher performance, extended range, and superior handling.
Tested to the limits in events like the EWS-E, where Orbea secured the overall team win, the Wild M11-AXS is engineered for maximum performance and reliability. Embrace the Wild and experience a new level of excitement on the trails.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized |
| Rear Shock | Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
| Front Brake | SRAM Code Bronze Hydraulic Disc |
| Rear Brake | SRAM Code Bronze Hydraulic Disc |
| Rear Mech | SRAM Gx Eagle AXS |
| Shifters | SRAM AXS Pod |
| Speed | 12 |
| Front Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Rear Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Chainset | SRAM Steel 34t |
| Chain | SRAM GX Eagle 12-Speed |
| Cassette | SRAM GX-1275 Eagle 10-52t 12-Speed |
| Battery Size (WH) | BOSCH Powertube 750Wh Horizontal BBP3770 |
| Motor | BOSCH Performance Line CX BDU3741 |
| User Interface | BOSCH System Controller BCR3100 |
![]()
Orbea Wild 2024 Size Chart
|
SIZE |
HEIGHT ( CM ) |
HEIGHT ( IN ) |
|
S |
150-175 |
59.1"-68.9" |
|
M |
160-185 |
63.0"-72.8" |
|
L |
170-195 |
66.9"-78.8" |
|
XL |
180-205 |
70.9"-80.7" |
What size frame do I need if I am between sizes? - read here
Orbea Wild 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube (C-T) |
415 |
415 |
435 |
460 |
|
Top Tube (Eff) |
573 |
595 |
622 |
649 |
|
Head Tube |
110 |
120 |
130 |
140 |
|
Chainstay |
448 |
448 |
448 |
448 |
|
BB Height |
353 |
353 |
353 |
353 |
|
BB Drop |
25 |
25 |
25 |
25 |
|
Wheelbase |
1223 |
1247 |
1277 |
1306 |
|
Head Angle |
64º |
64º |
64º |
64º |
|
Seat Angle |
77.5º |
77.5º |
77.5º |
77.5º |
|
Standover |
700 |
700 |
700 |
700 |
|
Reach |
435 |
455 |
480 |
505 |
|
Stack |
621 |
630 |
639 |
648 |
|
Fork Length |
575 |
575 |
575 |
575 |
|
Rake |
44 |
44 |
44 |
44 |
|
Crank |
165 |
165 |
165 |
165 |
|
Stem |
40 |
40 |
50 |
50 |
|
Handlebar |
800 |
800 |
800 |
800 |
|
Dropper Seatpost |
390/125 |
440/150 |
480/170 |
550/200 |
