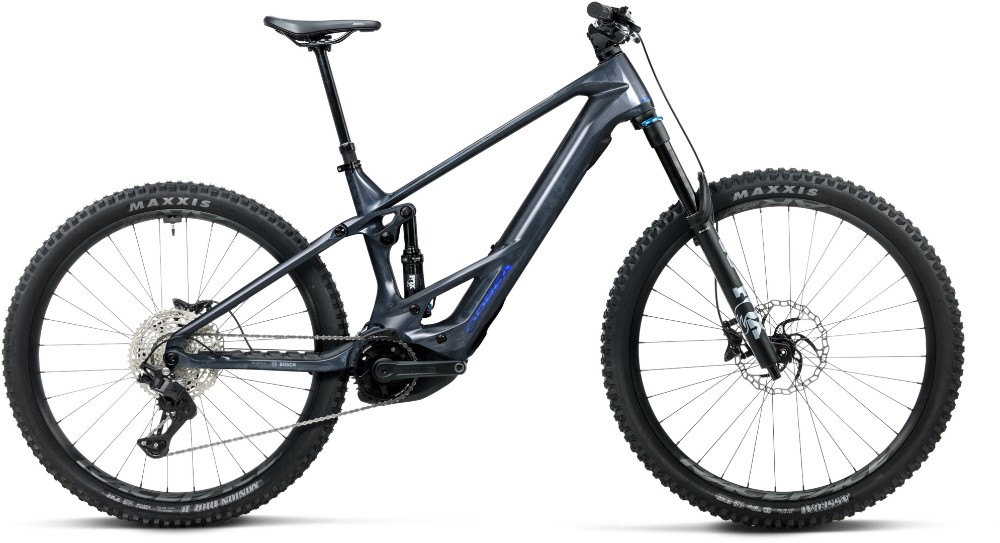

Orbea Wild TR M20 2027 - Electric Mountain Bike
With its OMR carbon frame, 150mm Fox suspension and 29in wheels, the Wild TR M20 is built for technical trail riding. Bosch CX power and a 750Wh battery help take care of the climbs, while Shimano 12-speed shifting gives you plenty of range.
Key Features:
- Lightweight Orbea OMR carbon frame with 29in wheels and trail geometry
- Fox 36 Float Performance GRIP 3-Pos fork with 150mm travel
- Fox Float Performance 2-Pos Evol LV shock with 150mm rear travel
- Shimano Deore 12-speed drivetrain with wide-range 10-51t cassette
- Shimano MT420 hydraulic disc brakes
- 29in Race Face AR 30c rims with 2.5in Maxxis Assegai EXO+ tyres
- Tubeless-ready rims and tyres allow an easy move to a tubeless setup
- Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX Gen 5, up to 120Nm torque
- Battery: Bosch PowerTube 750Wh
- User Interface: Bosch System Controller BRC3100
The Orbea Wild TR M20 brings a carbon frame to the Wild TR platform, combining full-power electric assistance with 150mm of suspension travel. Orbea's OMR carbon construction helps keep weight down while maintaining the stiffness needed for accurate handling on technical trails.
Its 29in wheels help carry speed across roots, rocks and rough ground, while the Concentric Boost rear end uses a 12x148mm axle for a solid connection between the frame and rear wheel. The Wild TR's geometry is designed to give you confidence on steeper and more technical sections without losing the responsive feel that makes a trail bike enjoyable across varied terrain.
A Fox 36 Float Performance fork provides 150mm of front travel. Its 36mm chassis offers plenty of support for technical riding, while the GRIP damper features three-position adjustment to help you adapt the fork to different terrain. A 15x110mm Boost axle adds stiffness at the front wheel for more precise steering.
At the rear, a custom-tuned Fox Float Performance 2-Pos Evol LV shock controls 150mm of rear-wheel travel. Its air spring makes it straightforward to adjust the suspension for rider weight, while the two-position adjustment lets you alter the shock's behaviour to suit climbing and descending.
Bosch's Performance Line CX Gen 5 motor provides the assistance, delivering up to 120Nm of torque. Strong support helps maintain momentum on steep and technical climbs, while the system responds to rider input to make managing power easier when traction is limited.
A 750Wh Bosch PowerTube battery provides the capacity for longer trail rides and routes with plenty of climbing. Integrating the battery into the downtube keeps it protected while helping maintain a clean frame design and centralised weight distribution.
The Bosch System Controller BRC3100 provides a simple interface for the electric system. Integrated neatly into the frame, it gives you quick access to essential information such as battery charge and assistance mode without adding a large display to the cockpit.
Shimano Deore 12-speed shifting provides a broad range of gears for tackling varied terrain. The M7200 SGS Shadow Plus rear mech is paired with an M6200 I-Spec EV shifter and 10-51t cassette, giving you low gearing for steep climbs alongside useful higher ratios for faster sections. An e*thirteen Helix Core chainset and Shimano M6100 chain complete the drivetrain.
Shimano MT420 hydraulic disc brakes provide dependable braking control for managing speed on technical descents, while the wide 800mm OC Mountain Control MC30 handlebar and short MC21 stem give you plenty of leverage when guiding the bike through rough or tighter sections.
Race Face AR 30c tubeless-ready rims provide a 30mm internal width suited to the Wild TR's high-volume trail tyres. Both wheels are fitted with 2.5in Maxxis Assegai tyres using the soft 3C MaxxGrip compound for traction on technical terrain. EXO+ casings add protection and support when riding over rocks and roots, while the tubeless-ready construction gives you the option to run a tubeless setup.
A Fizik Aidon saddle with manganese rails completes a build focused on practical trail performance. Rather than adding unnecessary complexity, the Wild TR M20 combines a lightweight carbon chassis with proven Fox suspension, wide-range Shimano gearing and a full-power Bosch drive system.
For riders who want the assistance and battery capacity of a full-power e-MTB but still value responsive handling, the Wild TR M20 offers a well-rounded setup for technical trails, longer rides and routes where challenging climbs are part of the fun.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 36 Float Performance 150, Grip 3-Pos, 15x110 |
| Rear Shock | Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC21, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Mech | Shimano Deore M7200 SGS Shadow Plus |
| Shifters | Shimano Deore M6200 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Rear Tyre | Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Chainset | e*thirteen Helix Core |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6200 10-51t 12-Speed |
| Battery Size (WH) | BOSCH Powertube 750Wh Horizontal BBP3770 |
| Motor | Bosch Performance Line CX BDU3843 |
| User Interface | Bosch System Controller BRC3100 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
Get this on cycle to work
Save up to £2,586.78
Cycle to work is a government funded salary sacrifice scheme which allows you to spread the cost of purchasing a bike and equipment and save on Income Tax and National Insurance.
Lower Tax Rate | Higher Tax Rate | |
|---|---|---|
Monthly pre-tax cost | £513.25 | £513.25 |
Monthly cost to you | £369.54 | £297.69 |
Total cost over 12 mths | £4,434.48 | £3,572.22 |
Total savings | £1,724.52 | £2,586.78 |
The calculations provided here are based on a monthly pay frequency and will vary depending on your personal taxation and your employers scheme.
