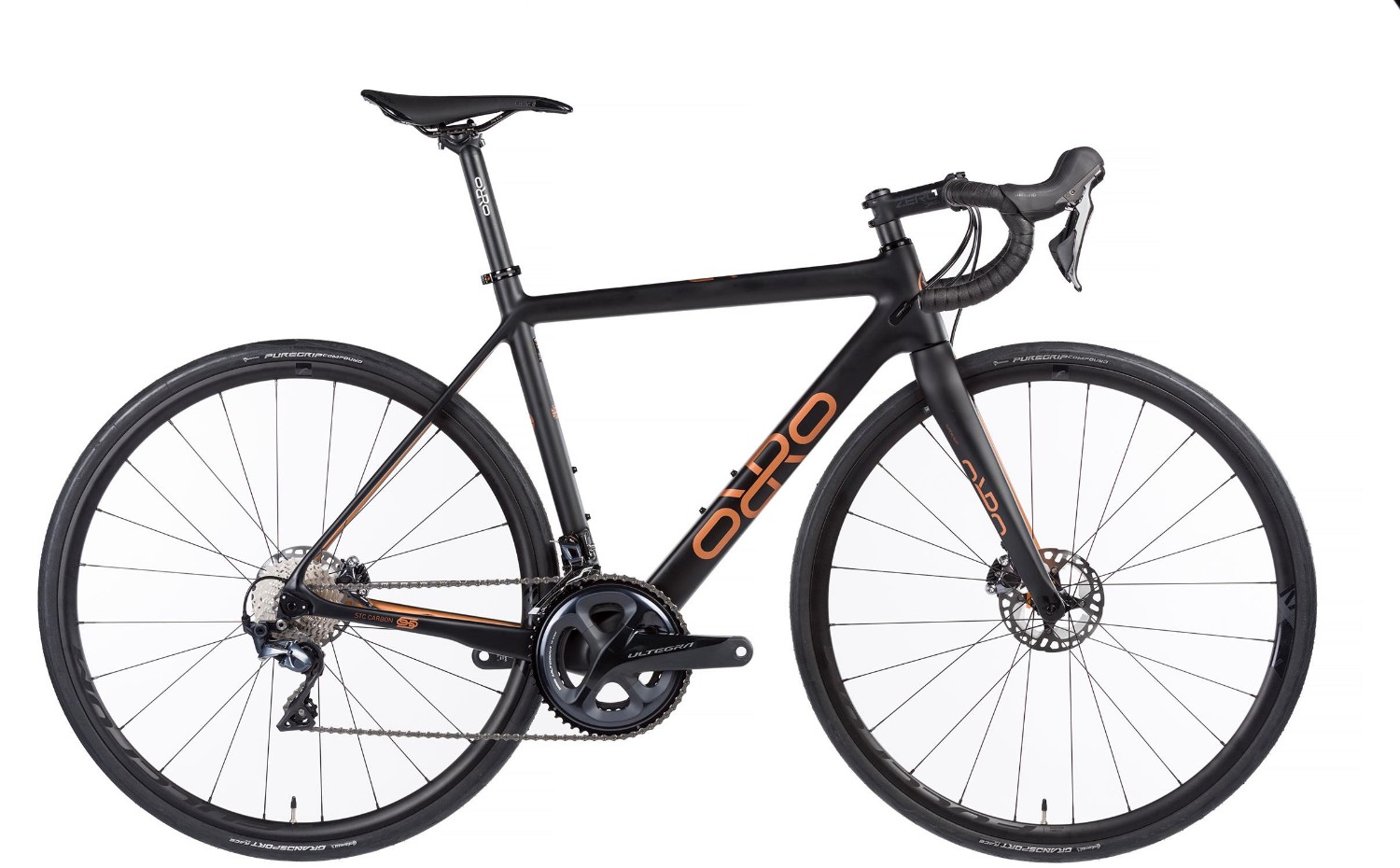

Orro GOLD STC Ultegra R500 Signature 2023 - Road Bike
The Gold STC represents the ORRO gold standard in ride quality with a competitive frameset weight and clean aesthetic. The geometry of our longest running model has been revised across a myriad of generations to create a bike which seamlessly balances speed with efficiency for endurance riding.
The rider is perfectly positioned to allow for full focus on the ride ahead while the Sigmatex engineered spread tow carbon frame offers ride dampening qualities for unrivalled comfort. Our unique relationship with Sigmatex, who are a UK based carbon composite specialist, allows us to have an intrinsically detailed and supportive design ethic so we can produce the best results.
The STC material was chosen for its combination of low weight and high stiffness allowing us to optimise certain areas of the frame for the ride characteristics that we wish to promote. This has given us a future classic in the Gold STC - a bike of climbing category weight with all the comfort and efficiency required to take on any endurance challenge you can point it at.
This limited edition Signature model has been painted in a superb satin black finish with rose gold accents.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ORRO Gold STC Disc |
| Fork | ORRO Gold STC Disc |
| Bars | Deda Zero 1 |
| Front Brake | Shimano Ultegra Disc 8000 Hydraulic |
| Rear Brake | Shimano Ultegra Disc 8000 Hydraulic |
| Brake Lever | Shimano Ultegra Disc 8000 Hydraulic |
| Front Mech | Shimano Ultegra 8000 |
| Rear Mech | Shimano Ultegra 8000 |
| Shifters | Shimano Ultegra 8000 Mechanical |
| Speed | 22 |
| Rims | Fulcrum R500 DB |
| Front Hub | Fulcrum R500 DB |
| Rear Hub | Fulcrum R500 DB |
| Front Tyre | Continental Grand Sport Race 28c |
| Rear Tyre | Continental Grand Sport Race 28c |
| Seat Post | Orro Alloy Setback |
| Saddle | Prologo Kappa RS |
| Chainset | Shimano Ultegra 8000 |
| Chain | Shimano CN-HG601 |
| Cassette | Shimano Ultegra 8000 11-30 |
| Pedals | Resin Platform |
Orro Gold STC 2023 Size Chart
| Size | Height (cm) | Height (Inch) |
| XS | 155 - 163 | 5'1 - 5'4 |
| S | 163 - 170 | 5'4 - 5'7 |
| M | 170 - 178 | 5'7 - 5'10 |
| L | 178 - 183 | 5'10 - 6'0 |
| XL | 183 - 191 | 6'0 - 6'3 |
Orro Gold STC 2023 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top tube | 500 | 520 | 540 | 567 | 584 |
| Head tube | 115 | 135 | 155 | 180 | 200 |
| Head tube angle | 71 | 71.5 | 73 | 73 | 73.3 |
| Wheelbase | 969 | 975 | 982 | 997 | 1015 |
| Seat tube angle | 75 | 74.5 | 74 | 73.5 | 73.5 |
| Chainstay | 407 | 407 | 407 | 407 | 410 |
| Seat tube | 500 | 520 | 539 | 565 | 585 |
| Stack | 510 | 531 | 559 | 582 | 600 |
| Reach | 362 | 372 | 380 | 395 | 406 |
What size frame do I need if I am between sizes? - read here
