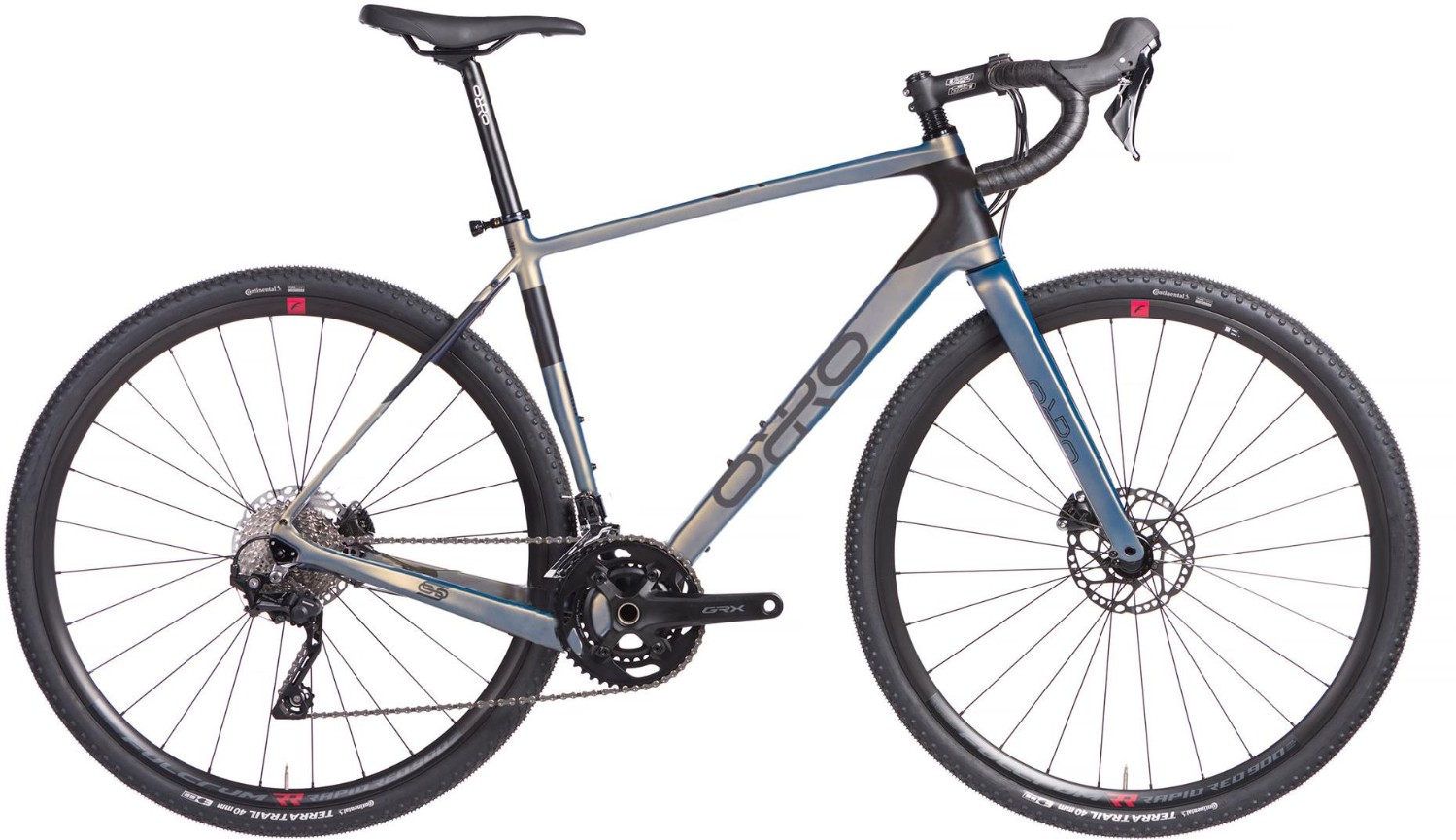

Orro Terra C GRX400 RR9 2023 - Gravel Bike
The Orro Terra C GRX400 is characterised by its light responsive ride quality, built with the specifications necessary to provide capable control across varied terrain. An adaptive bike crafted to ensure that your next adventure, new route, or old commute is a total blast.
Key Features :
- Orro Terra C frame inspires confident handling
- Orro Terra C fork allows for swift steering on the road & off-road
- 40mm Continental Terra Trail Tyres ensure confident grip
- Shimano GRX400 10 Speed Groupset offers supreme shifting
- Colours: Radiant Steel Matte
- Sizes: Extra Small (46cm), Small (48cm), Medium (51cm), Large (54cm)
- The Orro Terra C GRX400 is available with 0% APR finance
The frame geometry is poised to descend and corner with ease inspiring confident off-road handling. Take it back to the tarmac and the excellent power transfer provided by the carbon layup is immediately apparent. Innegra fibres are woven into the carbon at strategic locations to protect the frame from impact damage; this ensures the ‘light and fast’ design ethos is met with the durability riders expect.
Terra C now has a semi-integrated front end for an ultra-clean aesthetic. The cables enter the frame via a cable box on the headset and run internally through the headtube, protecting them from the elements completely. Apart from looking seriously slick this also means the frame suffers no cable rub abrasion to the headtube when the handlebars are turned, and no interference with handlebar bags. This new design can also be made fully integrated, so you see no cables at all, with a compatible bar & stem.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Terra C carbon Matte Radiant colour |
Fork | Terra C carbon Matte Radiant colour |
Headset | Token sealed bearing semi-integrated |
Stem | FSA Stem Omega |
Bars | FSA Handlebar Gravel Adventure Compact |
Front Brake | Shimano GRX400 Hydro |
Rear Brake | Shimano GRX400 Hydro, Shimano SM-RT64 160mm |
Brake Lever | Shimano GRX400 Hydro, Shimano SM-RT64 160mm |
Front Mech | Shimano GRX400 |
Rear Mech | Shimano GRX400 |
Shifters | Shimano GRX400 |
Speed | 20 |
Rims | Fulcrum Rapid Red 900 HG11 |
Front Hub | Fulcrum Rapid Red 900 HG11 |
Rear Hub | Fulcrum Rapid Red 900 HG11 |
Front Tyre | Conti Terra Trail black/black skin SL 40-622 |
Rear Tyre | Conti Terra Trail black/black skin SL 40-622 |
Seat Post | Orro alloy 25mm Offset Seatpost 27.2x350mm |
Saddle | Orro Bostal Gravel Saddle |
Chainset | Shimano GRX400 |
Bottom Bracket | FSA sealed bearing BB86 (41x86.5mm) |
Chain | Shimano HG54 |
Cassette | HG500 10-Speed 11-34T Cassette |
Pedals | Resin Platform |
Orro Terra 2023 Size Chart
Size | Height (cm) | Height (Inch) |
S | 163 - 170 | 5'4 - 5'7 |
M | 170 - 178 | 5'7 - 5'10 |
L | 178 - 183 | 5'10 - 6'0 |
XL | 183 - 191 | 6'0 - 6'3 |
Orro Terra 2023 Geometry
XS | S | M | L | XL | |
---|---|---|---|---|---|
Top tube | 508 | 529 | 553 | 581 | 604 |
Head tube | 120 | 140 | 165 | 192 | 225 |
Head tube angle | 71 | 71 | 71 | 71 | 71 |
Wheelbase | 997 | 1013 | 1031 | 1052 | 1076 |
Seat tube angle | 75.6 | 74.9 | 74.2 | 73.3 | 72.6 |
Chainstay | 420 | 420 | 420 | 422.5 | 425 |
Seat tube | 460 | 480 | 510 | 545 | 580 |
Stack | 544 | 563 | 587 | 612 | 644 |
Reach | 368 | 377 | 387 | 397 | 407 |
What size frame do I need if I am between sizes? - read here
