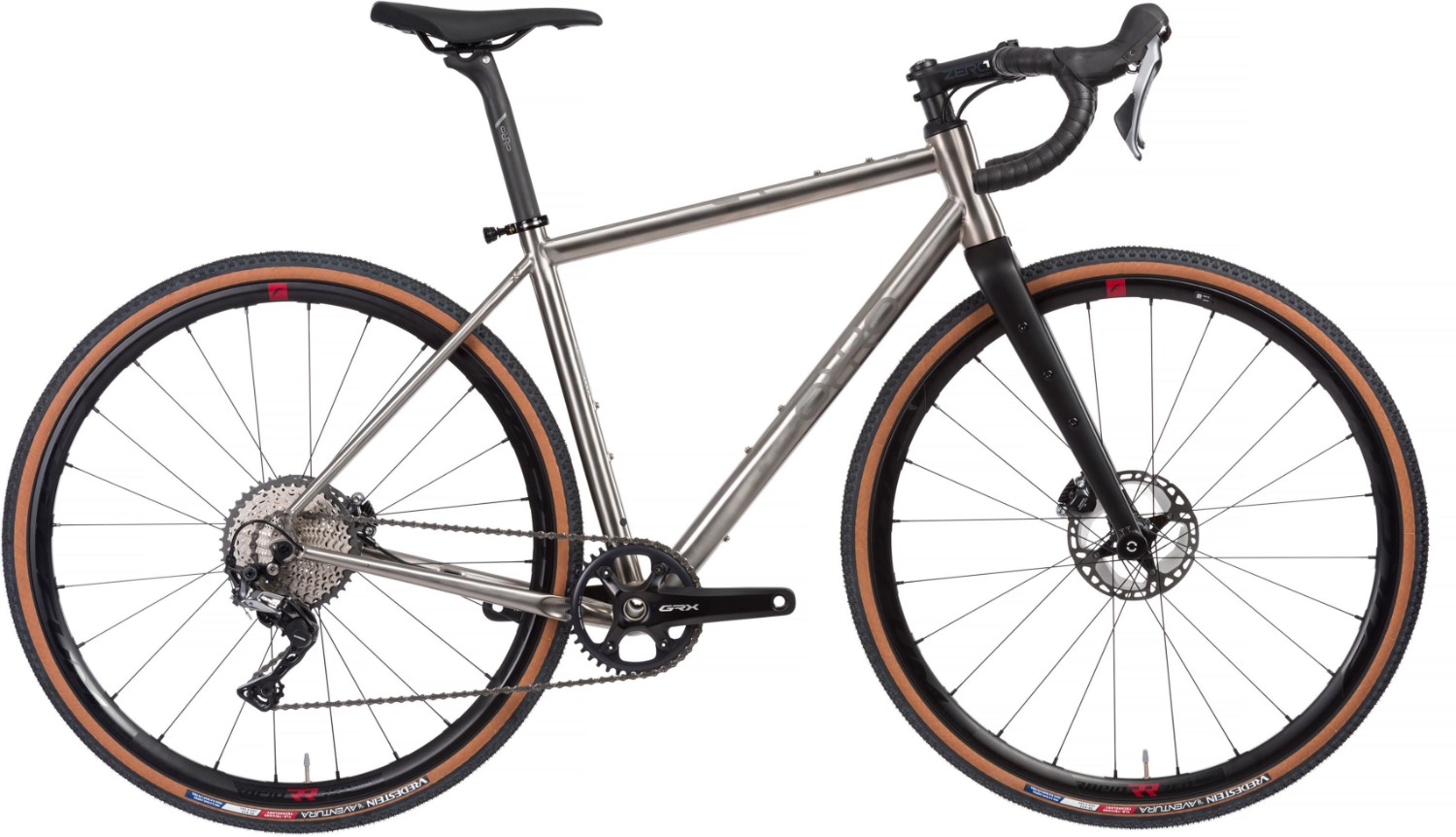

Orro Terra Titanium GRX800 RR5 2023 - Gravel Bike
The all-new Terra Ti is based on the Terra C and uses the same geometry as our well-reviewed carbon models with the elegance and timeless looks that titanium affords. This full titanium frame is made with hydroformed 3.25 titanium with a 6.4 cast bottom bracket shell. Built with bike packing and multi day riding in mind, this bike comes with mounting points for a pannier rack, mudguards and a multitude of others.
The Terra Ti comes with semi-integrated cable routing as standard through the headset for a clean and tidy front end and full internal dyno routing through the fork should you wish to use it. The full carbon fork has an adjustable rake of 5mm from 47mm to 52mm depending on your riding style and if you want to alter the ride dynamics. The frame houses a T47 threaded Bottom Bracket so you can run any axle standard. The frame will take a 700c x 44c tyre or a 650b x 47c tyre to give you great versatility.
This all creates a wonderfully compliant, great handling bike that is great for fast gravel riding, bike packing & touring or a super comfortable road/commuter bike. With the unique properties that Titanium brings, this bike is built for performance and will handle anything you can throw at it.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orro Terra Ti |
| Stem | Deda Zero 1 |
| Bars | Deda Gravel 100 Flared |
| Front Brake | Shimano GRX800 |
| Rear Brake | Shimano GRX800 |
| Brake Lever | Shimano GRX800 |
| Rear Mech | Shimano GRX800 |
| Shifters | Shimano GRX800 |
| Speed | 11 |
| Rims | Fulcrum Rapid Red 5 |
| Front Hub | Fulcrum Rapid Red 5 |
| Rear Hub | Fulcrum Rapid Red 5 |
| Front Tyre | Vredestein Aventura 700c |
| Rear Tyre | Vredestein Aventura 700c |
| Seat Post | Orro Carbon Seatpost |
| Saddle | Orro Bostal Saddle |
| Chainset | Shimano GRX800 40T |
| Bottom Bracket | T47 Threaded |
| Cassette | Shimano GRX800 11-42T |
| Pedals | Resin Platform |
Orro Terra 2023 Size Chart
| Size | Height (cm) | Height (Inch) |
| S | 163 - 170 | 5'4 - 5'7 |
| M | 170 - 178 | 5'7 - 5'10 |
| L | 178 - 183 | 5'10 - 6'0 |
| XL | 183 - 191 | 6'0 - 6'3 |
Orro Terra 2023 Geometry
|
XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top tube | 508 | 529 | 553 | 581 | 604 |
| Head tube | 120 | 140 | 165 | 192 | 225 |
| Head tube angle | 71 | 71 | 71 | 71 | 71 |
| Wheelbase | 997 | 1013 | 1031 | 1052 | 1076 |
| Seat tube angle | 75.6 | 74.9 | 74.2 | 73.3 | 72.6 |
| Chainstay | 420 | 420 | 420 | 422.5 | 425 |
| Seat tube | 460 | 480 | 510 | 545 | 580 |
| Stack | 544 | 563 | 587 | 612 | 644 |
| Reach | 368 | 377 | 387 | 397 | 407 |
