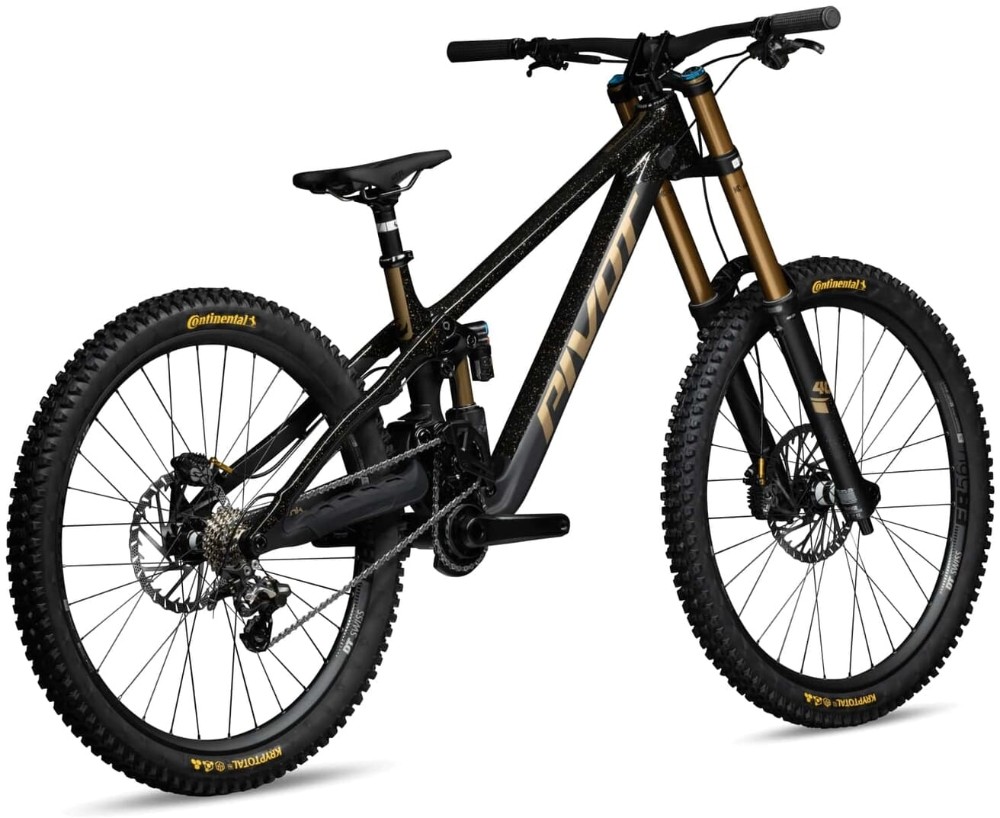

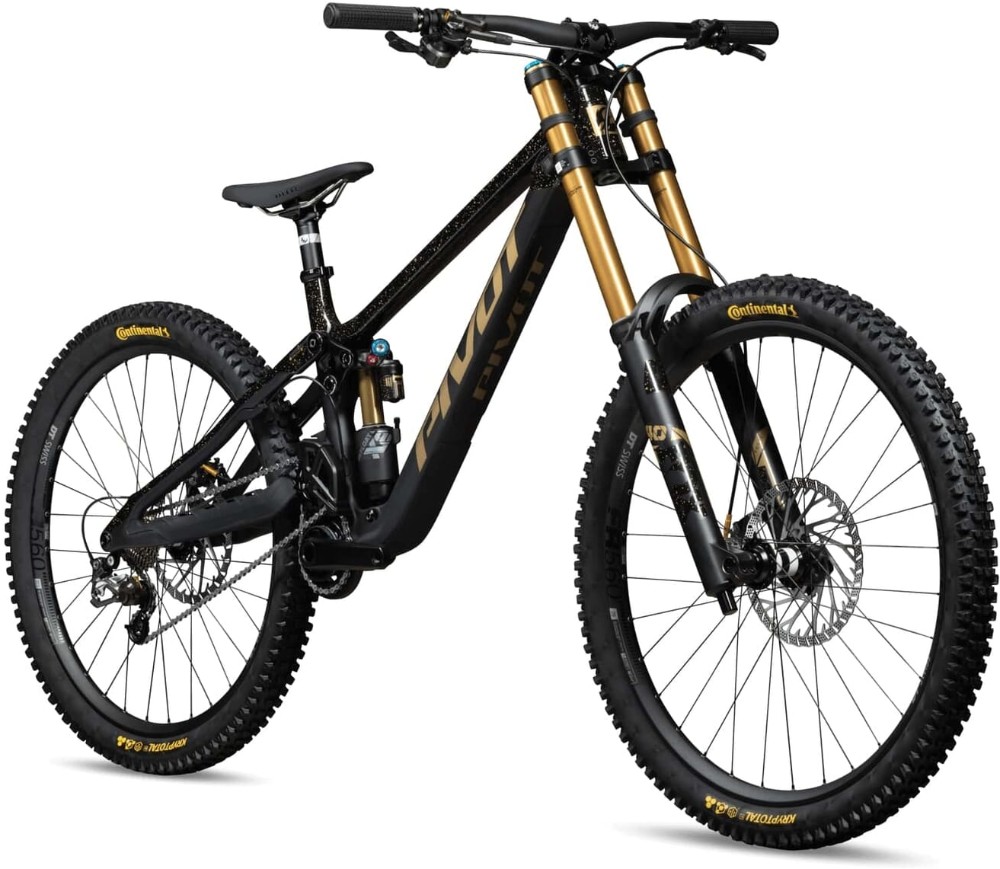

Pivot Phoenix V5 Pro Saint Mountain Bike 2025 - Downhill Full Suspension MTB
The Pivot Phoenix V5 is designed to conquer the most challenging downhill trails. Its unique mid-high pivot suspension enhances stability and control on descents while maintaining excellent ground contact and grip. The innovative dual-chain drive system ensures a smooth, quiet ride, improving pedalling efficiency and virtually eliminating kickback, so you stay firmly on your pedals through technical terrain.
Key Features:
- Frame: Lightweight carbon frame with mid-high pivot and adjustable geometry.
- Front Suspension: Fox Factory 40 GRIP X2 fork with 203mm travel for extreme control.
- Rear Suspension: Fox Factory Float X2 shock with 210mm travel for smooth traction.
- Drivetrain: Shimano Saint M820 10-speed for downhill performance.
- Brakes: Shimano Saint M820 4-piston hydraulic brakes with Galfer Shark rotors (223mm/203mm).
- Wheels: DT Swiss FR 560 mixed wheels with Continental Kryptotal DH tyres.
- Standout Feature: Dual-chain drive for efficiency and minimal pedal kickback.
- Finance: Available with 0% APR finance.
The Phoenix’s MX wheel setup combines a 29” front wheel for stability and rollover capability with a 27.5” rear wheel for agility and a lower centre of gravity. This pairing offers the perfect balance for navigating technical tracks and high-speed descents.
Pivot’s Flip Chip allows riders to adjust the geometry, raising the bottom bracket and steepening the head angle for rocky trails or leaving it for maximum control at high speeds. Two progressivity settings, including one tuned by downhill champion Bernard Kerr, ensure the suspension matches your riding style.
Designed with Pivot’s Hollow Core Carbon moulding technology, the frame is lightweight yet incredibly stiff, offering consistent performance across all sizes. Riders from 5’1” to 6’7” will find a perfect fit, thanks to size-specific tuning and the reach adjuster headset for fine-tuning.
Whether racing downhill or pushing boundaries on technical descents, the Pivot Phoenix V5 Pro Saint is built to deliver speed on the roughest of terrain.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Fork | Fox Factory 40 29”, 52mm offset, GRIP X2 - 203mm |
| Rear Shock | FOX FACTORY FLOAT X2 |
| Headset | Pivot Precision Sealed Cartridge - DH |
| Stem | Phoenix Team DH - 45mm |
| Bars | Phoenix Team Low Rise Carbon - 800mm |
| Front Brake | Shimano Saint M820 4-piston, Galfer Shark 6-Bolt - 223mm |
| Rear Brake | Shimano Saint M820 4-piston, Galfer Shark 6-Bolt - 203mm |
| Brake Lever | Shimano Saint M820 |
| Rear Mech | Shimano Saint M820 10-Speed |
| Shifters | Shimano Saint M820 10-Speed |
| Rims | DT Swiss FR 560 w/ DT Swiss 350 hub - Mixed |
| Front Hub | 20x110 |
| Rear Hub | 12x157 |
| Front Tyre | Continental Kryptotal-F 29" x 2.4" 3C, Super Soft, DH Casing |
| Rear Tyre | Continental Kryptotal-R 27.5" x 2.4" Super Soft, DH Casing |
| Seat Post | Phoenix Race Aluminum |
| Saddle | Phoenix WTB Team High Tail Trail |
| Chainset | Praxis DH9-73 M30 165mm (w/ Pivot 27T Ring) |
| Chain | Shimano CN-6701 10-Speed |
| Cassette | Shimano Tiagra CS-HG500 11-25t |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
