Product Description

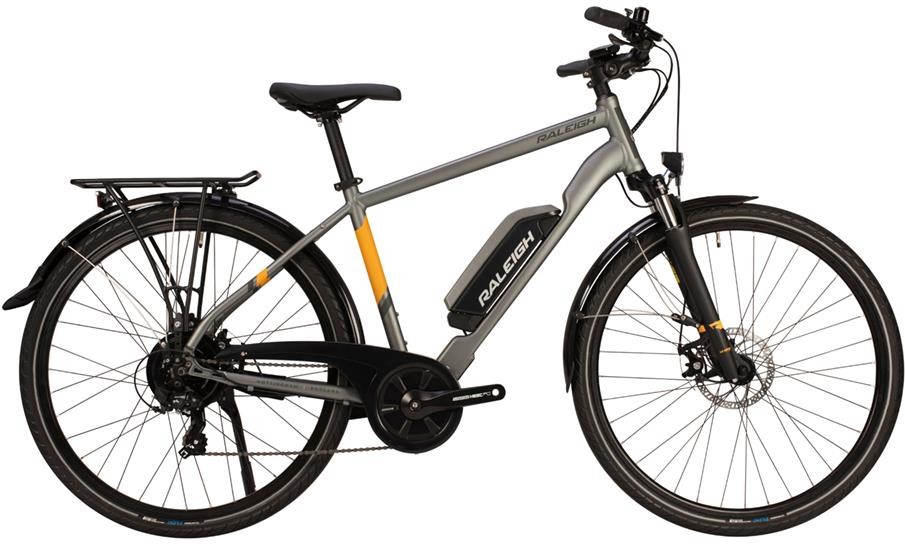

We designed the Array to be the best-looking entry-level e-bike on the market, and we think we delivered first time around! So, we thought we'd make it even more impressive. With all new colourways, battery improvement and a sleeker finish, we are sure that you won't be able to resist the Array for your first e-bike.
The Raleigh Array takes a beautifully styled Aluminium frame and combines it with the sophisticated E-Motion system that will smoothly assist you when you need to tackle an incline. The E-motion system and rear motor give the rider a seamlessly smooth ride at a realistic e-bike price. The built-in software provides an even delivery of power meaning that the bike pulls away smoothly and without the jerky surge of rival systems. With five different riding modes, as well as an extremely handy walk assist function always allows the rider to be in complete control.
The Suntour E25 rear wheel motor is coupled with 7 speed Shimano derailleur gears featuring the easy to use twist shift dial and provide a wide range of gears to choose from. The new and more powerful 400wh battery will take you up to up to 100km on a single charge depending on the level of assistance selected and can be easily removed so you can take it into the house to charge it for your next ride. This Array comes fully equipped with a kickstand, comfortable saddle, steel mudguards, front and rear lights and a rear pannier rack so you can ride all year round, day or night with your fully loaded pannier bags if you wish.
So who is the Array for? Well, the answer is, everybody. The Array comes in two colour options as well as the choice between crossbar and open frame. Due to the Array's versatility, It can be used to commute to work, getting out and about on the weekend with family or just for leisurely rides around town. All of this with an extra bit of assistance along the way - so what are you waiting for?
Occasionally, without notice, manufacturers change product design and/or specifications.
Specification
| Frame: | Alloy frame 7005 |
| Fork: | Suntour Nex suspension fork 63mm travel |
| Headset: | Low Stack semi integrated |
| Stem: | Alloy ahead Stem |
| Bars: | XLC Handlebar |
| Front Brake: | Tektro Hydraulic disc brake |
| Rear Brake: | Tektro Hydraulic disc brake |
| Brake Lever: | Tektro Hydraulic disc brake |
| Rear Mech: | Altus 7 speed |
| Shifters: | Shimano 7 speed |
| Speed: | 7 |
| Rims: | Double Wall rim 36 hole 20" |
| Front Hub: | Alloy 36 hole black |
| Rear Hub: | Suntour E25 Performance Motor |
| Front Tyre: | Vee Rubber , 700x47c reflective stripe |
| Rear Tyre: | Vee Rubber , 700x47c reflective stripe |
| Seat Post: | Alloy Seatpost 30.9 |
| Saddle: | XLC ebike saddle |
| Chainset: | 42T Suntour with Torque sensor |
| Bottom Bracket: | SUNTOUR, BB8-XCT-SQS122E-73-CBT |
| Chain: | KMC 7 speed |
| Cassette: | Shimano HG200 7 speed 12-28cassette |
| Pedals: | Comfort Pedals with Anti Slip |
| Weight: | 28kg |
| Battery (Wh): | 400 |
| Motor: | Suntour E25 Performance |
Raleigh Array Sizing
Raleigh Array Size Guide
|
Frame Size (cm) |
Frame Size (in) |
Rider Height (in) |
Rider Height (cm) |
|
44 - 46 (26" wheel) |
17 - 18" |
5' - 5' 4" |
152 - 163 |
|
46 - 48 |
18 - 19" |
5' 4" - 5' 9" |
163 -175 |
|
50 - 52 |
19 - 20" |
5' 7" - 6' 1" |
170 - 185 |
|
54 - 56 |
21 - 22" |
5' 10" - 6' 3" |
178 - 193 |
What size frame do I need if I am between sizes? - read here
Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!
Electric Urban Bike Guide
Electric Urban Bike Guide
Is an Electric Urban Bike Right for Me?
If you are new to the world of cycling and ebikes, our electric bike buyers guide will give you a good overview of the different types of pedal assist bikes. This will help you decide if an electric urban bike is right for you.
E bikes are a great way to cycle further with less effort. Urban electric bikes are designed to be comfortable, practical and efficient on roads and cycle tracks. This means that urban e bikes are perfect for commuting and getting about town as well as effortless cycling on quiet roads and cycle tracks.
How do E Bikes Work?
All our ebikes are pedal assist models. This means that the electric motor adds to your natural pedalling power, making them easier to ride. The effect is seamless, and you will feel the extra boost from the first pedal stroke. The harder you pedal the more the power the motor gives you. When you stop pedalling the motor stops too.
You can vary the amount of power that the drive unit delivers when you pedal. All you need to do is select one of the different power modes using the display unit or power button. Some e bikes allow you to customize these modes through a smart phone app that connects to the bike through Bluetooth.
By law all pedal assist ebike are limited to only offer assistance up to 15.5mph. This means that you can ride an ebike everywhere that you can ride a regular bike. You can of course ride faster, but you will have to rely solely on your own natural pedalling power at speeds over 15.5mph.
Are the motors different?
Hub drive motors
Hub drive motors sit inside the wheel hub. These motors are lighter weight than crank drive units but are less powerful, and the power is applied more subtly. You still get enough power to climb the hills and accelerate from a standing start easily, and once up to speed these bikes are easier to pedal. Because they produce less power, hub drive ebikes tend to have smaller battery packs that can be hidden in the frame more easily.
Crank drive motors
Crank drives use a more powerful motor that sits in the bottom bracket area of the bike. The power is added directly to the drivetrain through the cranks. The added power is much more noticeable on a crank drive bike and you will be able to power up the climbs like a Pro athlete. Of course, you can always turn down the amount of power that the motor delivers. This means that you can extend the range and take advantage of the larger battery packs that these bikes are equipped with.
Batteries
Most e bikes use a lithium Ion battery pack. These hold plenty of charge, offer long lasting performance and are quick to charge. The capacity of the battery varies depending on the model. Battery capacity starts at 200Wh for hub drive bikes and goes up to 500Wh or more on high-end crank drive bikes. The batteries can usually be charged both on and off the bike. A 500Wh battery pack will usually take about 4 hours to charge fully from flat.
Display and Connectivity
All ebikes have some type of display that allows you to swap between the different power modes. On some bikes the display is minimal with LED lights to show the remaining battery capacity and power modes. Others have screen that show additional ride data as well. The very best displays act like a high-end cycling computer.
Which type of electric road bike is best for me?
There are a few different types of urban e bike and each is best for a certain type of cycling. Many come ready fitted with luggage racks and mudguards, but you can fit these accessories to all urban e bikes.
Dutch’ style e bikes
Offering an upright cycling position Dutch style e bikes are comfortable and easy to ride. These bikes are perfect for gentle rides around town. You can visit friends or nip to the shops without looking like a ‘cyclist’.
Hybrid’ style urban e bikes
These bikes are based around the classic hybrid look with a mountain bike style riding position combined with road bike wheels. Hybrid style e bikes offer a sportier riding position, so they are better for cycling on busy streets than a Dutch style e bike.
Flat bar road e bikes
Just like a road e bike but with flat handlebars these bikes offer a very sporty riding position. The flat handlebars mean that they are still easy to navigate through the urban jungle. Fit some mudguards and a rack and these bike are very practical too.
Cargo e bikes
If you want to carry lots of luggage then you can’t beat a cargo e bike for practicality. The pedal assist motor makes lot of sense with a cargo bike. Regular cargo bikes require a lot of muscle power, so this limits their use. You don’t get this problem with a cargo e bike, so everyone can ride one.
