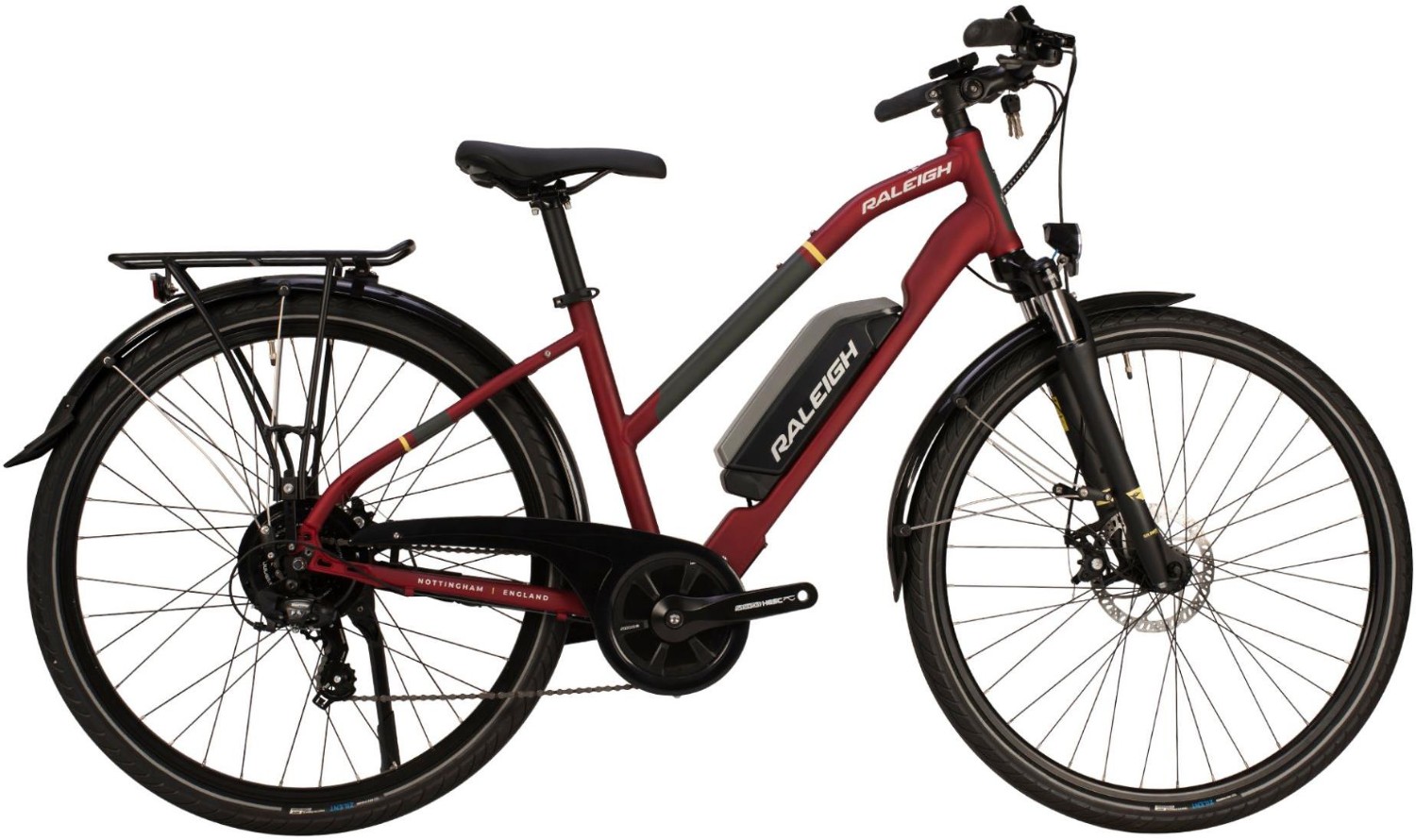

Raleigh Array Derailleur Open 2020 - Electric Hybrid Bike
- ShowProduct Information We designed the Array to be the best-looking entry-level e-bike on the market, and we think we deliv... read more
- Show Customer Reviews (0)
- Show Electric Bike Size Guide
- Show Electric Urban Bike Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
We designed the Array to be the best-looking entry-level e-bike on the market, and we think we delivered first time around! So, we thought we'd make it even more impressive. With all new colourways, battery improvement and a sleeker finish, we are sure that you won't be able to resist the Array for your first e-bike.
The Raleigh Array takes a beautifully styled Aluminium frame and combines it with the sophisticated E-Motion system that will smoothly assist you when you need to tackle an incline. The E-motion system and rear motor give the rider a seamlessly smooth ride at a realistic e-bike price. The built-in software provides an even delivery of power meaning that the bike pulls away smoothly and without the jerky surge of rival systems. With five different riding modes, as well as an extremely handy walk assist function always allows the rider to be in complete control.
The Suntour E25 rear wheel motor is coupled with 7 speed Shimano derailleur gears featuring the easy to use twist shift dial and provide a wide range of gears to choose from. The new and more powerful 400wh battery will take you up to up to 100km on a single charge depending on the level of assistance selected and can be easily removed so you can take it into the house to charge it for your next ride. This Array comes fully equipped with a kickstand, comfortable saddle, steel mudguards, front and rear lights and a rear pannier rack so you can ride all year round, day or night with your fully loaded pannier bags if you wish.
So who is the Array for? Well, the answer is, everybody. The Array comes in two colour options as well as the choice between crossbar and open frame. Due to the Array's versatility, It can be used to commute to work, getting out and about on the weekend with family or just for leisurely rides around town. All of this with an extra bit of assistance along the way - so what are you waiting for?
Occasionally, without notice, manufacturers change product design and/or specifications.
|Frame:||Alloy frame 7005|
|Fork:||Suntour Nex suspension fork 63mm travel|
|Headset:||Low Stack semi integrated|
|Stem:||Alloy ahead Stem|
|Front Brake:||Tektro Hydraulic disc brake|
|Rear Brake:||Tektro Hydraulic disc brake|
|Brake Lever:||Tektro Hydraulic disc brake|
|Rear Mech:||Altus 7 speed|
|Shifters:||Shimano 7 speed|
|Rims:||Double Wall rim 36 hole 20"|
|Front Hub:||Alloy 36 hole black|
|Rear Hub:||Suntour E25 Performance Motor|
|Front Tyre:||Vee Rubber , 700x47c reflective stripe|
|Rear Tyre:||Vee Rubber , 700x47c reflective stripe|
|Seat Post:||Alloy Seatpost 30.9|
|Saddle:||XLC ebike saddle|
|Chainset:||42T Suntour with Torque sensor|
|Bottom Bracket:||SUNTOUR, BB8-XCT-SQS122E-73-CBT|
|Chain:||KMC 7 speed|
|Cassette:||Shimano HG200 7 speed 12-28cassette|
|Pedals:||Comfort Pedals with Anti Slip|
|Motor:||Suntour E25 Performance|
|User Interface:||Suntour multi-function LED display|
