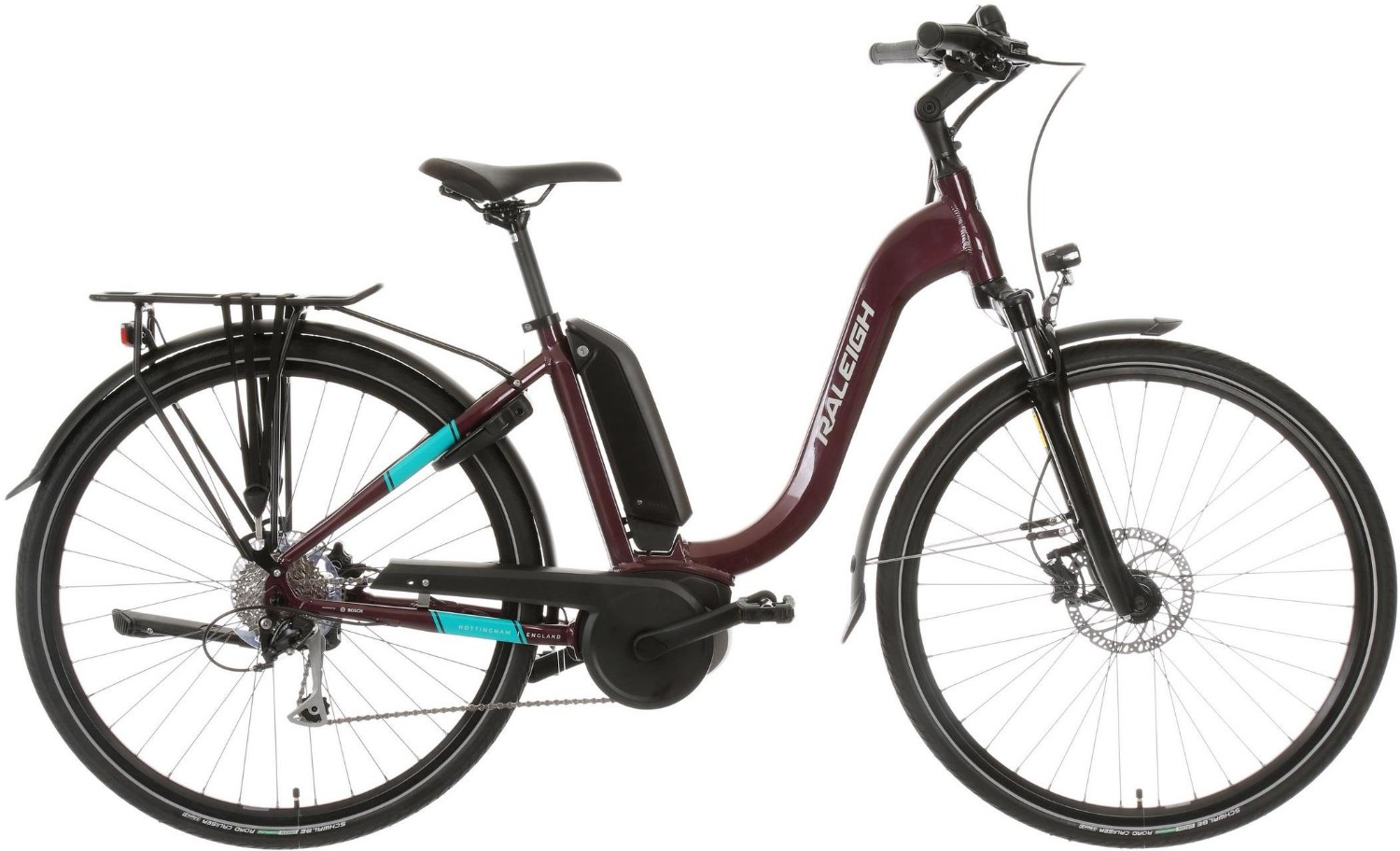

Raleigh Felix+ Step-through 2020 - Electric Hybrid Bike

The Raleigh Felix+ Low Step is a premium electric hybrid bike, capable of tackling commutes with ease or providing a comfortable option for leisurely weekend rides.
As well as featuring front suspension to make riding over mixed terrains more comfortable, you get a choice between 9 speed derailleur gears for increased range or 7 speed hub gears for minimal maintenance. Plus, with electric assistance available at the touch of a button, you're guaranteed to glide up hills with ease when you need the extra support.
Motor
The Felix+ Low Step uses the Active Line Plus Motor system from market leader Bosch and can provide up to a 270% power output in its top setting. The crank-driven, centre mounted motor provides the most natural feeling power delivery and is virtually noise and drag free, making riding a pleasure.
Battery
The Felix+'s 400Wh battery capacity can provide a realistically achievable range of 75 miles on a single charge. The battery is locked onto the bike using an individual key to protect it from theft, however it can be easily removed from the bike for simple indoor charging.
Display Screen
The advanced Bosch Intuvia on-board computer is fitted in the centre of the handlebars for easy visibility, while a separate control unit sits on the left handlebar allowing you to easily switch between modes using the + and - buttons. The display screen shows a range of information including which of the four levels of assistance is selected, estimated range remaining, speed, trip distance, and battery life remaining.
The Felix+ comes fully equipped with:
- mudguards
- pannier rack
- kickstand
- integrated front lights
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame AL6061 |
| Fork | Suntour NEX e25 |
| Headset | Ahead Type |
| Stem | Adjustable |
| Bars | Raleigh Comfort Rise Bar |
| Front Brake | Shimano M200 hydraulic disc brake |
| Rear Brake | Tektro T385 |
| Brake Lever | Tektro T285 |
| Rear Mech | Acera 9 speed |
| Shifters | Shimano 9 speed |
| Speed | 9 |
| Rims | Alloy double wall for disc brake |
| Front Hub | Alloy disk hub |
| Rear Hub | Alloy cassette Hub 36 hole disc |
| Front Tyre | Schwalbe Road cruiser with reflective stripe |
| Rear Tyre | Schwalbe Road cruiser with reflective stripe |
| Seat Post | Alloy Seatpost 30.9 |
| Saddle | Selle Royal Milo |
| Chainset | Raleigh Alloy BOSCH crank set |
| Bottom Bracket | Bosch Integrated in motor |
| Chain | KMC 9 |
| Cassette | Sunrace 9 speed |
| Pedals | City anti slip |
| Weight | 24.5kg |
| Battery Size (WH) | Bosch Power Pack Frame Mount 400Wh, 36V |
| Motor | Bosch Active Line Plus |
| User Interface | Bosch Intuvia multifunctional display with operation unit & push-assistance |
![]()
Raleigh Felix Size Guide
|
Frame Size (cm) |
Frame Size (in) |
Rider Height (in) |
Rider Height (cm) |
|
44 - 46 (26" wheel) |
17 - 18" |
5' - 5' 4" |
152 - 163 |
|
46 - 48 |
18 - 19" |
5' 4" - 5' 9" |
163 -175 |
|
50 - 52 |
19 - 20" |
5' 7" - 6' 1" |
170 - 185 |
|
54 - 56 |
21 - 22" |
5' 10" - 6' 3" |
178 - 193 |
What size frame do I need if I am between sizes? - read here
