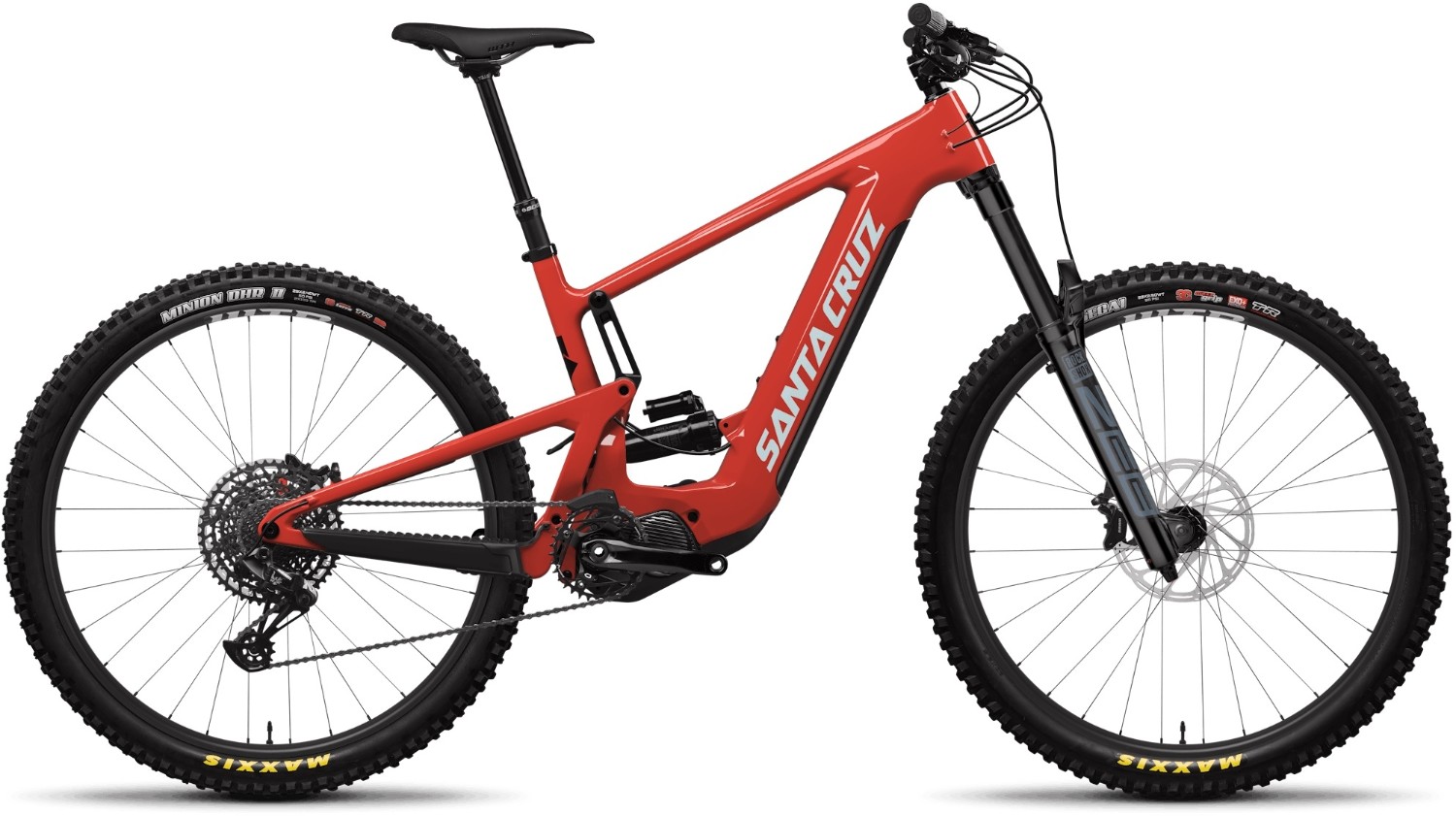

Santa Cruz Heckler 29 Carbon C R 2025 - Electric Mountain Bike
Tackle steep climbs and technical descents with confidence, knowing you have the power and range to explore even the most remote trails. The intuitive handlebar switch allows you to easily adjust between assist modes, while the Shimano E-Tube Project app lets you fine-tune your ride preferences wirelessly. With its lightweight Carbon C frame and responsive suspension components, the Heckler offers a smooth and agile ride that inspires confidence on any terrain.
Key Features:
- Carbon C frame ensures lightweight yet durable construction.
- Rockshox Zeb Base or Lyrik Base fork with 160mm travel for smooth handling.
- Rockshox Super Deluxe Select rear shock provides responsive suspension.
- SRAM NX Eagle drivetrain offers precise shifting across 12 speeds.
- SRAM DB8 hydraulic brakes deliver reliable stopping power.
- WTB ST i30 TCS 2.0 29" rims with Maxxis Assegai and Minion tyres for exceptional traction.
- Removable 720Wh battery for extended range.
- Available with 0% APR finance
Drive Information:
- Motor: Shimano EP801 drive unit provides 85Nm torque and peak power up to 600 Watts.
- Battery: Darfon 720Wh integrated battery for long-lasting performance.
- User Interface: Four assist modes (Walk, Eco, Trail, Boost) accessible via handlebar switch, with customization options through the Shimano E-Tube Project app.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Fork | RockShox Zeb Base, 160mm -or- Rockshox Lyrik Base |
| Rear Shock | RockShox Super Deluxe Select, 210x55 |
| Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated |
| Stem | e.13 Base |
| Bars | e13 TRS Base |
| Front Brake | SRAM DB8 |
| Rear Brake | SRAM DB8 |
| Rear Mech | SRAM NX Eagle, 12spd |
| Shifters | SRAM NX |
| Speed | 12 |
| Rims | WTB ST i30 TCS 2.0 29" |
| Front Hub | SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h |
| Rear Hub | RAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Front Tyre | Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+ |
| Rear Tyre | Maxxis Minion 29x2.4" 3C MaxxTerra, Double Down |
| Seat Post | SDG Tellis Dropper, 31.6 |
| Saddle | WTB Silverado, CroMo |
| Chainset | Shimano EM600 Crank Arms 165mm |
| Chain | SRAM NX Eagle, 12spd |
| Battery Size (WH) | Darfon 720 Wh Integrated Battery |
| Motor | Shimano Drive Unit DU-EP801 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
