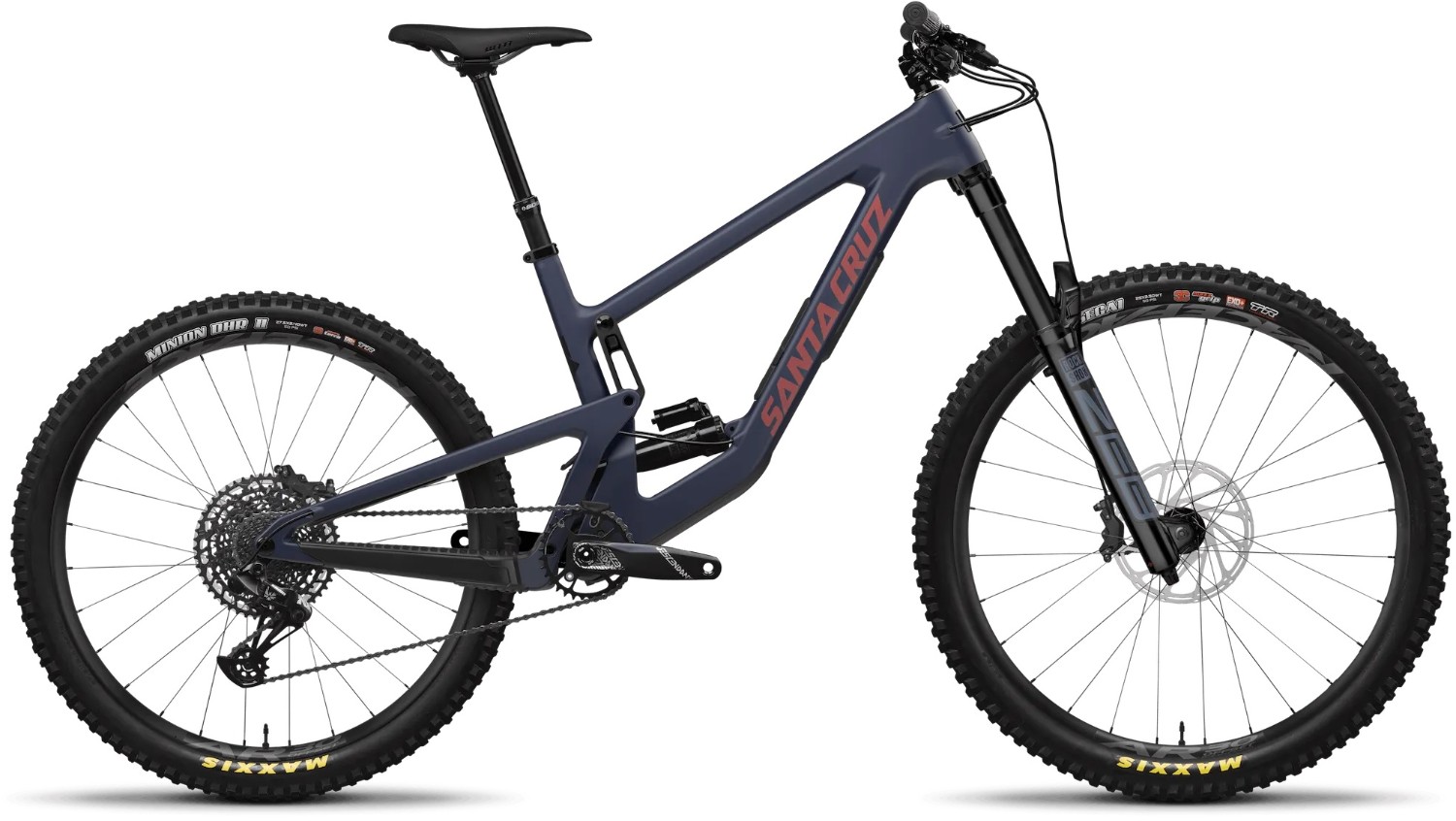

Santa Cruz Nomad Carbon C R Mountain Bike 2024 - Enduro Full Suspension MTB
Key Features:
- Carbon C with proportional geometry for all sizes and full control
- Rockshox Zeb Base fork with 170mm travel for precise handling
- Rockshox Super Deluxe Select shock for comfort off-road
- SRAM NX Eagle 12-speed drivetrain for reliable shifting
- SRAM G2 RE hydraulic disc brakes for confident braking
- Maxxis Minion and Assegai tyres for maximum grip
- Available with 0% APR finance
Occasionally, without notice, manufacturers change product design and/or specifications.
| Fork | RockShox Zeb Base, 170mm |
| Rear Shock | RockShox Super Deluxe Select, 230x65 |
| Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated |
| Stem | e.13 Base |
| Bars | e13 TRS Base |
| Front Brake | SRAM G2 RE, Avid Centerline, 200mm |
| Rear Brake | SRAM G2 RE, Avid Centerline, 200mm |
| Brake Lever | Sram G2 RE |
| Rear Mech | SRAM NX Eagle, 12spd |
| Shifters | Sram NX Eagle, 12spd |
| Speed | 12 |
| Rims | RaceFace AR Offset 30, 29" |
| Front Hub | SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h |
| Rear Hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Front Tyre | Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+ |
| Rear Tyre | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Seat Post | SDG Tellis Dropper, 31.6 |
| Saddle | WTB Silverado, CroMo |
| Chainset | SRAM Descendant Eagle 148 DUB 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | SRAM NX Eagle, 12spd |
| Cassette | SRAM PG1230, 12spd, 11-50t |
Santa Cruz Nomad 2024 Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
S |
155 – 165cm |
5’1” – 5’5” |
|
M |
165 – 175cm |
5’5” – 5’9” |
|
L |
175 – 185cm |
5’9” – 6’1” |
|
XL |
185 – 193cm |
6’1” – 6’4” |
|
XXL |
193 - 201cm |
6'4" - 6'7" |
Santa Cruz Bike Sizing Tips
If you're on the cusp between the recommended height range of two sizes, then you choose the size based on your personal preference.
A larger size frame will be more stable and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Another thig to consider is that not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Santa Cruz Nomad 2024 Geometry
|
Size |
S |
M |
L |
XL |
XXL |
|
Reach | hi/lo |
430/427 |
455/452 |
475/472 |
495/492 |
520/517 |
|
Stack | hi/lo |
616/618 |
625/627 |
638/640 |
656/658 |
670/672 |
|
Head Tube Angle | hi/lo |
63.8°/63.5° |
63.8°/63.5° |
63.8°/63.5° |
63.8°/63.5° |
63.8°/63.5° |
|
Seat Tube Length | hi/lo |
380 |
405 |
430 |
460 |
500 |
|
Front Center | hi/lo |
770 |
799 |
826 |
855 |
886 |
|
BB Height | hi/lo |
346/343 |
346/343 |
346/343 |
346/343 |
346/343 |
|
BB Drop | hi/lo |
27/30 |
27/30 |
27/30 |
27/30 |
27/30 |
|
Wheelbase | hi/lo |
1209/1209 |
1239/1240 |
1269/1270 |
1301/1302 |
1336/1337 |
|
Rear Centre | hi/lo |
439/440 |
440/441 |
443/444 |
446/447 |
450/451 |
|
Head Tube Length | hi/lo |
90 |
100 |
115 |
135 |
150 |
|
Top Tube Length | hi/lo |
570/571 |
594/594 |
612/613 |
637/638 |
666/667 |
|
Seat Tube Angle | hi/lo |
77.2°/77.0° |
77.4°/77.2° |
77.9°/77.6° |
77.8°/77.5° |
77.7°/77.5° |
|
Standover Height | hi/lo |
709/705 |
716/713 |
723/719 |
722/717 |
725/720 |
- All units are in millimetres or degrees.
