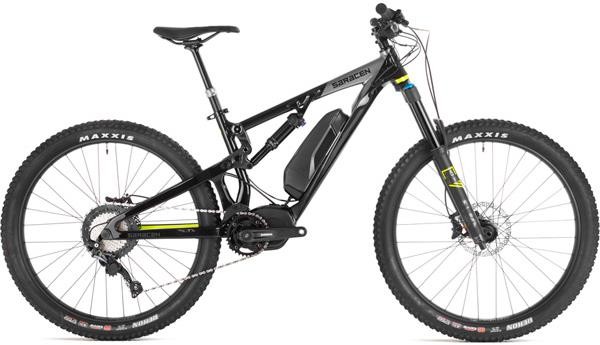

Saracen Ariel E 27.5" 2018 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 custom butted and hydroformed 6013 alloy front triangle / Toray UD carbon swingarm / ZS44-ZS56 tapered headtube |
| Fork | Fox 36 Float Performance / 160mm travel / GRIP 3-pos damper / 3 position adjust / tapered steerer / 15QRx110 Boost |
| Rear Shock | Fox Float DPS Performance / EVOL / 3 position adjust |
| Headset | PT-F13 |
| Stem | Saracen 6061 CNC alloy / 45mm / A-head / 0 degree rise / 31.8mm clamp |
| Bars | Saracen OS 6061 DB alloy riser bar / 780mm wide / 25mm rise / 5 degree up bend / 9 degree back bend |
| Front Brake | Shimano M6000 180mm |
| Rear Brake | Shimano M6000 180mm |
| Brake Lever | Shimano M6000 |
| Rear Mech | Shimano SLX M7000 Shadow Plus |
| Shifters | Shimano SLX M7000 Rapidfire Plus |
| Speed | 11 |
| Rims | WTB Scraper i35 27.5 |
| Front Hub | Formula DC-711 Boost sealed bearing 32h / Saracen Taper-Lock axle |
| Rear Hub | Formula DCL-348S sealed bearing 32h / Saracen Taper-Lock axle |
| Spokes | Double-butted stainless steel |
| Front Tyre | Maxxis Forekaster EXO/TR 27.5 x 2.6" |
| Rear Tyre | Maxxis Forekaster EXO/TR 27.5 x 2.6" |
| Seat Post | JD YSP07L dropper post / 150mm travel / internal cable routing / 30.9mm (125mm on S size) |
| Chainset | Shimano E8000 32T / 170-175mm |
| Bottom Bracket | Shimano BB-E8000 |
| Chain | KMC X11 |
| Cassette | Shimano M7000 11 speed cassette 11-46T |
| Pedals | Alloy MTB |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Saracen Ariel E 27.5" 2018 - Electric Mountain Bike.
This product is no longer available.
