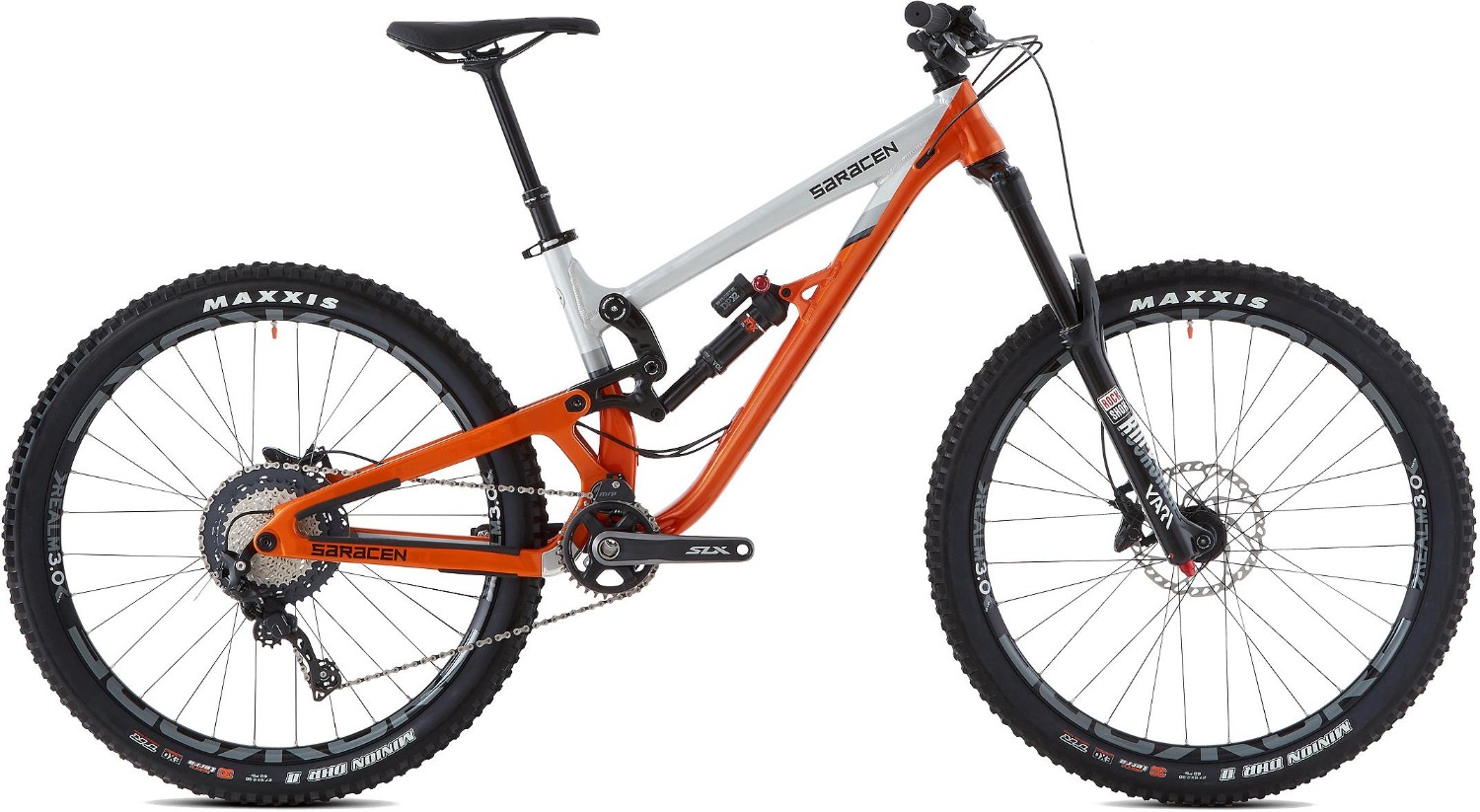

Saracen Ariel Elite 27.5" Mountain Bike 2019 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 custom butted and hydroformed 6013 alloy front triangle / Toray UD carbon swingarm / ZS44-ZS56 tapered headtube / 37mm main pivot bearings / 28mm linkage bearings |
| Fork | Rockshox Yari RC / 170mm travel / DebonAir / tapered steerer / low-speed compression / rebound adjust / 15x110 / Maxle Stealth |
| Rear Shock | Fox Float DPX2 Performance / EVOL / 3 position adjust |
| Headset | Prestine PT-F13 |
| Stem | Saracen 6061 CNC alloy / 45mm / A-head / 0 degree rise / 31.8mm clamp |
| Bars | Saracen OS 6061 DB alloy riser bar / 780mm wide / 15mm rise / 5 degree up bend / 9 degree back bend |
| Front Brake | Shimano M501 180mm / dual-piston caliper |
| Rear Brake | Shimano M501 180mm / dual-piston caliper |
| Brake Lever | Shimano M501 |
| Front Mech | MRP 1x V3 |
| Rear Mech | Shimano Deore XT M8000 Shadow Plus |
| Shifters | Shimano SLX M7000 Rapidfire Plus 1x11 speed |
| Speed | 11 |
| Rims | Kore Realm 3.0 32h / UST tubeless compatible |
| Front Hub | Formula DC-711 Boost sealed bearing 32h |
| Rear Hub | Formula DCL-348S sealed bearing 32h/Saracen Taper-Lock axle |
| Spokes | Double-butted stainless steel |
| Front Tyre | Maxxis Minion DHR II 3C/EXO/TR / 27.5 x 2.3" |
| Rear Tyre | Maxxis Minion DHR II 3C/EXO/TR / 27.5 x 2.3" |
| Seat Post | X-Fusion Manic / 150mm travel / internal cable routing / 30.9mm (125mm on S size) |
| Saddle | Kore Fuze II |
| Chainset | Shimano SLX M7000 32T / Boost / 170-175mm |
| Bottom Bracket | Shimano BB-MT800B |
| Chain | KMC X11 |
| Cassette | Shimano M7000 11 speed cassette 11-46T |
| Pedals | Alloy MTB |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
