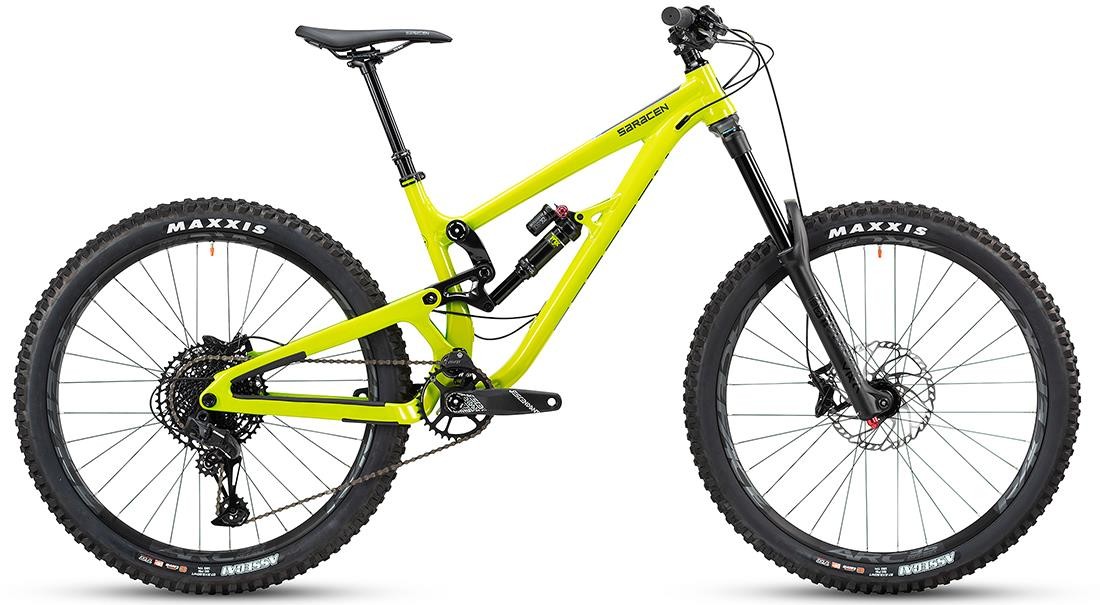

Saracen Ariel Elite 27.5" Mountain Bike 2020 - Enduro Full Suspension MTB
No Corners Have Been Cut To Deliver The Ariel Elite. An Affordable Race Ready Enduro Bike From The Get-go!
The Ariel Elite is a no-nonsense bike ready to rock! Using the same geometry as the Ariel LT, we paired our custom butted 6013 alloy front triangle with our Toray UD Carbon swingarm to create the perfect privateers race weapon. A mix of Sram NX Eagle and a Decendent’s 6K DUB Crank give you a 12-speed drivetrain and ensures you never skip a beat on the trail. 170mm Rockshox Yari fork together with a Fox Float DPX2 shock allow you to charge through the trail at whatever pace you choose. New Maxxis Assegai 2.5 tyres and full RaceFace finishing kits keep this Saracen firmly on the trail.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 custom butted and hydroformed 6013 alloy front triangle / Toray UD carbon swingarm / UD carbon linkage/ 12 x 148mm Boost dropout system / 165mm travel |
| Fork | Rockshox Yari RC / 170mm travel / DebonAir / tapered steerer / low-speed compression / rebound adjust / 15x110 / Maxle Stealth |
| Rear Shock | Fox Float DPX2 Performance / EVOL / 3 position adjust |
| Headset | Prestine PT-F13 |
| Stem | Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp |
| Bars | Raceface Chester / 780mm Wide / 20mm Rise / 35mm Bar Bore |
| Front Brake | Shimano MT501/203mm dual-piston caliper |
| Rear Brake | Shimano MT520/180mm dual-piston caliper |
| Brake Lever | Shimano MT501 |
| Front Mech | N/A |
| Rear Mech | SRAM SX Eagle / 12 Speed |
| Shifters | Sram SX Eagle / 1x12 Speed |
| Speed | 12 |
| Rims | Raceface ARC Offset / 32H / 27.5" |
| Front Hub | Formula DC-711 Boost sealed bearing 32h front / Formula DCL-348S sealed bearing 32h rear / Saracen Taper-Lock axle |
| Rear Hub | Formula DC-711 Boost sealed bearing 32h front / Formula DCL-348S sealed bearing 32h rear / Saracen Taper-Lock axle |
| Spokes | Double-butted stainless steel |
| Front Tyre | Maxxis Assegai WT/ 27.5 x 2.5 / 3C Maxxterra / exo+ / TR / front / rear |
| Rear Tyre | Maxxis Assegai WT/ 27.5 x 2.5 / 3C Maxxterra / exo+ / TR / front / rear |
| Seat Post | X-Fusion Manic / 150mm travel / internal cable routing / 30.9mm (125mm on S size) |
| Saddle | Saracen Custom CrMo MTB |
| Chainset | Sram Descendant 6K Eagle / 170mm |
| Bottom Bracket | Sram DUB BSA / 73mm |
| Chain | Sram SX 12 |
| Cassette | Sram PG1240 Eagle / 12 speed / 11-50T |
| Pedals | Alloy MTB |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Saracen Ariel Elite 27.5" Mountain Bike 2020 - Enduro Full Suspension MTB.
This product is no longer available.
