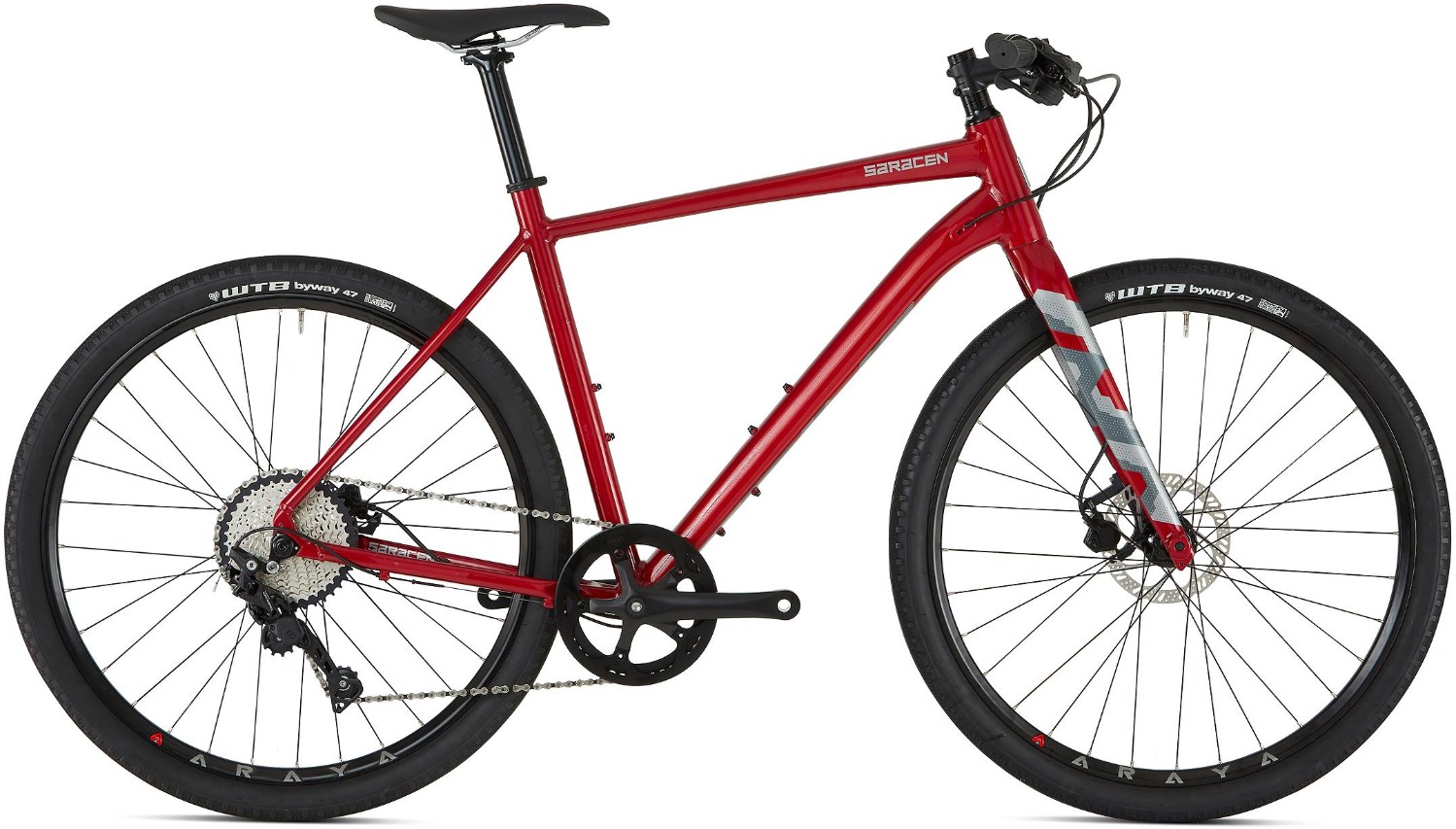

Saracen Levarg FB 2019 - Hybrid Sports Bike
Take the fastest route to work, not the smoothest....
We took our MTB DNA and moulded into a gravel bike... Using longer top tubes and shorter stems allows for a roomier cockpit, more centralised rider position on the bike and more direct steering input. 650b wheels come as standard but the frame can accommodate 700c wheels as well if you wish to change, with a recommended maximum tyre size of 50mm in 650b and 44mm in 700c respectfully. The Levarg FB (Flat Bar) is our commuter focused model and comes with Shimano 1x10 speed drivetrain and Tektro hydraulic disc brakes. WTB’s most dirt-focused tyre in the form of the ByWay (47C) allows riders to find comfort on remote gravel roads without feeling draggy on the paved roads!
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 custom butted and hydroformed 6061 alloy tubeset/IS42-IS52 tapered headtube/mudguard eyelets and rack mounts |
| Fork | UD carbon fork/alloy tapered steerer/mudguard eyelets/12x100 |
| Headset | FSA No.42/ACB |
| Stem | Saracen 6061 3D Forged Alloy - 7 Deg 31.8mm Clamp |
| Bars | Saracen OS 6061 DB alloy riser bar/720mm wide/12.7mm rise |
| Front Brake | Tektro RD-290 Hydraulic Disc 160mm |
| Rear Brake | Tektro RD-290 Hydraulic Disc 160mm |
| Brake Lever | Tektro RD-290 |
| Rear Mech | Shimano Deore M6000 Shadow Plus |
| Shifters | Shimano Deore M6000 Rapidfire Plus 1 x 10 |
| Speed | 10 |
| Rims | Araya DW-650 doublewall alloy 32h |
| Front Hub | Formula RX812 6 Bolt 12mm 32H |
| Rear Hub | Formula RX300 6 Bolt 12mm 32H |
| Spokes | Stainless steel 14g |
| Front Tyre | WTB Byway 650 x 47C |
| Rear Tyre | WTB DNA 650 x 47C |
| Saddle | Saracen custom road |
| Chainset | Prowheel/Saracen Custom 44T 170-175mm |
| Bottom Bracket | CH52 sealed cartridge |
| Chain | KMC X10-1 |
| Cassette | Shimano Deore CS-HG500 10 Speed 11-42T |
| Pedals | Basic Resin Flat |
Typical Hybrid Bike Sizing Chart
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Hybrid Bike Sizing Chart
|
Height |
Bike size (cm) |
bike size (Inch) |
|
4’8” – 5’1” 143 – 155 cm |
44 – XXS |
13” – XXS |
|
5’1” – 5’4” 155 – 163 cm |
48 – XS |
15” – XS |
|
5’4” – 5’7” 163 – 170 cm |
51 – S |
16” – S |
|
5’7” – 5’10” 170 – 178 cm |
54 – M |
18” – M |
|
5’10” – 6’0” 178 – 183 cm |
56 – L |
19” – L |
|
6’0” – 6’3” 183 – 191 cm |
58 – XL |
20” – XL |
|
6’3” – 6’5” 191 – 196 cm |
60 – XXL |
21” – XXL |
|
6’5” – 6’9” 196 – 205 cm |
62 - XXXL |
22” – XXXL |
